Garmin ECHOMAP Ultra 2 122sv Chartplotter 12 in.

The Garmin ECHOMAP Ultra 2 122sv Chartplotter features a bright 12-inch sunlight-readable touchscreen display packed with advanced fishfinding technology that’s easy to access and use. Both models come preloaded with a Worldwide Basemap for general reference and support upgrades to Garmin Navionics Vision+ premium mapping (sold separately), adding high-resolution relief shading, satellite imagery, and other detailed features. The transducer bundle includes the GT56, delivering Garmin CHIRP traditional sonar along with Ultra High-Definition ClearVü and SideVü scanning sonars that provide remarkably clear views of structure, cover, and fish. High-contrast, vivid color palettes make it simple to identify targets and interpret sonar returns.

The ECHOMAP Ultra 2 series functions as an all-in-one chartplotter and sonar system, fully compatible with Garmin LiveScope live-scanning sonar products and Navionics Vision+ mapping upgrades. It wirelessly shares sonar, waypoints, and routes between compatible ECHOMAP Ultra 2 units, and includes multi-band GPS and NMEA 2000 network support for seamless connectivity. Through the ActiveCaptain app, anglers can manage maps, software updates, and device settings directly from a mobile device. The unit also pairs wirelessly with the Garmin Force trolling motor and features a quick-disconnect bail mount for easy installation or removal. With its blend of mapping power, sonar clarity, and smart connectivity, the ECHOMAP Ultra 2 122sv gives anglers the precision and control needed to make the most of every trip on the water.

• General
  • Dimension: 13.4" x 9.0" x 3.9" (34.1 x 22.9 x 9.8 cm)
  • Weight: 5.5 lbs (2.5 kg)
  • Waterproof: IPX7
  • Touchscreen: Yes
  • Display Type: WXGA, IPS
  • Display size: 10.3" x 6.4"; 12.1" diagonal (26.1 x 16.3 cm; 30.7 cm diagonal)
  • Display resolution: 1280 x 800 pixels
  • Mounting options: Bail or flush
  • Input: Touchscreen with Keyed Assist
• Maps & Memory
  • Accepts data cards: 2 microSD cards
  • Waypoints: 5000
  • Track points: 50,000
  • Tracks: 50 saved tracks
  • Navigation routes: 100
• Sensors
  • GPS: Yes
  • Glonass: Yes
  • Galileo: Yes
  • Beidou: Yes
  • Has built-in receiver: Yes
  • Receiver: 10 Hz
  • NMEA 2000 compatible: Yes
  • Supports WAAS
  • Supports multi-band, multi-constellation GPS: Yes
• Built-in Maps
  • Built-in auto guidance+: Yes
  • Garmin Navionics+ Inland & Coastal: Yes
  • Tide tables: Yes
• Optional Map Support
  • Bluechart G3: Yes
  • Bluechart G3 vision : Yes
  • LakeVü G3: Yes
  • LakeVü G3 Ultra: Yes
  • Garmin Navionics+: Yes
  • Garmin Navionics Vision+: Yes
  • Topo 100K: Yes
  • Standard Mapping: Yes
  • Garmin Quickdraw contours: Yes
• Chartplotter Features
  • AIS: Yes
  • DSC: Yes
  • Supports Fusion-Link compatible radios: Yes
  • ActiveCaptain compatible: Yes
  • Sailing Features
• Electrical Features
  • Power input: 9 to 18 VDC
  • Typical current draw at 12 VDC: 2.5 A
  • Maximum current draw at 12 VDC: 5.0 A
  • Maximum power usage at 10 VDC: 36 W
• Sonar Features
  • Displays sonar: Yes
  • Power output: 600 W
  • Traditional Sonar (Dual Frequency/Beam): built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
  • ClearVü: built-in 260/455/800/1000/1200 kHz
  • SideVü: built-in 260/455/800/1000/1200 kHz
  • Panoptix Sonar: Yes
  • LiveScope: Yes

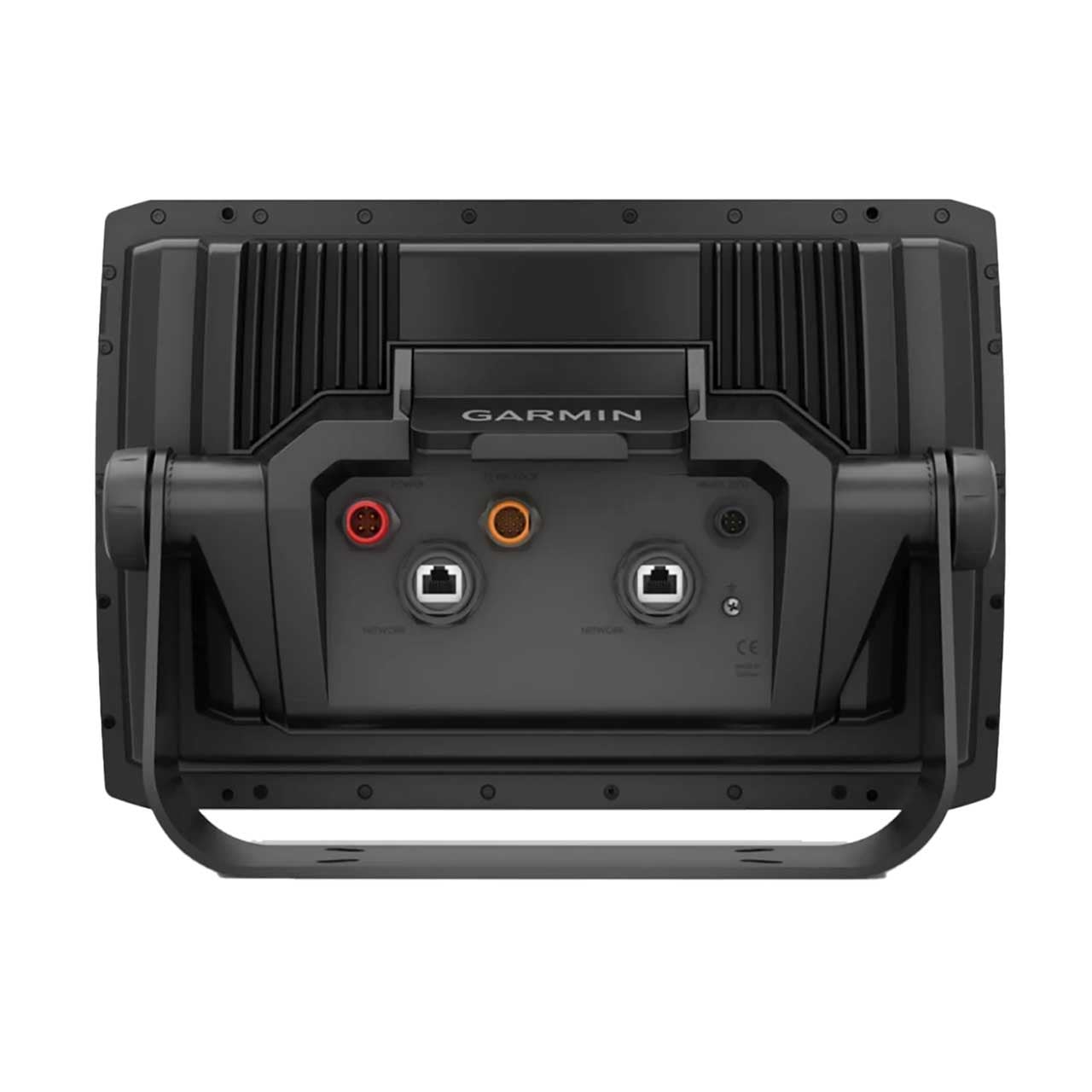

• Connections
  • NMEA 2000 ports: 1
  • Garmin Marine Network ports: 2 (large connector)
  • 12-PIN Transducer ports: 12-pin scanning sonar
  • ANT+ (connectivity): Yes
  • Garmin Wi-Fi network (Local connection): Yes
• In the Box with Transducer:
  • Part #: 010-02881-01
  • ECHOMAP Ultra 122sv with optional Garmin Navionics+
  • GT56UHD-TM transducer
  • Power/data cable
  • Bail mount with quick-release cradle
  • Protective sun cover
  • Hardware
  • Documentation
• In the Box without Transducer:
  • Part #: 010-02881-00
  • ECHOMAP 122sv with optional Garmin Navionics+
  • 8-pin transducer to 12-pin sounder adapter cable
  • Power/data cable
  • Bail mount with quick-release cradle
  • Protective sun cover
  • Hardware
  • Documentation
