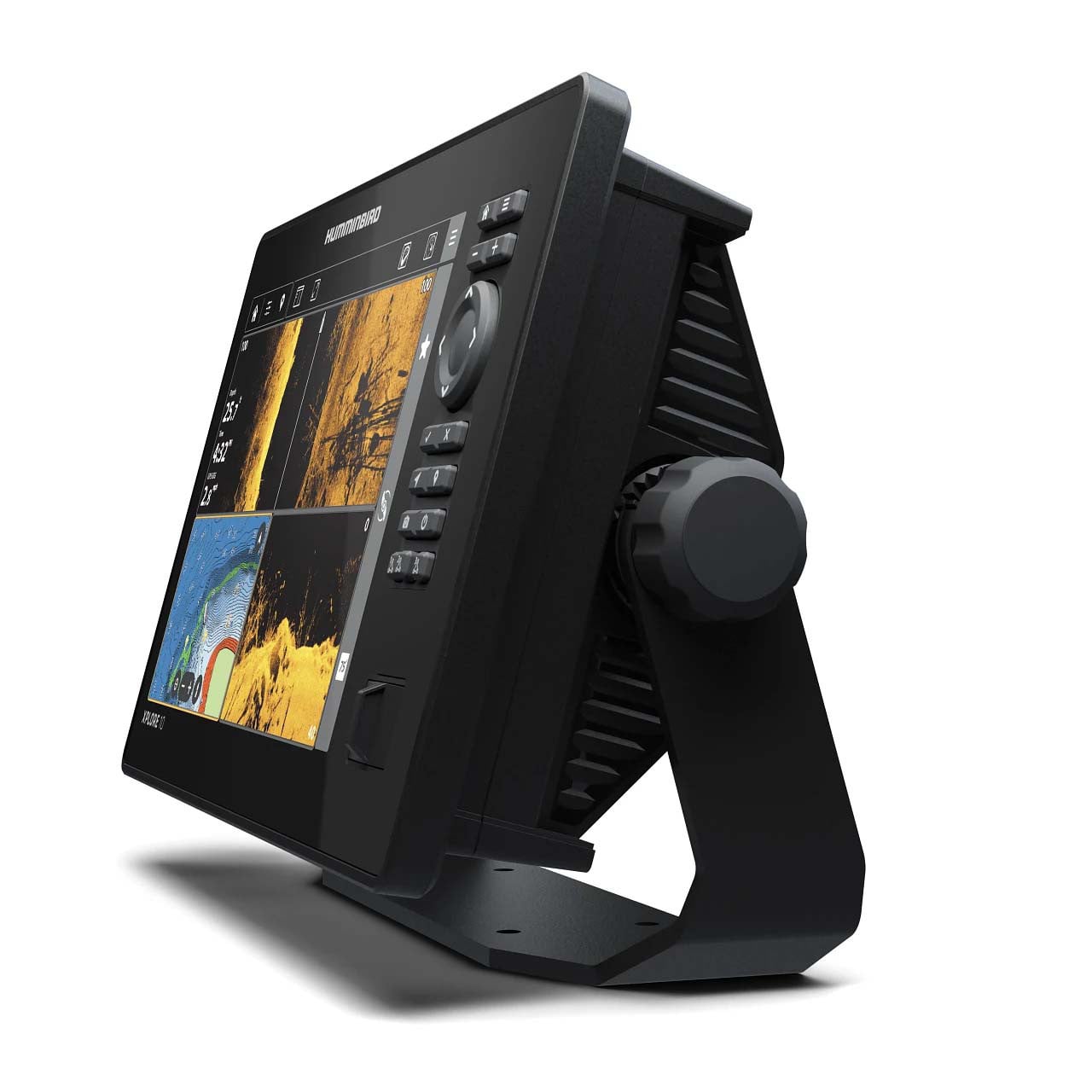

Humminbird XPLORE 12 CMSI+ Chartplotter Combo

The Humminbird XPLORE 12 CMSI+ Chartplotter Combo is a powerful, all-in-one solution for serious anglers, offering a range of advanced imaging, mapping, and navigation features. Equipped with a high-definition 1280x800 display and the intuitive Cross Touch interface, it provides stunning clarity for both sonar and chart images. With MEGA Side Imaging+ and MEGA Down Imaging+, this chartplotter delivers up to 200 feet of coverage to the sides and below your boat, giving you unparalleled underwater detail. Featuring 20% more detail and 60% more range and depth than standard MEGA Imaging, it helps you uncover more fish and structure. The Dual Spectrum CHIRP Sonar offers Wide Mode for maximum coverage and Narrow Mode for pinpoint precision, ensuring you never miss a fish or important structure.

Beyond its impressive imaging capabilities, the XPLORE 12 is designed to help you navigate with confidence. It includes a detailed Humminbird Basemap, featuring over 10,000 lakes and U.S. coastal coverage, and is compatible with premium mapping options like LakeMaster, CoastMaster, and Navionics. AutoChart Live lets you create custom, real-time maps of your fishing spots, while One-Boat Network compatibility seamlessly integrates with Minn Kota and Cannon products for optimized boat control. With high-speed Ethernet, Bluetooth, and NMEA 2000 networking, the XPLORE 12 ensures smooth operation and connectivity for enhanced fishing experiences. The CHO model (Control Head Only) provides the ultimate flexibility for connecting with Minn Kota motors with built-in MEGA Imaging, accessory transducers like MEGA 360 Imaging, or an existing Humminbird network, however this model does not include a transducer. The Humminbird XPLORE 12 CMSI+ delivers the cutting-edge technology and performance you need to enhance your time on the water and unlock more fish and structure than ever before.

• Full-HD 1280x800 display with Cross Touch interface for touchscreen or keypad control
• MEGA Side and Down Imaging+ with up to 200 feet of coverage, offering 20% more detail and 60% more range
• Dual Spectrum CHIRP Sonar in Wide and Narrow modes for detailed fish arches and bottom structure
• One-Boat Network compatible for integration with Minn Kota and Cannon products
• Ethernet, Bluetooth, and NMEA 2000 networking for high-speed connectivity and system integration
• Control Head Only (CHO) model provides flexibility for connecting to existing systems (does not include transducer)
• Specifications:
  • Display Size: Diagonal 12.1 in.
  • Display Pixel Matrix: 1280 x 800
  • Transducer Included: Model 412020-1 only XM 14 HW CMSI T
  • Memory Card Slot: Dual Micro SD
  • Sonar Standard: Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+
  • Sonar Optional: 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low
  • CHIRP - Frequencies Supported: NNarrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)
  • Sonar Frequencies Supported:50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA
  • Depth-Sonar:3,500 ft (optional 50 kHz), 1,200 ft (standard transducer)
  • CHIRP - Imaging Frequencies Supported: 455 kHz SI+ (405-505 kHz), 455 kHz (420-520 kHz), MEGA SI+ (1050-1175 kHz)
  • Depth-Down Imaging: 200 ft (MEGA), 400 ft (455 kHz)
  • Range-Side Imaging (Side-To-Side):800 ft (455 kHz), 400 ft (MEGA)
  • Interface: Touch Screen, Keypad Control
  • Power Input: 10.8-20 VDC
  • Power Output Peak-to-Peak: 8000 Watts
  • Power Output RMS: 1000 Watts
  • Mount-Standard: Gimbal
  • Mount-Optional: In-Dash Mounting Kit
  • Transducer Mount Location: Transom (Model 412020-1)
  • GPS Chartplotting: Included
  • GPS Receiver: Internal
  • GPS Trackplotting: Not Supported
  • Waypoints, Routes, Tracks/Points: 10,000, 50, 50/20,000
  • 360 Imaging Compatibility: Yes
  • MEGA Live Compatibility: Yes
  • Humminbird Basemap: Included
  • LakeMaster Compatibility: Yes
  • CoastMaster Compatibility: Yes
  • Navionics Gold/HotMaps Compatibility: Yes
  • Navionics Platinum+ Compatibility: Yes
  • Platinum Compatibility: Yes
  • Minn Kota Advanced GPS Navigation Compatibility: Yes
  • Minn Kota i-Pilot Link Compatibility: Yes
  • Minn Kota Talon Shallow Water Anchor Compatibility: Yes
  • Radar Compatibility: Yes
  • 5-Port Ethernet Switch Compatibility: Yes
  • AIS Compatibility:Not Supported
  • Autopilot Compatibility: No
  • Heading Sensor GPS Compatibility: No
  • NMEA2000: Included
  • Target Separation: 2.5 in
  • Upgradable Software: Yes
  • View Preset Keys: Yes
  • X-Press Menu System: Yes
  • Speed: Included
  • Temperature: Built In
  • Temperature Alarm: Yes
  • Temperature Graph: Yes
  • HDMI Compatible: No
• Manufacturers two-year warranty
• Quantity per pack: 1
