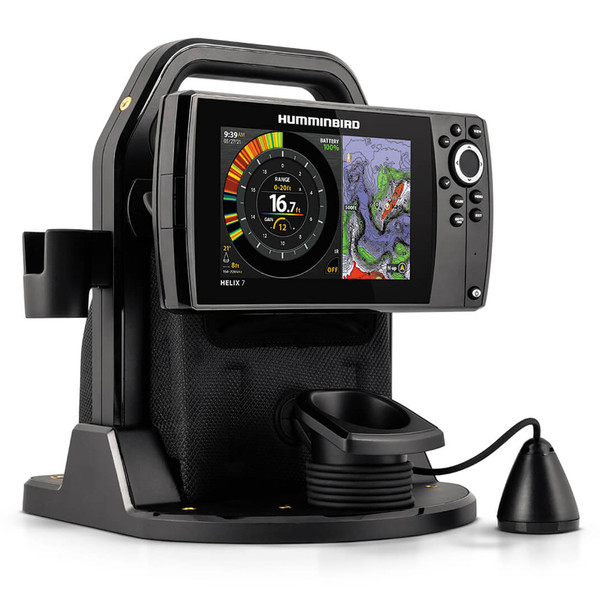

Humminbird Ice Helix 7 Chirp Sonar / GPS G4 Combo Fish Finder

The Humminbird Ice HELIX 7 CHIRP Sonar / GPS G4 Combo Fish Finder helps you find the best places to catch fish, on or off the ice! This full-featured fish finder comes equipped with Dual-Spectrum CHIRP Sonar and Interference Rejection, giving you a clear picture of the underwater world and creatures. This combo model also includes built-in GPS and Humminbird's Basemap with charts of over 10,000 lakes. Compatibility with LakeMaster and Navionics means you have the option to upgrade this unit with any additional maps you may need. The ICE HELIX 7 has been thoughtfully designed for ice anglers and you're sure to be impressed by AutoChart Live ICE technology, which creates one-foot contour maps showing reefs and drop-offs under the ice. This model comes with a premium shuttle, 15 Ah lithium battery, and protective silicone screen cover. See below the ice in full color and in incredible detail with the Humminbird Ice HELIX 7 CHIRP Sonar / GPS G4 Combo Fish Finder!

• CHIRP Digital Sonar
  • CHIRP stands for "Compressed High Intensity Radar Pulse." By covering a wide range of frequencies, CHIRP produces more accurate, more detailed returns of fish, structure, and the bottom.
• Dual-Spectrum CHIRP Sonar
  • See high-resolution returns of individual fish, bait, and structure on both the flasher and traditional 2D sonar views at greater depths and range, with target separation down to 3/4 in.
• CHIRP Interference Rejection
  • Adjusting the sonar frequencies with interference rejection helps prevent competing sonar signals from cluttering your screen. 6 settings provide a clear view in both sonar and flasher modes.
• Adjustable Sonar Zoom
  • Allows anglers to hone in on fish, whether they are tight to the bottom or suspended high in the water column. Utilize 2X zoom on the flasher screen or up to 16X zoom on 2D sonar view.
• Humminbird Basemap Built-In
  • Based on freshwater data from LakeMaster and NOAA, these maps provide a clear view of underwater terrain. Identify buoys, daymarkers, hazards, marinas, and countless other navigation aids and points of interest. You'll also see contours, depth markings, and, for coastal areas, spot soundings. Humminbird's enhanced standard Basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Includes charts of more than 10,000 lakes.

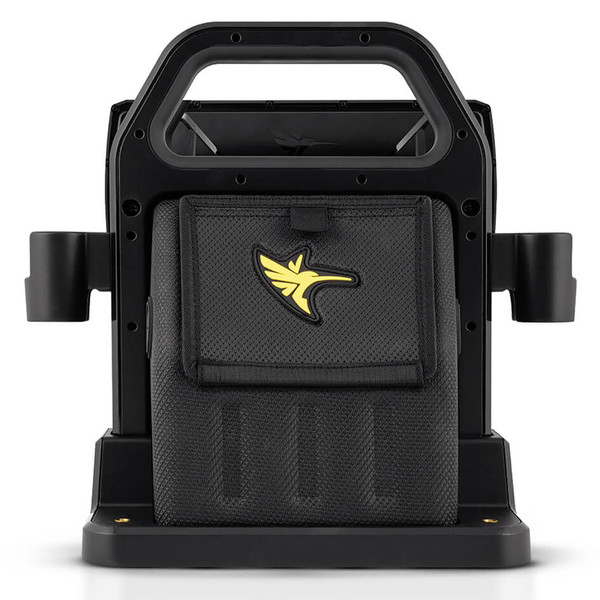

• Premium Shuttle
  • It has it all. Master power switch, quick-connect SAE power cables, large handle, multiple 1/4 in. - 20 mounting options for accessories, two rod holders, cable and transducer management, and a battery cover.
• Year-Round Capable
  • The ICE HELIX 7 CHIRP GPS G4 works with all compatible HELIX 7 CHIRP GPS G4 transducers. Simply install an accessory transducer, power cord, and gimbal mount on your boat, and you'll be ready to hit the water even after the ice melts. Sold separately.
• Internal Precision GPS Built-In
• Specifications:
  • Item Number: 411750-1
  • Series: ICE
  • Display Size Diagonal: 7 in.
  • Display Pixel Matrix: 1024 H x 600 V
  • Sonar Standard: Dual Spectrum CHIRP
  • Sonar Coverage: 15° and 21° at -3 dB
  • Sonar Optional: 50 kHz, 50/Low Airmar CHIRP
  • CHIRP Frequencies Supported: 50/200 (28 - 75 / 130 - 250 kHz), 83/200 (75 - 155 / 130 - 250 kHz), Full Mode (150 - 220 kHz), Narrow Mode (180 - 240 kHz), and Wide Mode (140 - 200 kHz)
  • Sonar Frequencies Supported: 50/80/200 kHz
  • Depth Sonar: 400 ft.
  • Interface: Keypad Control
  • Features: Dual-Spectrum CHIRP, Interference Rejection, Jig Charge Mode, Portable, Built-In GPS, Built-In Mapping, AutoChart Live ICE, and MEGA Live Imaging
  • Memory Card Slot: Single Micro SD
  • Compatible with: AIS and AutoPilot
  • Power Draw: 800 mA
  • Power Input: 10.8 - 20 VDC
  • Power Output Peak-to-Peak: 4000 W
  • Power Output RMS: 500 W
  • Screen Snap Shot: Included
  • Sonar Recording: Included
  • Mount Standard: Portable
  • Transducer Mount Location: Portable
  • GPS Chartplotting: Included
  • GPS Trackplotting: Included
  • LakeMaster Compatibility: Yes
  • CoastMaster Compatibility: Yes
  • SmartStrike Compatibility: Yes
  • Navionics Gold/HotMaps Compatibility: Yes
  • Navionics Platinum+ Compatibility: Yes
  • Platinum Compatibility: Yes
  • Heading Sensor GPS Compatibility: Yes
  • Upgradable Software: Yes
  • View Preset Keys: No
  • X-Press Menu System: Yes
  • Custom Digital Readout: Yes
  • Custom View Selections: Yes
  • Display Colors Grayscale: 16-Bit
  • Display Size: 5 - 7 in.
  • Speed: Included
  • Temperature: Built In
  • Temperature Alarm: Yes
  • Temperature Graph: No
  • Transducer Included: XI 9 1521
  • HDMI Compatible: No
  • MEGA Live Compatibility: No
• Manufacturer's one-year limited warranty
• Contains:
  • ICE HELIX 7 CHIRP GPS G4 fish finder
  • Dual Spectrum CHIRP ICE transducer
  • 15 Ah lithium battery with 2 USB ports and battery life indicator
  • Charger
  • ICE shuttle
  • Hardware
  • Quick-connect SAE power cables
  • Silicone screen cover

Please note: Once opened, the product cannot be returned, and if defective or damaged, it must be returned to the manufacturer for warranty repair or replacement.
