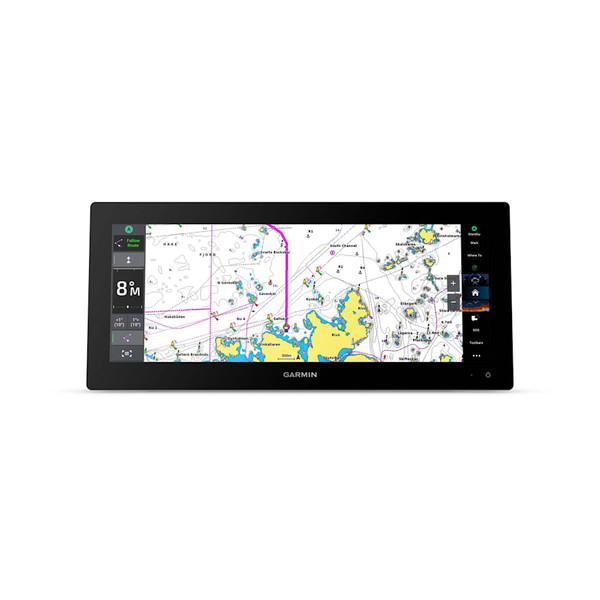

Garmin GPSMAP 1523xsv Chartplotter

The Garmin GPSMAP 1523xsv Chartplotter commands the helm with an ultrawide 15-inch in-plane switching IPS display that fits a range of layouts, including modern “floating display” configurations, while keeping charts, sonar returns, and radar overlays sharp and easy to interpret. Offering a sleek aesthetic in an ultrawide edge-to-edge glass format, this advanced 15-inch chartplotter expands your perspective at the helm with a screen that measures 74% wider and delivers more pixels than a standard 9-inch chartplotter for enhanced viewing clarity. Preloaded Garmin Navionics+ charts on select models help you follow contour breaks for walleye, set trolling paths for salmon, and navigate coastal structure with confidence. Built-in sonar capabilities (transducer required) show what sits below your boat, supporting detailed views of bait schools, rock piles, and ledges, while advanced network connectivity links radar, autopilot, cameras, and multiple displays into one integrated marine system. Digital switching and OneHelm integrations connect compatible third-party devices through a unified interface, while remote access tools let you manage and monitor your marine experience from nearly anywhere.

• Ultrawide 15 in. IPS edge-to-edge glass display with 74% wider viewing area than a 9 in. unit
• Preloaded Garmin Navionics+ charts on select models for inland and coastal navigation
• Built-in sonar capabilities for detailed underwater views (transducer required)
• Advanced networking with digital switching, OneHelm integration, and remote connectivity
•  Specifications:
  • 15 in. ultrawide display size
  • Weight: 7.2 lbs
  • 15 3/10 x 7 1/50 x 3 3/10 in.
  • Water rating: IPX7
  • Display type: Ultrawide display, IPS
  • Display resolution: 1920 x 720 pixels
  • Display size: 13.6 x 5.1 in.; 14.5 in. diagonal
  • Mounting options: Bail, flush, or flat (Garmin does not offer any hardware or accessories for a flat-mount installation; professional tools and knowledge are required.)
  • Polarized lens viewability
• Maps and Memory:
  • Accepts 2 microSD cards (back of device)
  • Compatible with Garmin SD card reader
  • 5000 waypoints
  • 50000 track points
  • 50 saved tracks
  • 100 navigation routes
• Sensors:
  • GPS
  • GLONASS
  • Galileo
  • Has built-in 10Hz receiver
  • NMEA 2000 Compatible
  • NMEA 0183 Compatible
  • Supports WAAS
  • Supports multi-band, multi-constellation GPS (with external GPS antenna)
• Optional map support:
  • BlueChart g3
  • BlueChart g3 Vision
  • LakeVü g3
  • LakeVü g3 Ultra
  • Garmin Navionics+
  • Garmin Navionics Vision+
  • TOPO 100K
  • Standard Mapping
  • Garmin Quickdraw Contours
  • Raster chart support
• Chartplotter features:
  • Smart Mode compatible
  • AIS
  • DSC
  • Supports Fusion-Link compatible radios
  • GSD Black Box Sonar Support
  • GCV Black Box Sonar Support
  • ActiveCaptain compatible
  • Supports voice commands (with external accessory)
  • GRID (Garmin Remote Input Device) compatible
  • Wireless Remote compatible
  • Sailing features
  • Spoken audio alerts
  • OneHelm support
• Electrical features:
  • Power input: 10 to 32 Vdc
  • Typical current draw at 12 Vdc: 2.44 A
  • Maximum current draw at 12 Vdc: 4.21 A
  • Maximum power usage at 10 Vdc: 56.93 W
• Sonar features:
  • Power output: 1 kW
  • Traditional sonar (dual frequency/beam)
  • SideVü
  • ClearVü
  • Panoptix sonar
  • LiveScope
• Connections:
  • 1 NMEA 2000 ports
  • 1 NMEA 0183 Input (Rx) Ports
  • 1 NMEA 0183 output (Tx) ports
  • Video input ports: 1 (BNC composite)
  • 1 J1939 ports
  • 2 Garmin Marine Network Ports
  • 1 12-pin transducer ports
  • USB ports
  • Bluetooth pairing
  • ANT (Connectivity)
  • Garmin Wi-Fi network (local connection)
• In the box:
  • GPSMAP 1523xsv ultrawide chartplotter
  • MicroSD card preinstalled
  • Power cable
  • Thin flush mount kit with gasket
  • Protective cover
  • 8-pin transducer to 12-pin sounder adapter cable
  • 2 m backbone/drop cable and T-connector for NMEA 2000 Network
  • Documentation
• Manufacturer's one-year warranty
