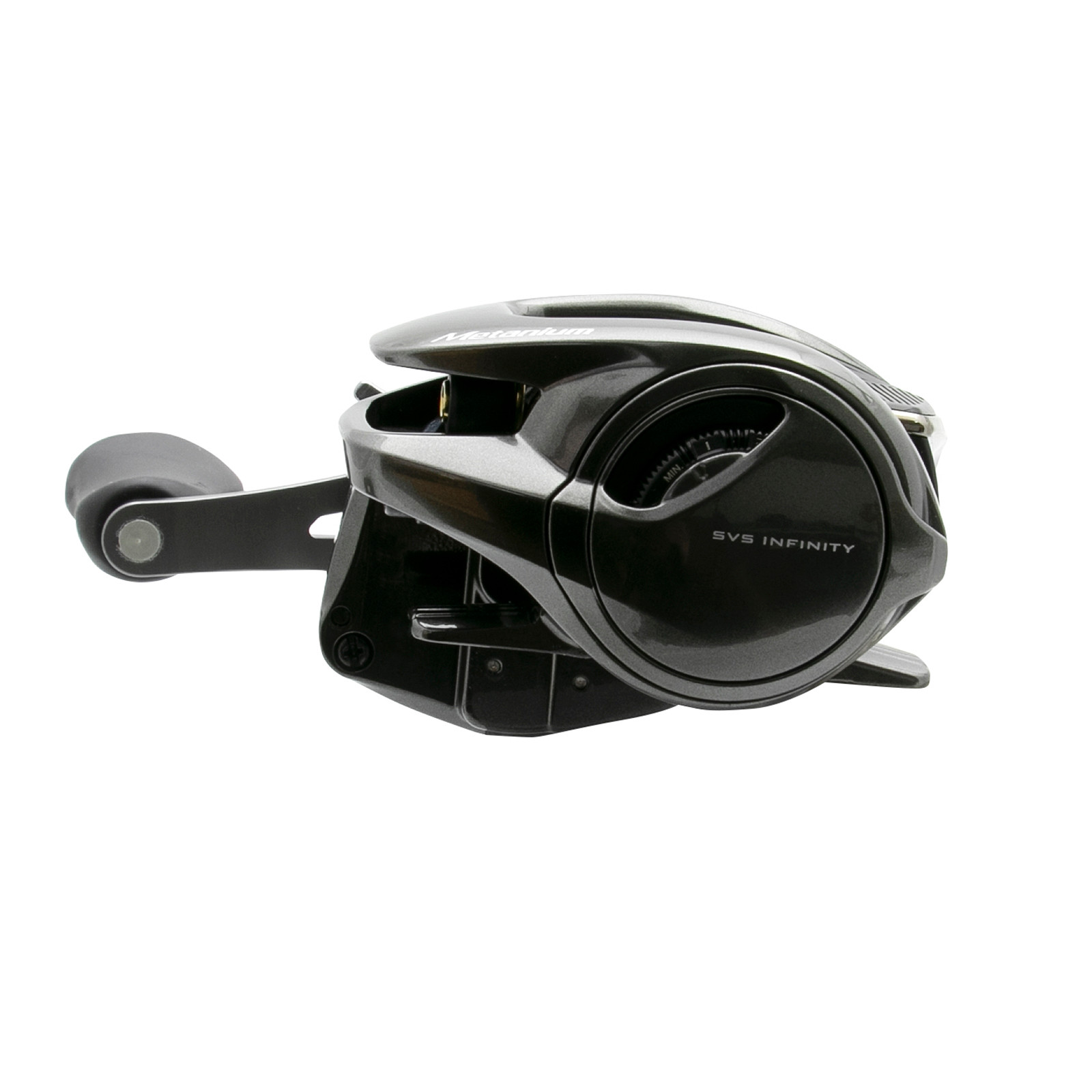

Shimano Metanium MGL B Casting Reel
Shimano is always pushing the boundaries of advancements in their reels, and the Shimano Metanium MGL B Casting Reel is no different! This reel is made from a never seen before magnesium core solid body. This magnesium body offers a significant advantage in the durability and rigidity of the reel while keeping it impressively lightweight! The body of the reel is designed to be stiff, which helps to put all the power into reeling. Shimano's X-Ship improves gear durability while also eliminating friction between the spool shaft and the gears, which means you can cast further! The Shimano Metanium MGL B Casting Reel is taking casting reels to an entirely new level!
- CI4+ is an advanced version of the original CI4. This highly technical carbon material maintains 2.5 times more rigidity than CI4. While improving lightness and rigidity, the body and rotor are further reduced in size and weight.
- HAGANE Body
- The HAGANE Body is a metal reel body with high rigidity. The body stiffness and impact resistance virtually eliminates body flexing. The result transforms the angler's actions directly into cranking power. It's efficiency through strength.
- Micro Module Gear
- The Micro Module Gear System creates a smooth retrieve. The new gear set makes use of smaller teeth and more of them. This means that there are more contact points between the drive gear and pinion gear. The result is a more efficient gear train with less gear feel.
- Core Solid Body
- Core Solid Body integrates the B-Side Plate, level wind guard and frame into a solid once piece construction. This delivers an unprecedented feeling of rigidity and sensitivity, and is the first design of this type in a low profile baitcast reel.
- X-SHIP provides improved gear durability. By supporting the pinion gear on both ends with bearings, the pinion gear maintains precise alignment with the drive gear. This means the gears will stay in the same position under the heaviest loads. The added benefit is that friction between the spool shaft and gear are eliminated. This will enhance the casting performance of the reel with lighter lures, and allow for longer casts.
- Silent Drive
- From the fundamental, whole body design to the most intricate parts of the drive train, including the drive gear, wormshaft, wormshaft pin and wormshaft gear, every piece has been carefully reviewed, and the smallest clearance gaps and wobbles have been eliminated to the highest tolerances.
- MGL III Spool
- The MGL III Spool is an ultra-thin spool that thoroughly pursues low inertia. The spool has a reduction in inertia by about 15% compared to the second-generation MGL Spool by using a narrow shape with a width of 19 mm for the outer diameter of 34 mm. Resulting in unparalleled casting performance.
- SVS Infinity
- Shimano's newest innovation in brake system technology, SVS Infinity provides easy-to-manage, consistent spool control and brake force. With brake weights that use inner friction against the raceway during the cast, SVS Infinity controls spool speed for precision casting especially when using lighter lures. The external adjustment knob provides for quick, precise adjustments for either the conditions or when you switch baits.
- Cross Carbon Drag
- This drag material provides a wider range of drag settings, along with the smoothest Shimano drag performance ever.
- S3D Shimano Stable Spool Design
- Shimano's S3D technology leads to significantly reduced spool vibration. By designing a balanced and uniform thin wall aluminum constructed spool, S3D creates an incredibly smooth feeling when casting and retrieving lures.
- SF Super Free Spool
- SF was designed to eliminate friction on the spool shaft during the cast. In standard baitcasting reels, when the clutch bar is pressed down, the pinion gear is freed and actually can drag on the spool shaft creating friction that can limit the length of a cast. With SF the pinion gear is supported by a ball bearing so that when the clutch is disengaged in preparation for a cast, the pinion gear and spool shaft are kept in perfect alignment. The result is zero friction upon the spool shaft.
- S A-RB
- These bearings have been through the same process as Shimano's A-RB bearings, but feature shields on both sides of the bearings that reduce the possibility of salt or sand inhibiting the bearing's rotation.
