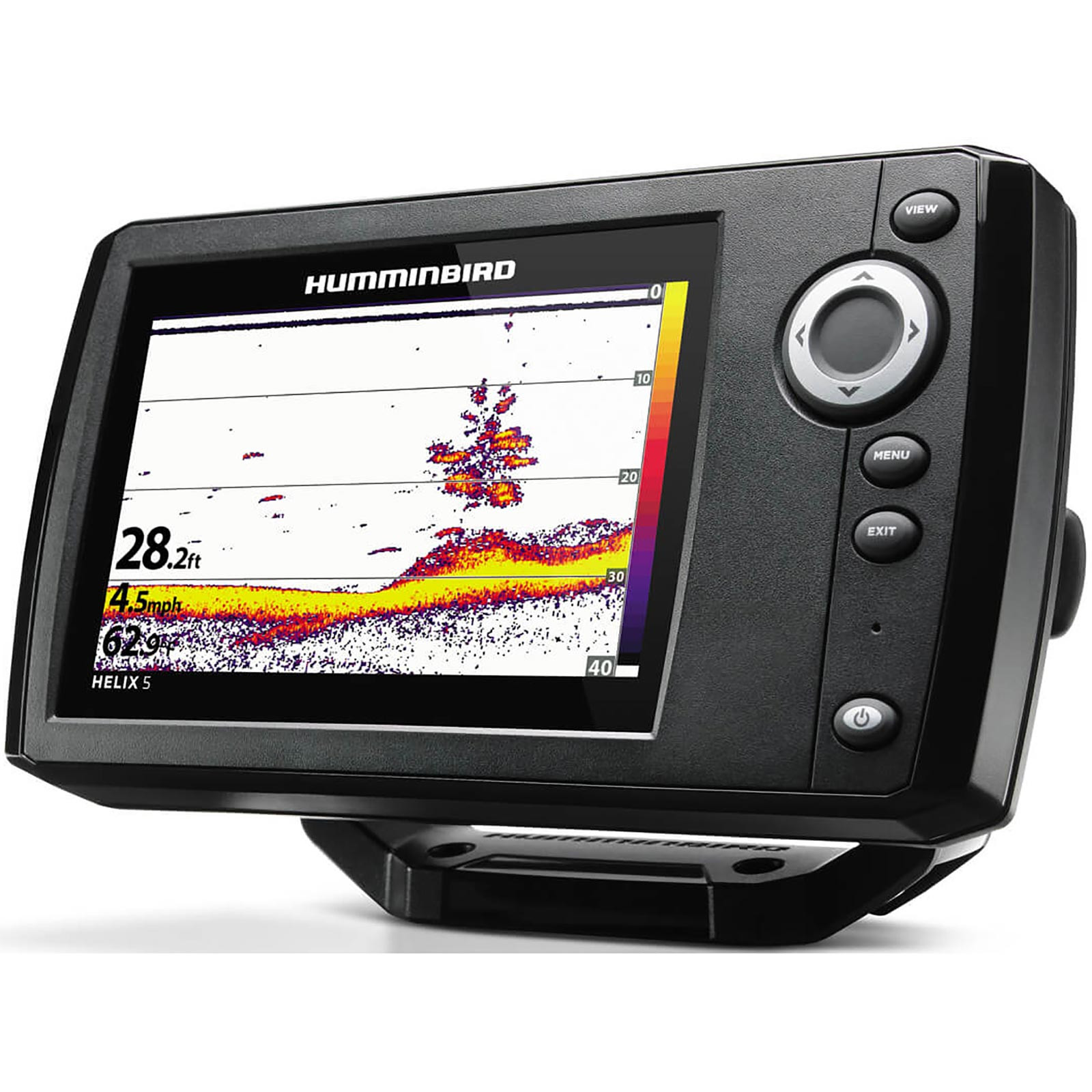

Humminbird Helix 5 DI G2 Fish Finder

Item#: 195241

Orders over $59 ship for free. Details

Ships From Manufacturer

1 In Stock

Product Details

The Humminbird Helix 5 DI G2 Fish Finder provides a clearer view of what's beneath your boat with Down Imaging! This Helix model comes with SwitchFire Sonar, which allows you to switch between display models and easily add or remove detail. This feature also allows you to view and account for water depth, temperature, and lure presentations! In addition, this fish finder features Dual Beam PLUS Sonar, which combines two beams for both detail and coverage area. The Helix 5 is sized just right: the five-in. screen won't get in the way, while the widescreen display shows all the information you need for your next fishing venture. If you're looking for a fish finder that meets high expectations within a budget, the Humminbird Helix 5 DI G2 Fish Finder has got you covered!

  • Item Number: 410200-1
  • Series: HELIX
  • Diagonal Display Size: 5 in.
  • Display Matrix: 800 x 480 px
  • Sonar Coverage: 16, 28, 45, and 75 deg at -10 dB
  • Sonar Frequencies Supported: 200, 455, and 800 kHz
  • Sonar Depth: 600 ft. (standard transducer)
  • Down Imaging Depth: 350 ft.
  • Interface: Keypad control
  • Features: Down Imaging
  • Memory Card Slot: None
  • Compatible with AIS and AutoPilot
  • Power Draw: 615 mA
  • Power Input: 10.8-20 VDC
  • Power Output: 4000 W (Peak-to-Peak) and 500 W (RMS)
  • Screen Snap Shot: Not Supported
  • Sonar Recording: Not Supported
  • Standard Mount: Gimbal
  • Standard Mount Size: 7.55 x 4.64 x 3.3 in.
  • Optional Mount Size: 7.55 x 4.28 x 1.13 in.
  • Transducer Mount Location: Transom
  • GPS Chartplotting: Not Supported
  • GPS Tracking: Not Supported
  • LakeMaster Compatibility: No
  • Coast Master Compatibility: No
  • Navionics Gold/HotMaps Compatibility: No
  • Navionics Platinum + Compatibility: No
  • Platinum Compatibility: No
  • Heading Sensor GPS Compatibility: No
  • Upgradable Software: Yes
  • View Preset Keys: No
  • X-Press Menu System: Yes
  • Custom Digital Readout: yes
  • Custom View Selections: Yes
  • Display Colors Grayscale: 16-bit
  • Display Size: 5 - 7 in.
  • Optional Speed
  • Temperature built in with Alarm
  • Temperature Graph: No
  • Transducer: XNT 9 DI T
  • HDMI Compatible: No
  • MEGA Live Compatibility: No
  • UPC: 0082324049019
  • Technologies:
    • SwitchFire
      • SwitchFire adds a whole new dimension to 2D fish-finding with two unique display modes: Clear Mode and Max Mode. You are in charge of how the sonar returns appear. You can add or remove detail and account for water depth, temperature, and turbulence. Clear Mode is great for waters that are rough or shallow (eight ft. or less), delivering noise-free returns for clearer images of fish and structure. Max Mode offers maximum detail, showing you structure, fish, and even thermoclines and water currents. You can also see bait and your jigging action to help improve your lure presentation.
    • Down Imaging
      • Get a clear view of what's happening below your boat with Down Imaging. As you patrol the water, you'll watch timber, brush, bridge pilings, rocks, and any other structure pop with great detail.
    • Dual Beam PLUS Sonar
      • Two beams combine for great detail and a generous coverage area, helping you identify fish, structure, and contours. Use the narrow beam for high-accuracy returns of fish, structure, detail, and the bottom profile. Opt for the wide beam when you want a larger search area. You can view the beams separately, side by side, or blended together for the complete picture. Your coverage area will be equal to your depth.
  • Manufacturer's one-year limited warranty

The Humminbird Helix 5 DI G2 Fish Finder is assembled in the U.S.A.
