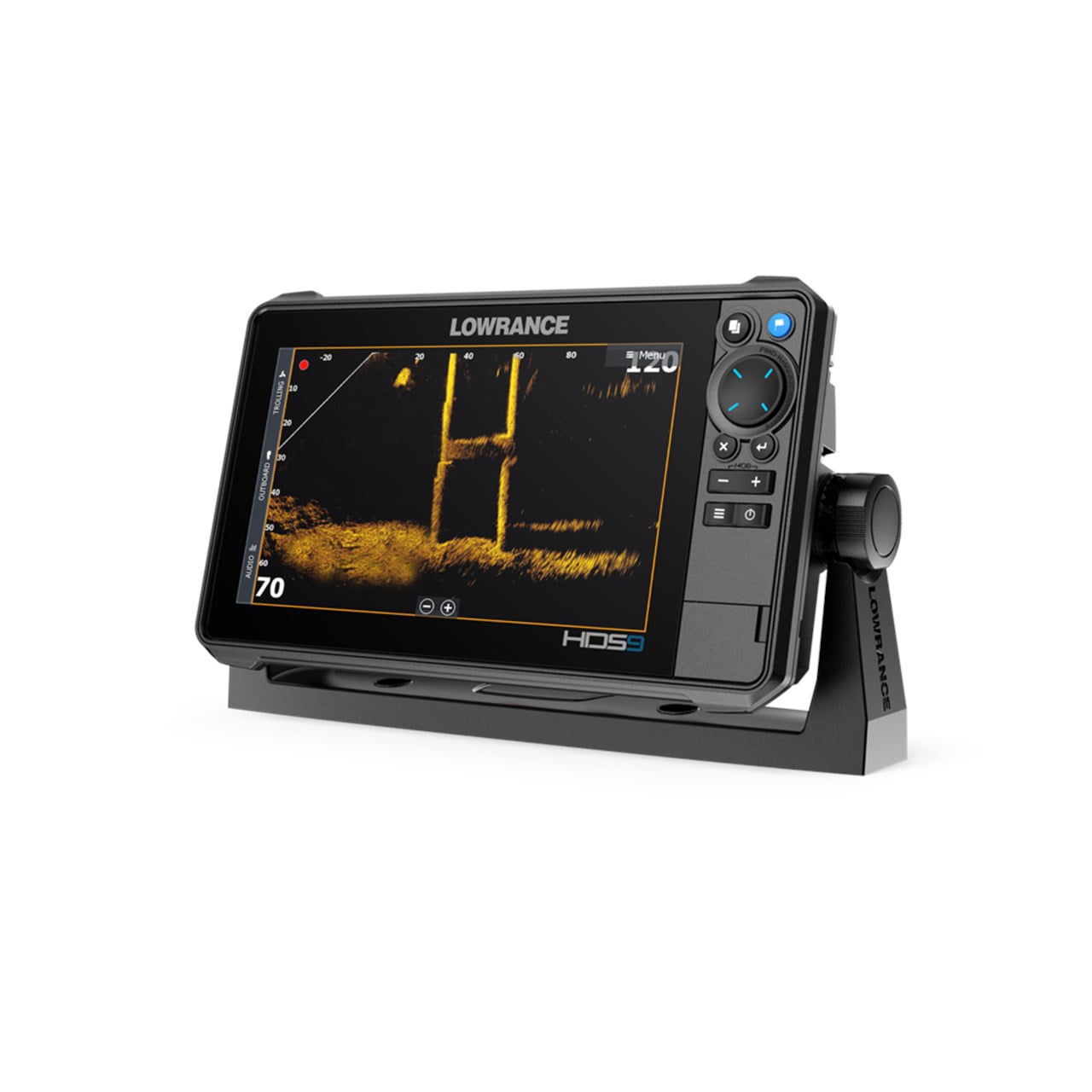

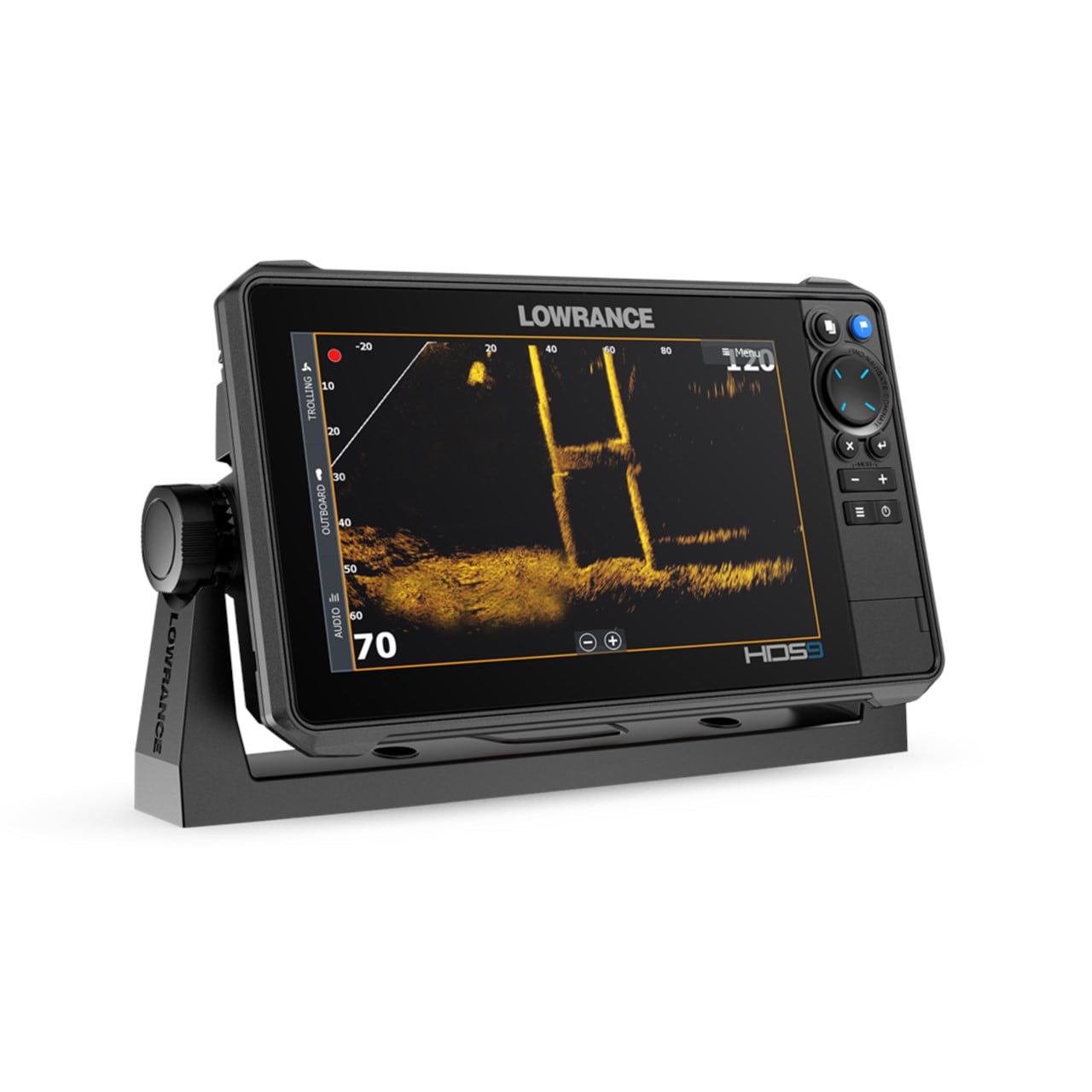

Lowrance HDS PRO 9 Chartplotter/Fishfinder

Item#: F24346

Model:

The Lowrance HDS PRO 9 Chartplotter/Fishfinder is engineered for anglers who demand precision, clarity, and superior performance. Featuring a SolarMAX HD touchscreen, this unit delivers exceptional visibility at any angle and even through polarized lenses, ensuring you can navigate and fish without any visual compromise. With cutting-edge sonar technologies, including Active Imaging HD and ActiveTarget 2 Live Sonar, the HDS PRO 9 provides high-definition, real-time views of underwater environments, giving you an edge on every fishing trip. New for this model is the high-definition up to 1.2MHz Active Imaging HD, which offers Lowrance CHIRP, SideScan, and DownScan Imaging, allowing you to easily spot fish and structure with incredible detail. The addition of FishReveal with an enhanced SideScan view makes fish identification even clearer, while the preloaded C-MAP DISCOVER OnBoard charts provide detailed 1-foot contours for over 19,000 U.S. lakes, 9,400+ Canadian lakes, and a worldwide basemap. Real-time mapping is also available with C-MAP Genesis Live, so you can create custom maps while on the water. Designed with versatility in mind, the HDS PRO 9 supports integration with ActiveTarget Scout and Ghost Trolling Motor 360 chart overlays, giving you dynamic and intuitive control. Touchscreen control of Power-Pole anchors, the Ghost Trolling Motor, Autopilot, and Lowrance Outboard Pilot ensures that you can easily manage your system without distractions. Model #000-15981-001 includes an Active Imaging HD transducer, providing outstanding sonar imaging right out of the box. The Lowrance HDS PRO 9 is the ideal solution for anglers who need a complete, intuitive system for both navigation and fishing. With its advanced features, large programmable keys and industry-leading sonar technologies, it’s ready to enhance your time on the water.

SolarMAX HD Touchscreen: Offers crystal-clear visibility, even through polarized lenses and from extreme viewing angles
High-Definition Sonar: Up to 1.2MHz Active ImaginG HD ready, including Lowrance CHIRP, SideScan, and DownScan Imaging for superior underwater clarity
ActiveTarget 2 Live Sonar Ready: Real-time, high-resolution sonar for tracking fish and structure with pinpoint accuracy
FishReveal with Enhanced SideScan: Easily spot fish and structure with a new SideScan view and DownScan imaging *(requires S3100 module and compatible transducer)*
System Integration: Full control of Power-Pole anchors, Ghost Trolling Motor, Autopilot, and Lowrance Outboard Pilot via touchscreen.
Enhanced Connectivity: Supports NMEA 2000, wireless, and Bluetooth for easy integration and smartphone notifications.
Specifications:
Display:
- Backlight Color: Pure White LED
- Display Resolution: 1280x720
- Screen Brightness: >1200 Nits
- Viewing Angles: 80° top/bottom, 80° left/right
Connectivity:
- Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
- Ethernet Ports: 2x 100 Mbit, 6 max MFD's on a network
- Connectivity Wi-Fi: Internal 802.11b/g/n and compatible with WiFi-1 Module
NMEA 0183 Sentences supported:
- TX/RX: GPS Receive GGA GLL GSA GSV VTG ZDA
- Transmit: GGA GLL GSA GSV VTG ZDA GLCTX
- NavigationReceive: RMC
- Transmit: AAM APB BOD BWC BWR RMC RMB XTE XDR
- Sonar Receive: DBT DPT MTW VLW VHM
- Transmit: DBT DPT MTW VLW VHM
- Compass Receive: HDG HDT HDM
- Transmit: HDG
- Wind Receive: MWV MWD
- Transmit: MWV MWD
NMEA 2000 Connectivity: 1x Micro-C
PC Connectivity: None
SD Card Storage: 2 micro SD cards up to 32GB
Video:
- Output: No
- Input: Composite video RCA - single channel via optional adaptor
Cartography Charts supported:
- C-MAP Reveal
- C-MAP Discover
- C-MAP (MAX N, MAX N+)
- C-MAP Genesis
- C-MAP Precision Contour HD (AMER ONLY)
- Navionics (Gold, NAV+ Platinum+)
- Insight (Pro and HD)
- Lowrance Regional Mapping Partners
Autopilot:
- Manoeuvres and Turn Patterns: Course Heading, Waypoint, PowerSteer, U-Turn, C-Turn, Spiral, Zigzag, Square, Lazy-S
- Steering Modes: Course Heading, Waypoint, Power Steer
Approvals:
- Compliance: FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM
Electrical:
- Power Consumption max: 2.9A @ 13.8VDC with Full Backlight, Sonar on
- Power Consumption min: 2.0A @ 13VDC with Full Backlight, Sonar on
- Power Consumption typical: 2.0A @ 13VDC with Full Backlight, Sonar on
- Recommended Fuse Rating: 3A
- Supply Voltage: 12V DC (10.8-17VDC)
Environment:
- Humidity: IEC 60945 Damp Heat 150°F (66°C) at 95% Relative Humidity (48 hrs)
- Operating Temperature Range: 5°F to 131°F (-15°C to 55°C)
- Shock Vibration: 100,000 cycles of 20 G
- Storage Temperature Range: 4°F to 140°F (-20°C to 60°C)
- Waterproof rating: IPX7 with card door closed
GPS:
- Correction: DGPS, WAAS
- GPS Receiver Channels: 16
- Position Accuracy: 20m RMS
- Time to First Fix: 30s
- Update rate: 10 Hz
MFD:
- AIS: AIS Chart and Radar overlay. Target vessel details.
- Autopilot: Outboard Pilot NAC-1 NAC-2 Ghost Trolling Motor Motor Guide Xi5/Xi3 Trolling Motor **requires Motor guide PinPoint Gateway
- Cartography included: C-MAP Discover OnBoard (AMER models), C-MAP World Background (ROW models), Navionics basemap (AMER and ROW models)
Physical:
- Compass Safe: 65 cm (2.1 ft)
- Dimensions: W x H x D: 11.02" (280 mm) x 6.56" (166.7 mm) x 3.06" (77.7 mm)
- Mounting Type: Gimbal Bracket Front Dash Flush Mount Rear Dash Flush Mount
- Weight: 3.06 lb (1.39 kg)
- Interface: Full Multi-touch touchscreen, 8-way directional keypad (Zoom +/-, Exit, Enter, Menu, Waypoint, Power/Light)

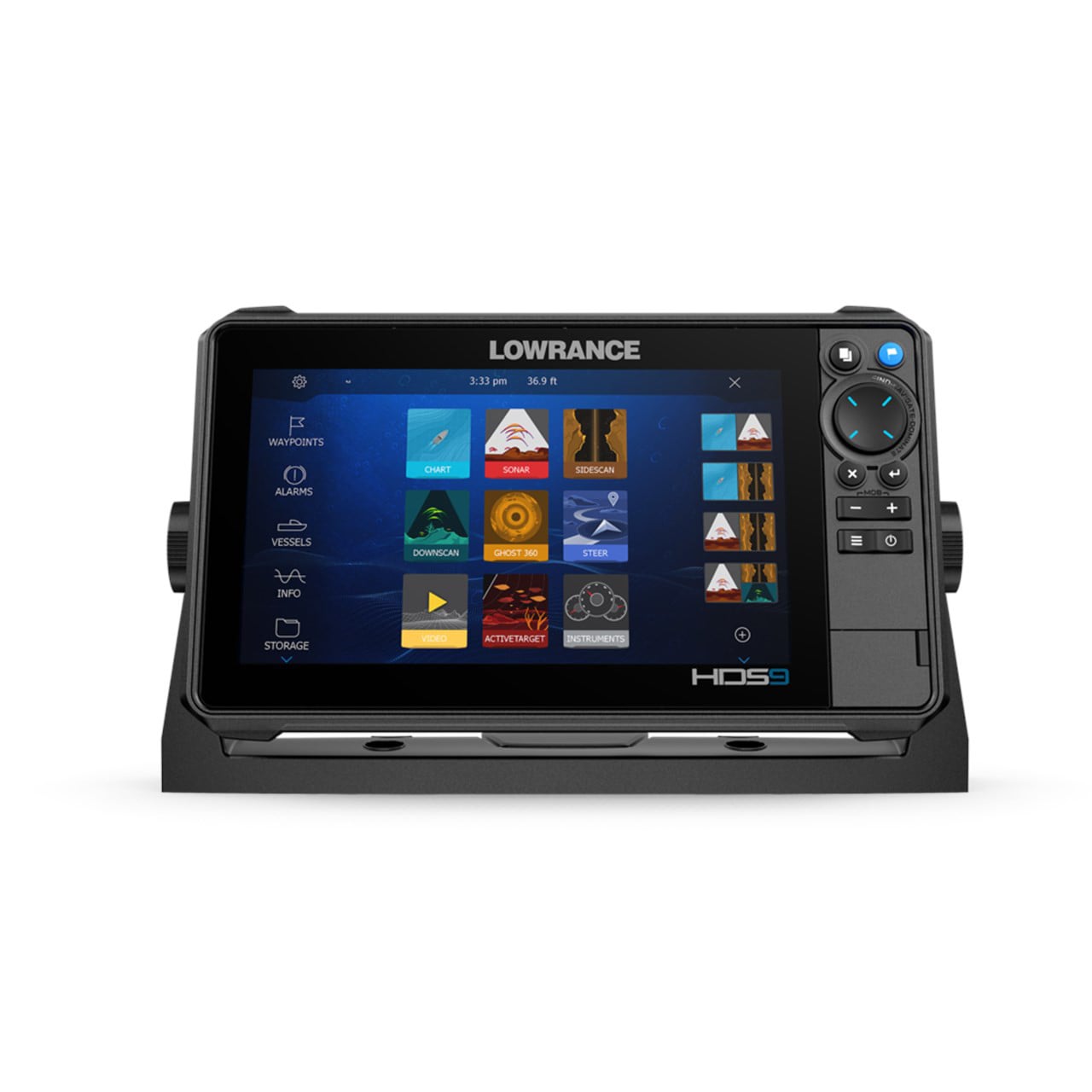

In the Box (Model #000-15996-001):
- PC-30-RS422 Power Cable for HDS Series
- HDS-9 LIVE Suncover
- HDS-9 LIVE / Elite FS 9 Bracket
- Manufacturers’ warranty: 2 Year + 3 additional years of upgrade options totaling 5 years

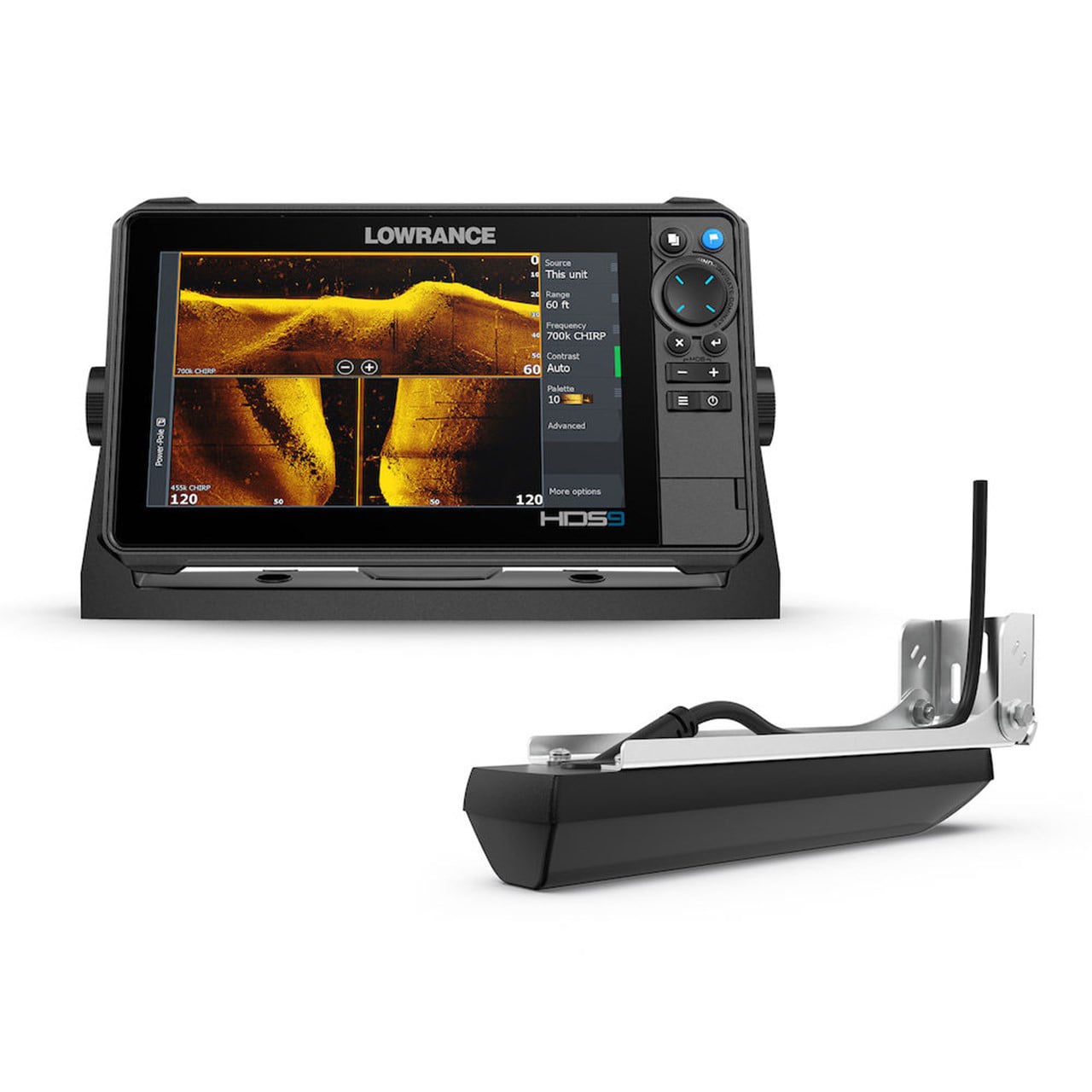

In the Box (Model #000-15981-001):
- PC-30-RS422 Power Cable for HDS Series
- HDS-9 LIVE Suncover
- HDS-9 LIVE / Elite FS 9 Bracket
- Active Imaging HD 3-in-1 Transducer
- Manufacturers’ warranty: 2 Year + 3 additional years of upgrade options totaling 5 years
