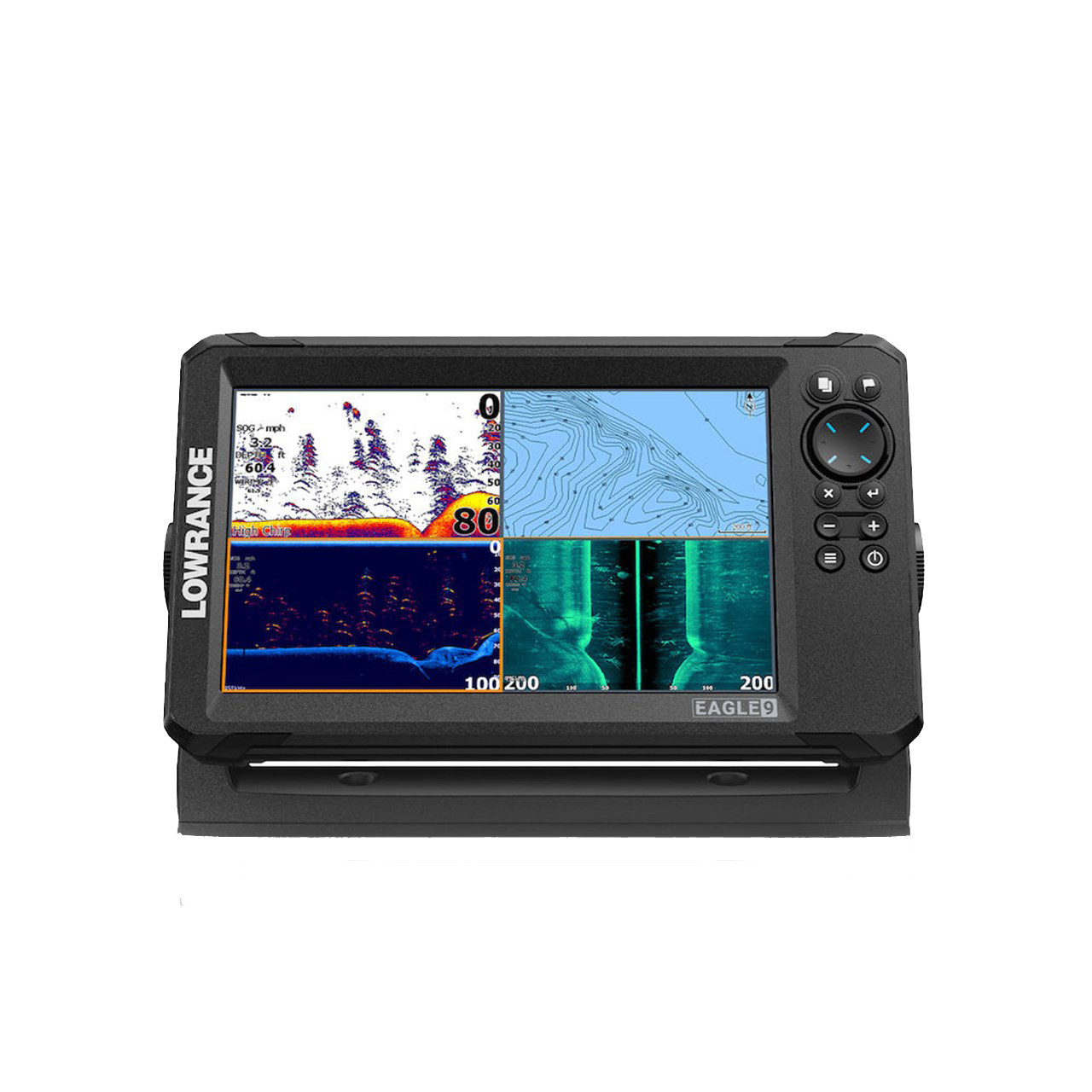

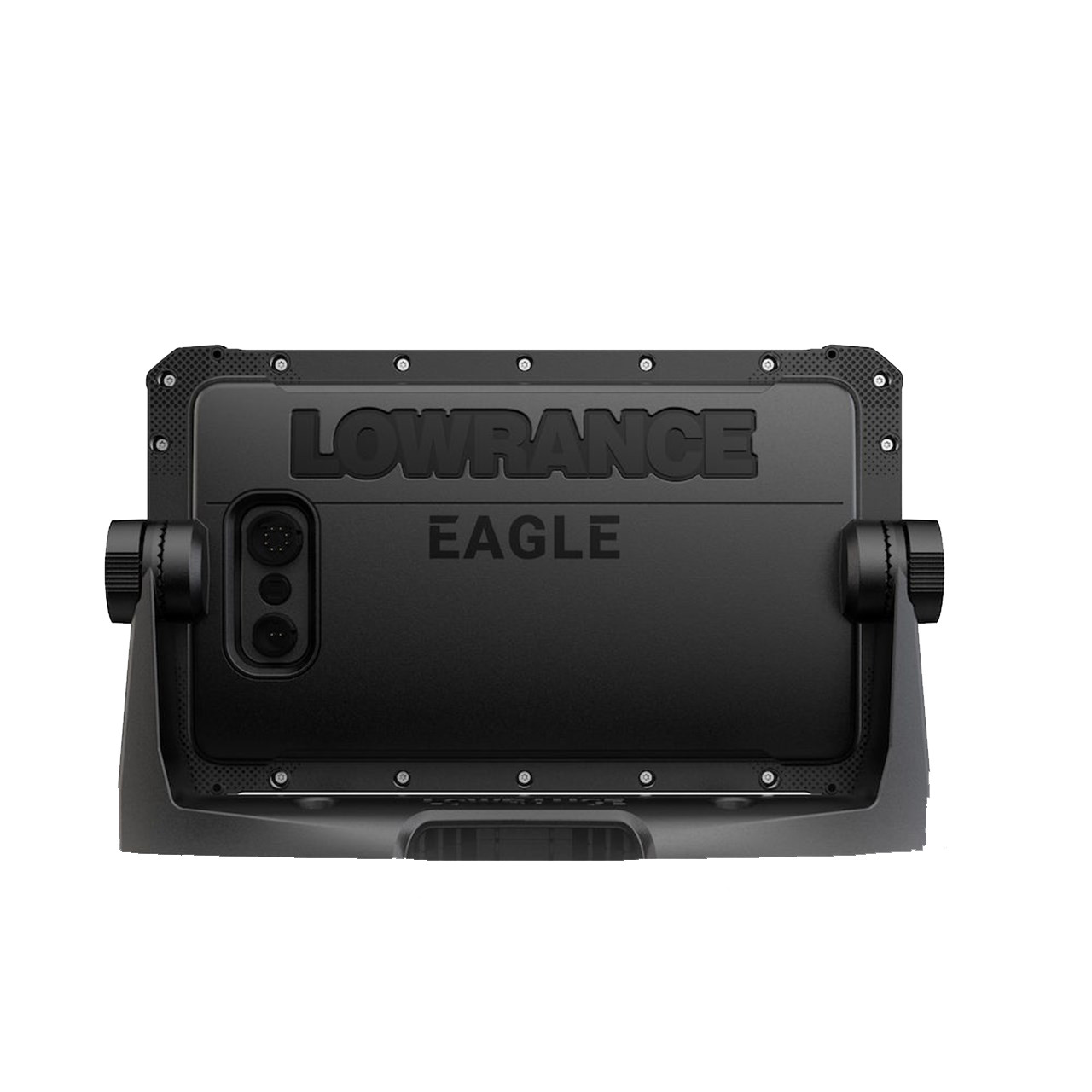

The Lowrance Eagle 9 with TripleShot HD Transducer combines advanced sonar performance with user-friendly features to help anglers maximize their time on the water. Its enhanced TripleShot HD Transducer with Autotuning sonar provides crystal-clear views of fish and structure. The integrated worldwide basemap ensures you're ready to explore any waterway, while the IPS display offers exceptional clarity and wide-angle visibility—even when wearing polarized sunglasses! A new twist-lock connector system simplifies installation on any boat or kayak, ensuring a secure and reliable setup. With an SD card slot for software updates, Genesis Live mapping, and additional charting options, customization is at your fingertips. FishReveal mode makes identifying fish in cover effortless, while new imaging color palettes increase contrast and clarity for superior viewing in all conditions. Whether you're navigating new waters or uncovering hidden fish, the Lowrance Eagle 9 with TripleShot HD Transducer is your ultimate companion for fishing adventures!

• Enhanced TripleShot HD Transducer with Autotuning sonar for sharper fish and structure imaging
• Worldwide basemap for reliable navigation on any waterway
• IPS screen ensures clear viewing from all angles, even with polarized sunglasses
• Reliable twist-lock connector system for quick, secure installation on boats or kayaks
• SD card slot supports software updates, Genesis Live mapping, and charting upgrades
• FishReveal mode highlights fish hiding in cover for easy identification
• New imaging color palettes improve contrast and detail for optimal viewing
• Manufacturers’ warranty: 1 Year + 4 additional years of upgrade options totaling 5 years
• Specifications:
• Display:
  • Backlight Color: Pure white LED
  • Display Resolution: 1024 x 600
  • Display Size: 9 inches
  • Screen Brightness: 1000 NITS
  • Viewing Angles: 80° top/bottom, 80° left/right
• Connectivity:
  • SD Card Storage: 1 slot (microSD 32 GB maximum)
  • Cartography Charts supported: C-MAP DISCOVER
• Electrical:
  • Power Consumption max: 640 mA @ 12 V DC with backlight on full
  • Power Consumption typical: 640 mA @ 12 V DC with backlight on full
  • Recommended Fuse Rating: 3A
  • Supply Voltage: 12v DC (10.8-17VDC)
• Environment:
  • Humidity: 60°C, 95% relative humidity (RH) for 48 hours
  • Operating Temperature Range: 5°F to 131°F (-15°C to 55°C)
  • Storage Temperature Range: 4°F to 140°F (-20°C to 60°C)
  • Waterproof rating: IPX7 with card door closed
• GPS:
  • Correction: SBAS
  • Time to First Fix: 45s
• MFD:
  • Cartography included: C-MAP inland charts for the US, with coverage of over 17,000+ American lakes
  • Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, 100 Trails
• Physical:
  • Compass Safe: 12" (300mm)
  • Dimensions: W x H x D 287.2 mm (11.30") x 162.5 mm (6.39") x 90 mm (3.54")
  • Mounting Type: Gimbal bracket or dash mount
  • Weight: 0.9 kg (1.98 lb)
  • Interface: Keypad: 8-way directional keypad, Zoom +/- (MOB), Exit, Enter, Menu, Waypoint, Power / backlight
