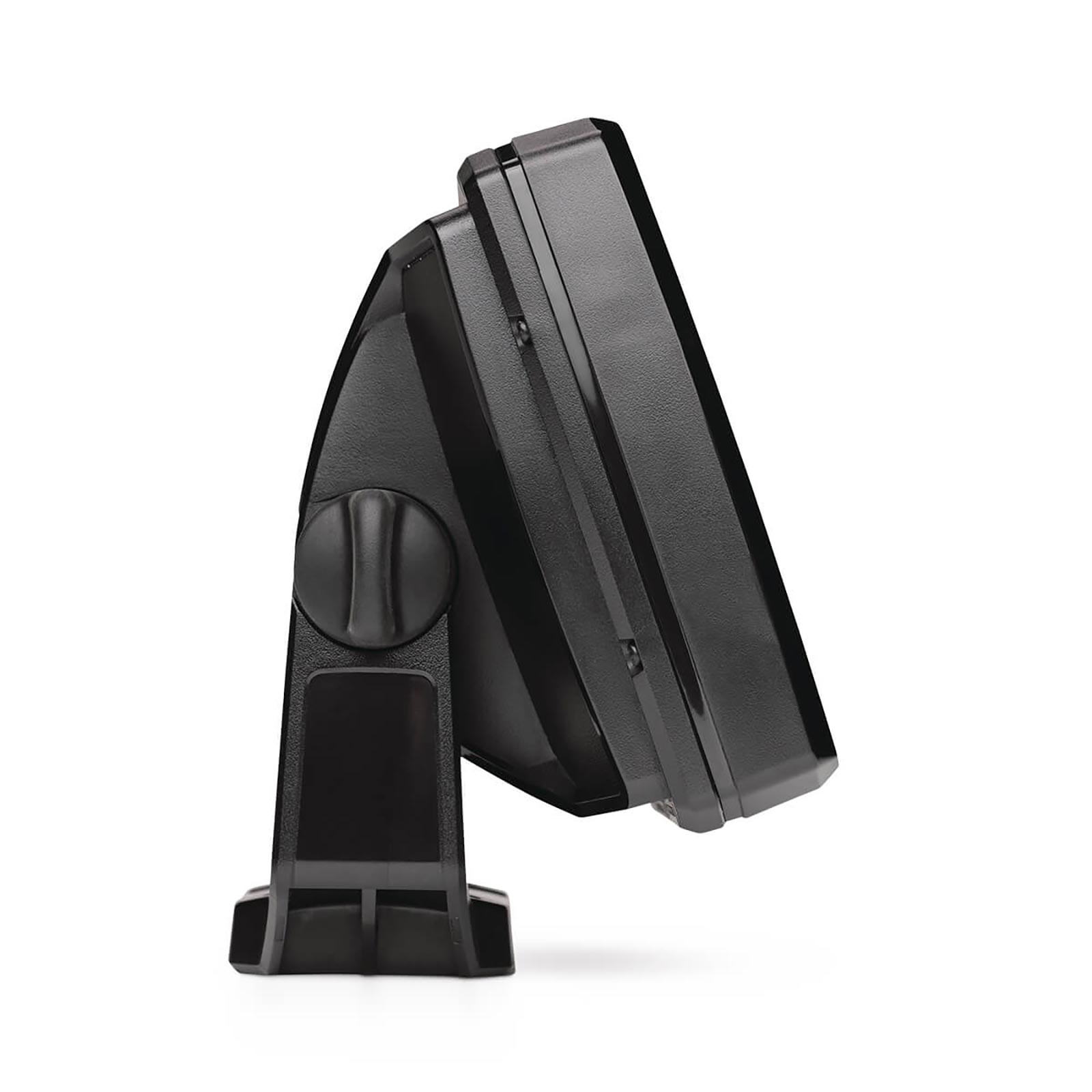

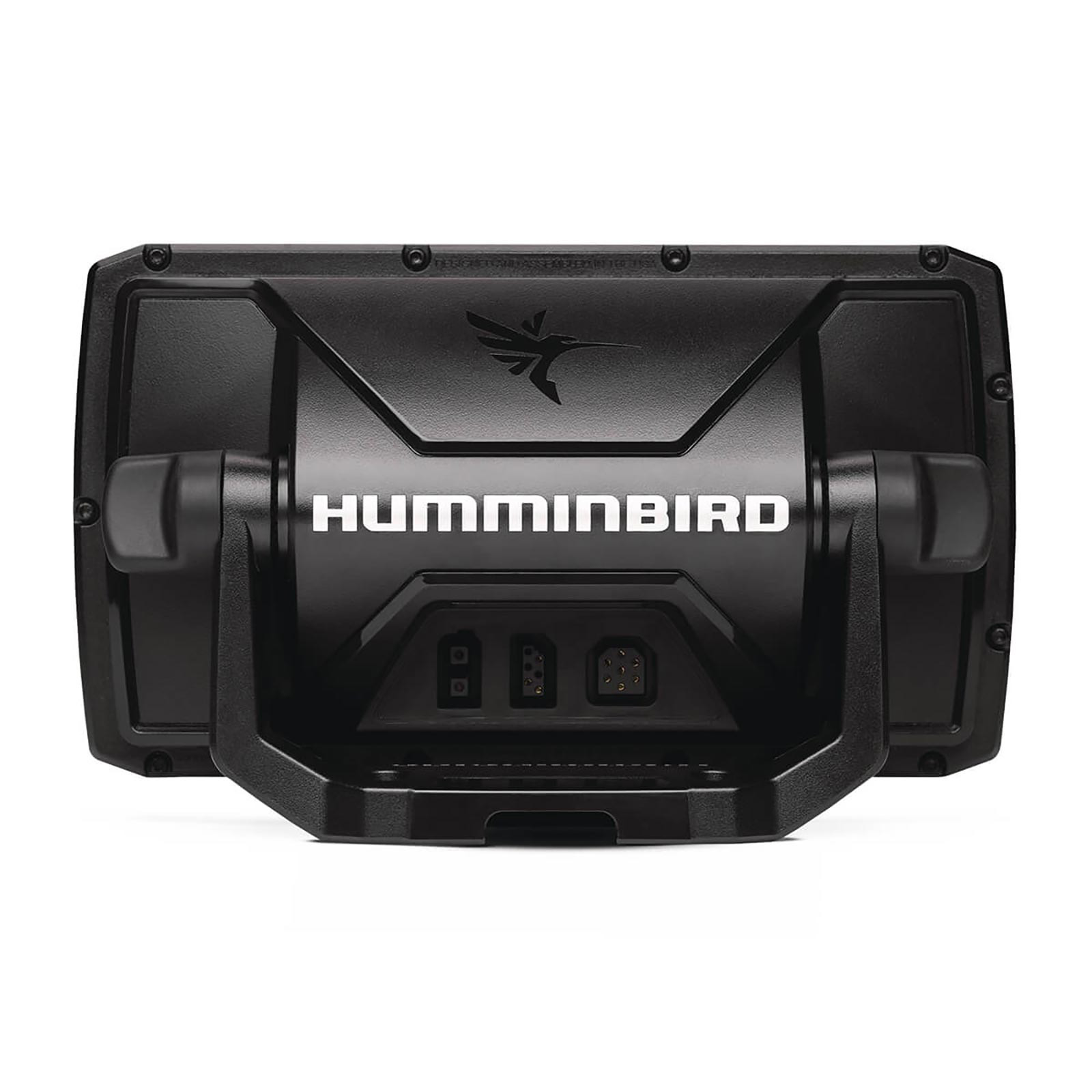

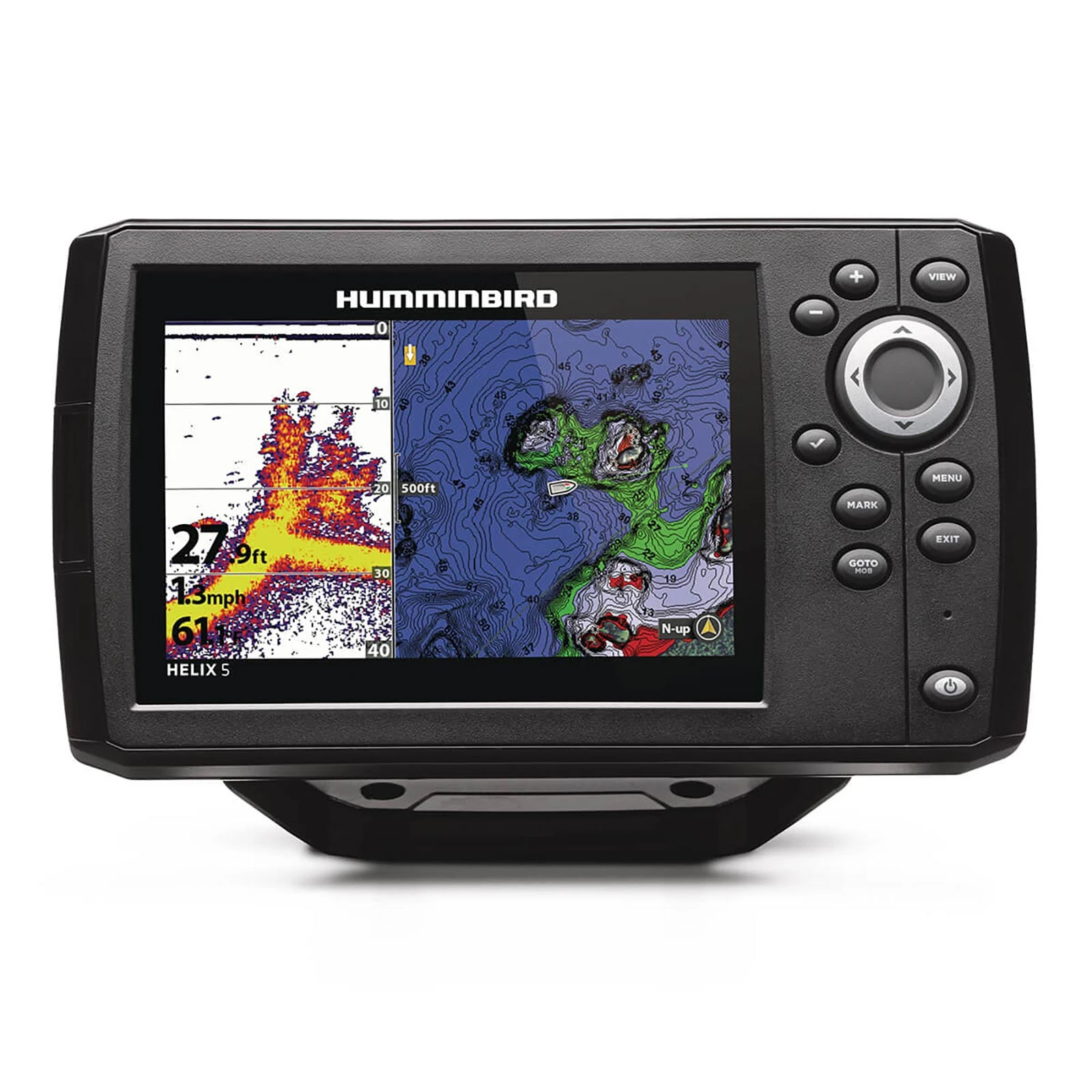

Humminbird HELIX 5 CHIRP GPS G3 Fish Finder

Item#: 199947

No reviews yet

A Humminbird HELIX 5 CHIRP GPS G3 Fish Finder can guide you near and far to locate fish any hour of the day or night. The HELIX 5 features CHIRP (Compressed Hig… Learn More

2 In Stock

2 In Stock

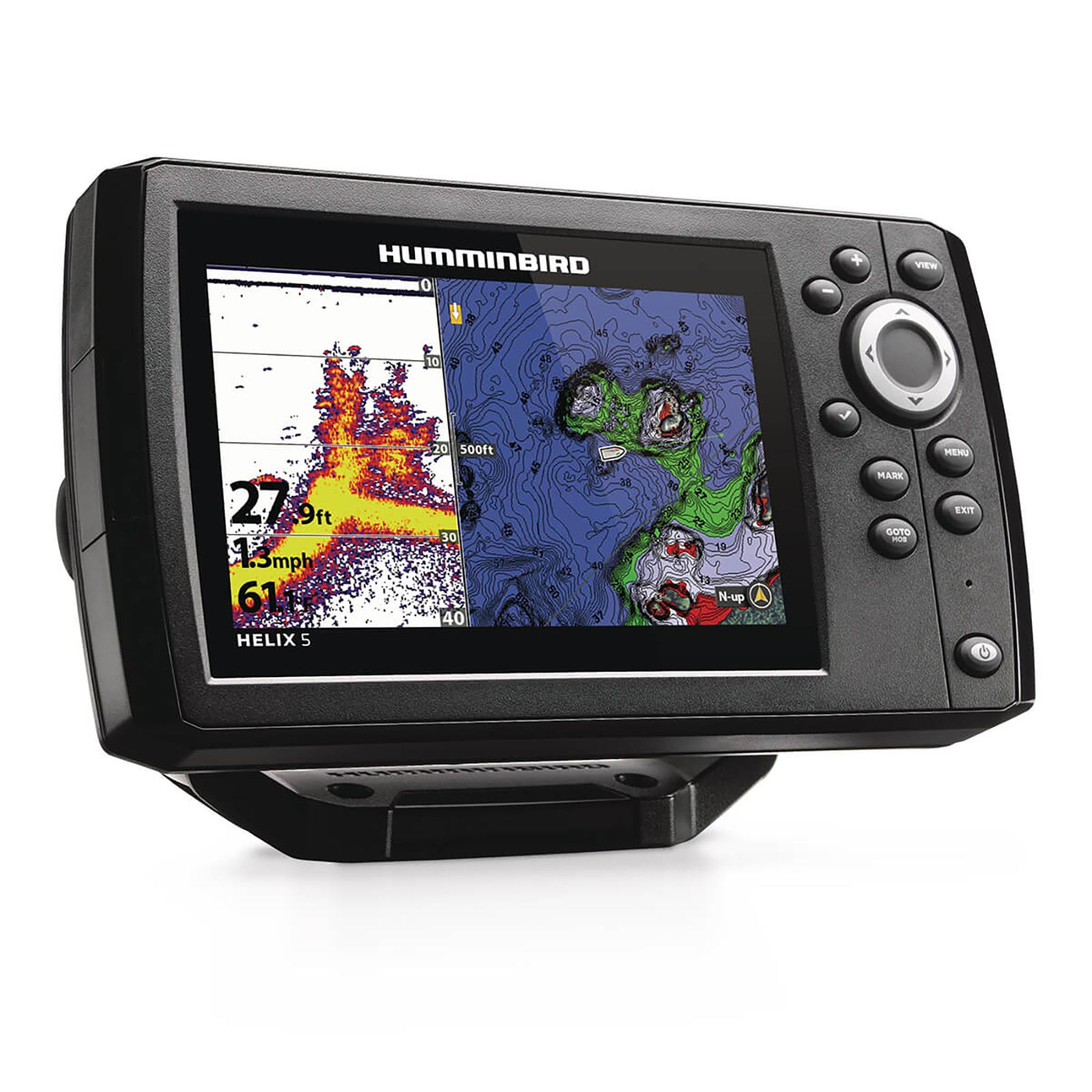

A Humminbird HELIX 5 CHIRP GPS G3 Fish Finder can guide you near and far to locate fish any hour of the day or night. The HELIX 5 features CHIRP (Compressed High-Intensity Radar Pulse) GPS and an uncompromising five-inch widescreen color display. This G3 model also offers you fish viewing through Dual-Spectrum CHIRP 2D sonar, which provides detailed fish arches, a clear view of structure and bottom, and search modes in Wide and Narrow views. The HELIX 5 G3 Fish Finder keeps you oriented with an internal GPS, Humminbird Basemap, and AutoChart Live, as well as having additional compatibility for Humminbird and Navionics premium fishing charts (sold separately). If boating and fishing are in your DNA, then augment your genes with a Humminbird HELIX 5 CHIRP GPS G3 Fish Finder!

  • Keypad Control
    • Master HELIX at the touch of a button. Access the preloaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any conditions.
  • Dual-Spectrum CHIRP Sonar
    • Before you cast, know what's down there thanks to highly detailed fish arches and a clear view of fish-holding structure and the bottom. Powered by Low-Q CHIRP transducer, Dual-Spectrum CHIRP 2D sonar offers two ways to search: Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.
  • Humminbird Basemap
    • Enhanced Basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
  • Premium Chart Compatible
    • Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakerMaster and CoastMaster products, as well as your choice of compatible Navionics charts. Sold separately.
  • AutoChart Live
    • Create real-time maps of your fishing spots with access to patented Humminbird LakeMaster features. Map depth contours, bottom hardness, and vegetation as you drive your boat. Comes standard with eight hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.
  • Internal GPS
  • Single (1) Micro SD Slot
  • Specifications:
    • Item Number: 411660-1
    • Series: HELIX
    • Display Size Diagonal: 5 in.
    • Display Pixel Matrix: 800 H x 480 V
    • Sonar Standard: Dual-Spectrum CHIRP
    • Sonar Coverage: 20°, 42°, 60° at -10 dB
    • Sonar Optional: 50 kHz and 50/Low Airmar CHIRP
    • CHIRP Frequencies: 83/200 (75 - 155 / 130 - 250 kHz), Full Mode (150 - 220 kHz), Narrow Mode (180 - 240 kHz), and Wide Mode (140 - 200 kHz)
    • Sonar Frequencies: 50/80/200 kHz
    • Depth Sonar: 1,200 ft. (standard transducer) and 3,000 ft. (optional 50 kHz)
    • Interface: Keypad Control
    • Features: Built-in GPS, Built-in Mapping, and Dual-Spectrum CHIRP
    • Memory Card Slot: Single Micro SD
    • Compatible With: AIS, AutoPilot, and Minn Kota US2 Sonar
    • Power Draw: 615 mA
    • Power Input: 10.8 - 20 VDC
    • Power Output Peak-to-Peak: 4000 W
    • Power Output RMS: 500 W
    • Screen Snap Shot: Included
    • Sonar Recording: Included
    • Mount Standard: Gimbal
    • Mount Standard Size: 7.55 x 4.64 x 3.30 in.
    • Mount Optional Size: 7.55 x 4.28 x 1.13 in.
    • Transducer Mount Location: Transom
    • GPS Chartplotting: Included
    • GPS Trackplotting: Included
    • LakeMaster Compatibility: Yes
    • CoastMaster Compatibility: Yes
    • Navionics Gold/HotMaps Compatibility: Yes
    • Navionics Platinum+ Compatibility: Yes
    • Platinum Compatibility: Yes
    • Heading Sensor GPS: No
    • Upgradable Software: Yes
    • View Preset Keys: No
    • X-Press Menu System: Yes
    • Custom Digital Readout: Yes
    • Custom View Selections: No
    • Display Colors Grayscale: 16-Bit
    • Display Size: 5 - 7 in.
    • Speed: Included
    • Temperature: Built In
    • Temperature Alarm: Yes
    • Temperature Graph: Yes
    • Transducer Included: XNT 9 HW T
    • HDMI Compatible: No
    • MEGA Live Compatibility: No
    • UPC: 0082324056291
  • Included in Pack:
    • Control head
    • Transom-mount transducer
    • Power cable

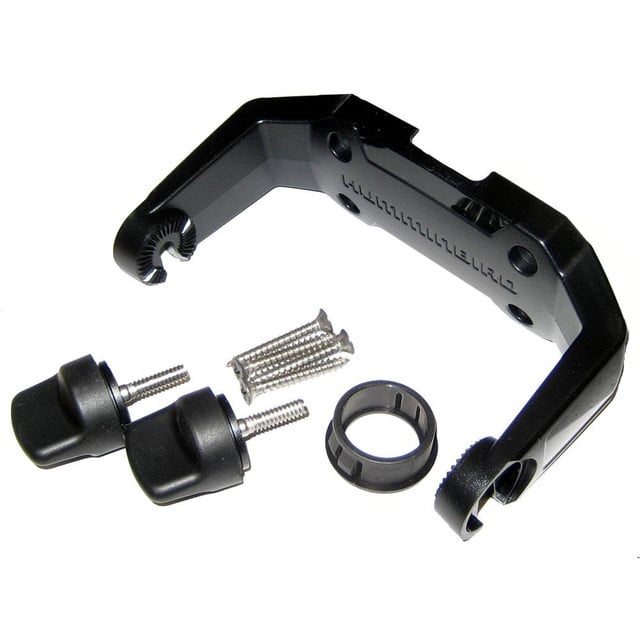

    • Gimbal mounting bracket and mounting hardware
  • Manufacturer's one-year limited warranty

Please note: Once opened, the product cannot be returned and if defective or damaged must be returned to the manufacturer for warranty repair or replacement.
