The Lowrance HDS PRO 16 combines state-of-the-art sonar technology, superior navigation, and seamless integration to deliver an unparalleled fishing experience. Its expansive SolarMAX HD touchscreen offers crystal-clear visibility from extreme angles and through polarized lenses, ensuring every detail is in sight. Equipped with high-definition SideScan and DownScan Imaging at up to 1.2MHz, the HDS PRO 16 provides remarkably clear views of fish and underwater structures. Lowrance CHIRP sonar enhances clarity and target separation, while FishReveal simplifies fish identification with combined DownScan and SideScan views (*requires S3100 module and compatible transducer). This versatile unit supports Medium and High CHIRP (83/200kHz) as well as 455/800kHz and 455/1.2MHz frequencies. Its smart transducer design further improves signal clarity for precise, reliable results.

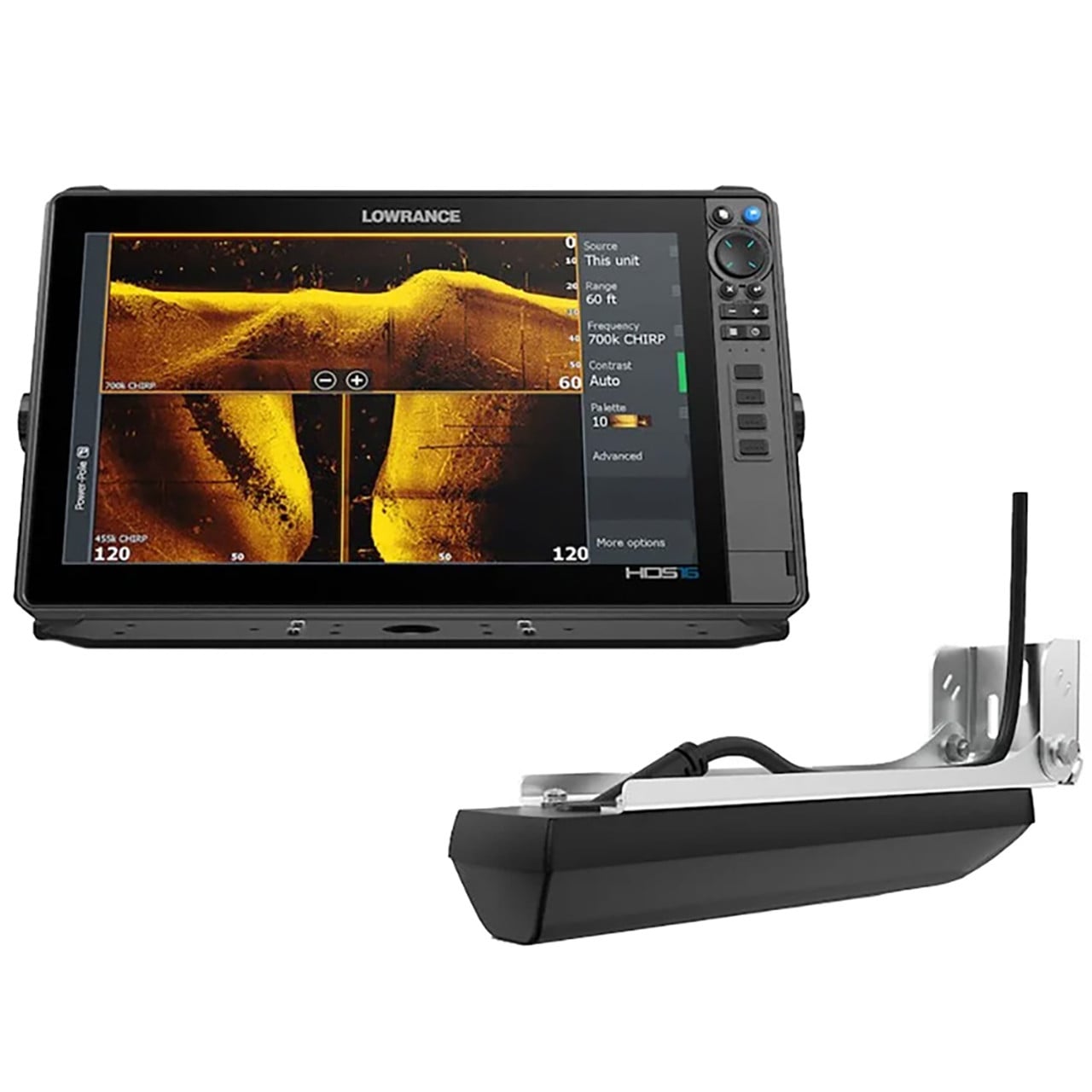

Model #000-15990-001 includes a transducer, making it ready to perform right out of the box. Preloaded with C-MAP DISCOVER OnBoard charts, it offers 1-foot contours for over 19,000 U.S. lakes and 9,400 Canadian lakes. For real-time mapping, C-MAP Genesis Live ensures your charts stay up-to-date. Compatible with advanced systems like ActiveTarget Scout, Ghost Trolling Motor, and 360 chart overlay views, the HDS PRO 16 is designed for seamless integration with your boat. Other standout features include programmable keys, touchscreen control of Power-Pole anchors, trolling motor, and autopilot systems, and robust connectivity options like NMEA 2000, Bluetooth, and wireless integration. Stay connected with smartphone notifications and enjoy a truly advanced fishing experience.

• High-definition SideScan and DownScan Imaging for crystal-clear views of fish and structure.
• FishReveal integrates DownScan and SideScan for easier fish identification.
• Preloaded C-MAP DISCOVER OnBoard charts with 1-foot contours for 19,000+ U.S. and 9,400+ Canadian lakes.
• Supports Medium/High CHIRP (83/200kHz), 455/800kHz, and 455/1.2MHz frequencies
• Compatible with advanced sonar and navigation systems like ActiveTarget 2 Live Sonar and Ghost Trolling Motor.
• Model #000-15990-001 includes a transducer for ready-to-use functionality.
• Specifications:
• Display:
  • Backlight Color: Pure White LED
  • Display Resolution:1920 x 1080 Full HD
  • Screen Brightness: >1200 Nits
  • Viewing Angles: 80° top/bottom, 80° left/right
• Connectivity:
  • Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
  • Ethernet Ports: 1x 100 Mbit, 6 max MFD's on a network
  • Wi-Fi: Internal 802.11b/g/n, compatible with WiFi-1 Module
  • NMEA 0183 Sentences Supported:
    • TX/RX - GPS: Receive GGA, GLL, GSA, GSV, VTG, ZDA; Transmit GGA, GLL, GSA, GSV, VTG, ZDA
    • TX/RX - Navigation: Receive RMC; Transmit AAM, APB, BOD, BWC, BWR, RMC, RMB, XTE, XDR
    • TX/RX - Sonar: Receive DBT, DPT, MTW, VLW, VHM; Transmit DBT, DPT, MTW, VLW, VHM
    • TX/RX - Compass: Receive HDG, HDT, HDM; Transmit HDG
    • TX/RX - Wind: Receive MWV, MWD; Transmit MWV, MWD
    • TX/RX - AIS/DSC*: Receive DSC, DSE, VDM (*AIS sentences are not bridged to or from NMEA 2000)
  • NMEA 2000 Connectivity: 1x Micro-C
  • PC Connectivity: None
  • SD Card Storage: 2 micro SD cards up to 32GB
• Video:
  • Output: No
  • Input: Composite video RCA - single channel via optional adapter
• Cartography Charts Supported:
  • C-MAP Reveal
  • C-MAP Discover
  • C-MAP (MAX N, MAX N+)
  • C-MAP Genesis
  • C-MAP Precision Contour HD (AMER ONLY)
  • Navionics (Gold, NAV+, Platinum+)
  • Insight (Pro and HD)
  • Lowrance Regional Mapping Partners
• Autopilot:
  • Maneuvers and Turn Patterns: Course Heading, Waypoint, PowerSteer, U-Turn, C-Turn, Spiral, Zigzag, Square, Lazy-S
  • Steering Modes: Course Heading, Waypoint, Power Steer

• Approvals: FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM
• Electrical:
  • Power Consumption Max: 4.1A @ 13VDC with Full Backlight, Sonar on
  • Power Consumption Min: 3.00 @ 13VDC with Full Backlight, Sonar on
  • Power Consumption typical: 3.00 @ 13VDC with Full Backlight, Sonar on
  • Supply Voltage: 12v DC (10.8-17VDC)
  • Recommended Fuse Rating: 6A
• Environment:
  • Humidity: IEC 60945 Damp Heat 150°F (66°C) at 95% Relative Humidity (48 hrs)
  • Operating Temperature Range: 5°F to 131°F (-15°C to 55°C)
  • Waterproof Rating: IPX7 with card door closed
• GPS:
  • Correction: DGPS, WAAS
  • GPS Receiver Channels: 16
  • Position Accuracy: 20m RMS
  • Time to First Fix: 30s
  • Update Rate: 10 Hz
• MFD:
  • AIS: AIS Chart and Radar overlay. Target vessel details.
  • Autopilot: Outboard Pilot NAC-1, NAC-2, Ghost Trolling Motor, Motor Guide Xi5/Xi3 Trolling Motor (**requires Motor Guide PinPoint Gateway)
  • Cartography Included: C-MAP Discover OnBoard (AMER models), C-MAP World Background (ROW models), Navionics Basemap (AMER and ROW models)
  • Digital Switching: Czone, Naviop
  • GPS: 10 Hz GPS/GLONASS, WAAS/EGNOS/MSAS
• Physical:
  • Dimensions: “W x H x D” “16.95" (430.5 mm) x 10.20" (259.2 mm) x 3.46 (87.8 mm)
  • Mounting Type: Gimbal Bracket, Flush Mount
  • Weight: 7.94 lb (3.60 kg)
  • Touchscreen :Full Multi-touch touchscreen Keypad:8-way directional keypad Zoom +/-Exit Enter Menu Waypoint Power/Light4 - User Programmable Quick Access Keys
• In the Box:
  • Model #000-16005-001 :
    • HDS PRO fishfinder/chartplotter (16-inch display screen)
    • C-MAP DISCOVER OnBoard (Preloaded)
    • Manufacturers’ warranty: 2 Years + 3 additional years of upgrade options totaling 5 years
  • Model ##000-15990-001
    • HDS PRO fishfinder/chartplotter (16-inch display screen)
    • C-MAP DISCOVER OnBoard (Preloaded)
    • Lowrance Active Imaging HD 3-in-1 Transducer
    • Manufacturers’ warranty: 2 Years + 3 additional years of upgrade options totaling 5 years
