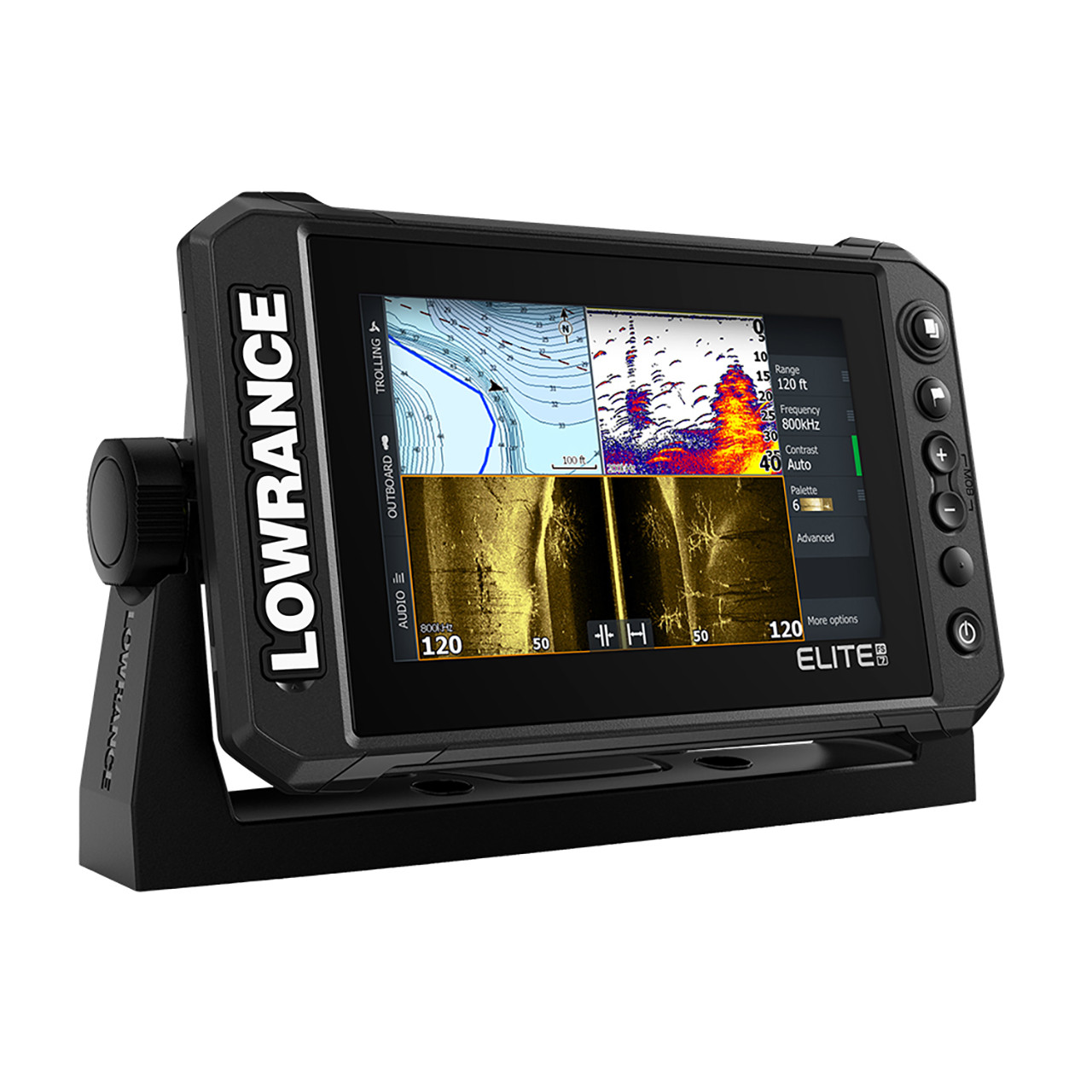

Lowrance Elite FS 7 Chartplotter/Fishfinder

Item#: F24345

Model:

Product Details

The Lowrance Elite FS 7 combines cutting-edge sonar, mapping, and connectivity features to give anglers the edge in finding and catching fish. With its high-resolution multi-touch screen and seamless integration with leading technologies, this fishfinder/chartplotter delivers unmatched functionality and performance for both professional and recreational anglers. Models #000-15696-001 and #000-15688-001 come equipped with an HDI transducer, featuring Lowrance CHIRP sonar and DownScan Imaging, while model #000-15703-001 is transducer-free, offering greater customization for anglers with specific sonar preferences. All three models are ActiveTarget 2 Live Sonar-ready and Active Imaging 3-in-1 compatible, providing crystal-clear views of fish movements and underwater structures. Built-in C-MAP Easy Routing, Navionics Autorouting, and Genesis Live onscreen mapping ensure precision navigation, while integrated wireless, NMEA 2000, and Ethernet connectivity expand control and integration with Power Pole anchors, Ghost Trolling Motors, and more. Whether you're exploring uncharted waters or targeting a specific species, the Lowrance Elite FS 7 ensures you're equipped with everything you need for success.

ActiveTarget 2 Live Sonar and Active Imaging 3-in-1 compatible
High-resolution multi-touch touchscreen with intuitive control
Integrated wireless, NMEA 2000, and Ethernet connectivity
Full touchscreen control of Power Pole anchors and Ghost Trolling Motor
Supports multiple mapping options: C-MAP, Navionics, and more
Display
- Backlight Color: Pure White LED
- Display Resolution: 800x480
- Screen Brightness: >1200 nits
- Viewing Angle: 50° top, 60° bottom, 70° left/right
Connectivity
- Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
- Ethernet Ports: 1 x 100Mbit
- Wi-Fi: Internal 802.11b/g/n
- NMEA 0183 Sentences Supported: None
- NMEA 2000 Connectivity: 1x Micro-C
- PC Connectivity: None
- SD Card Storage: 1 micro SD card up to 32GB
- Video: None
Cartography Charts Supported
- C-MAP (MAX N, MAX N+)
- C-MAP Genesis
- C-MAP Precision Contour HD (AMER ONLY)
- Navionics (Gold, NAV+, Platinum+)
- Insight (Pro and HD)
- Lowrance Regional Mapping Partners
Electrical
- Power Consumption Max: 2.0A @ 13VDC with backlight on full
- Power Consumption Min: 2.0A @ 13VDC with backlight on full
- Power Consumption Typical: 2.0A @ 13VDC with backlight on full
- Recommended Fuse Rating: 3A
- Supply Voltage: 12V DC (10.8-17VDC)
Environment
- Humidity: 60°C, 95% relative humidity (RH) for 18 hours
- Operating Temperature Range: 5°F to 131°F (-15°C to 55°C)
- Shock Vibration: 100,000 cycles of 20 G
- Storage Temperature Range: 4°F to 140°F (-20°C to 60°C)
- Waterproof Rating: IPX7 with card door closed
GPS
- Correction: DGPS, WAAS, MSAS, EGNOS, GLONASS
- GPS Receiver Channels: 16
- Position Accuracy: 20m RMS
- Time to First Fix: 30s
- Update Rate: 10 Hz
MFD
- AIS: AIS Chart overlay and target vessel details
- Autopilot: Outboard Pilot, Ghost Trolling Motor, MotorGuide Xi5/Xi3 Trolling Motor (requires MotorGuide PinPoint Gateway)
- Cartography Included: C-MAP Contour + (US models)/Navionics Basemap (AMER, AUS/NZ, and ROW models)
- Digital Switching: None
- GPS: 10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS
- Internal Storage: None
- Multimedia: SonicHub, SonicHub2, FusionLink products, and any NMEA 2000 compliant Marine Audio products
- Sonar Compatibility: Integrated CHIRP, Broadband, Active Imaging DownScan, and Active Imaging SideScan. Compatible with SonarHub, StructureScan, StructureScan 3D, LiveSight, and ActiveTarget.
- Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, 100 Trails with up to 10,000 points per trail
- Weather: SiriusXM via WM-4 (USA only)
Physical
- Compass Safe: 12" (300mm)
- Mounting Type: Gimbal Bracket or Dash Flush Mount
- Weight: 1.90 lbs (0.90 kg)
- Interface: Multi-Touch Touchscreen, Zoom +/-, MOB = (+/- combined), Pages, Waypoint, Light/Power
In the Box:

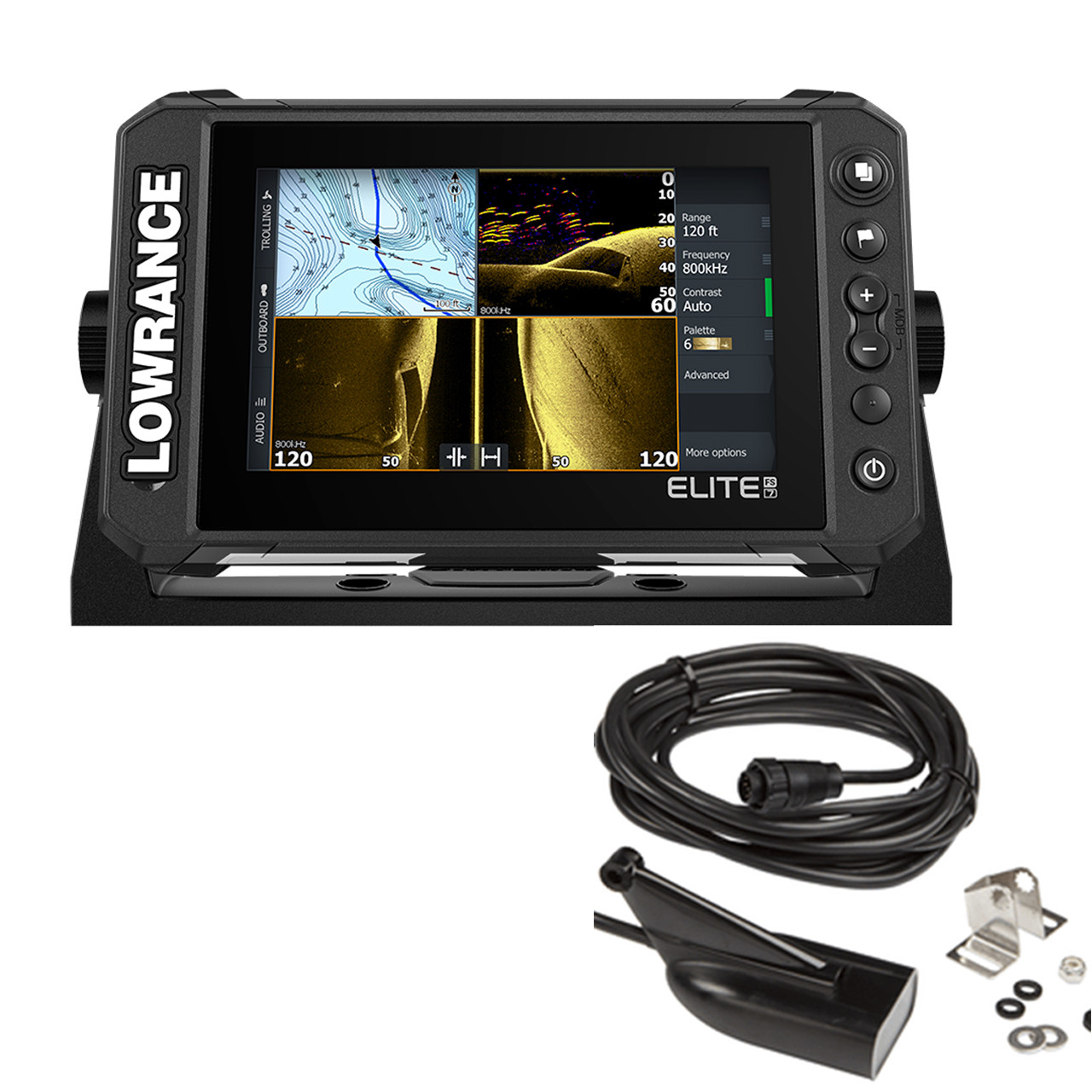

- Model #000-15696-001:
  - HDS/Elite/Hook/Mark Power Only Cable
  - Fuse and Fuse Holder
  - BLACK HDI SKIMMER MED/HIGH 455/800 9PIN
  - HDS-7 LIVE / Elite FS 7 Bracket
  - Elite FS 7 Suncover
  - Manufacturer's Warranty: 2 years plus 3 additional years of upgrade options totaling 5 years
- Model #000-15703-001:
  - HDS/Elite/Hook/Mark Power Only Cable
  - Fuse and Fuse Holder
  - HDS-7 LIVE / Elite FS 7 Bracket
  - Elite FS 7 Suncover
  - Manufacturer's Warranty: 2 years plus 3 additional years of upgrade options totaling 5 years

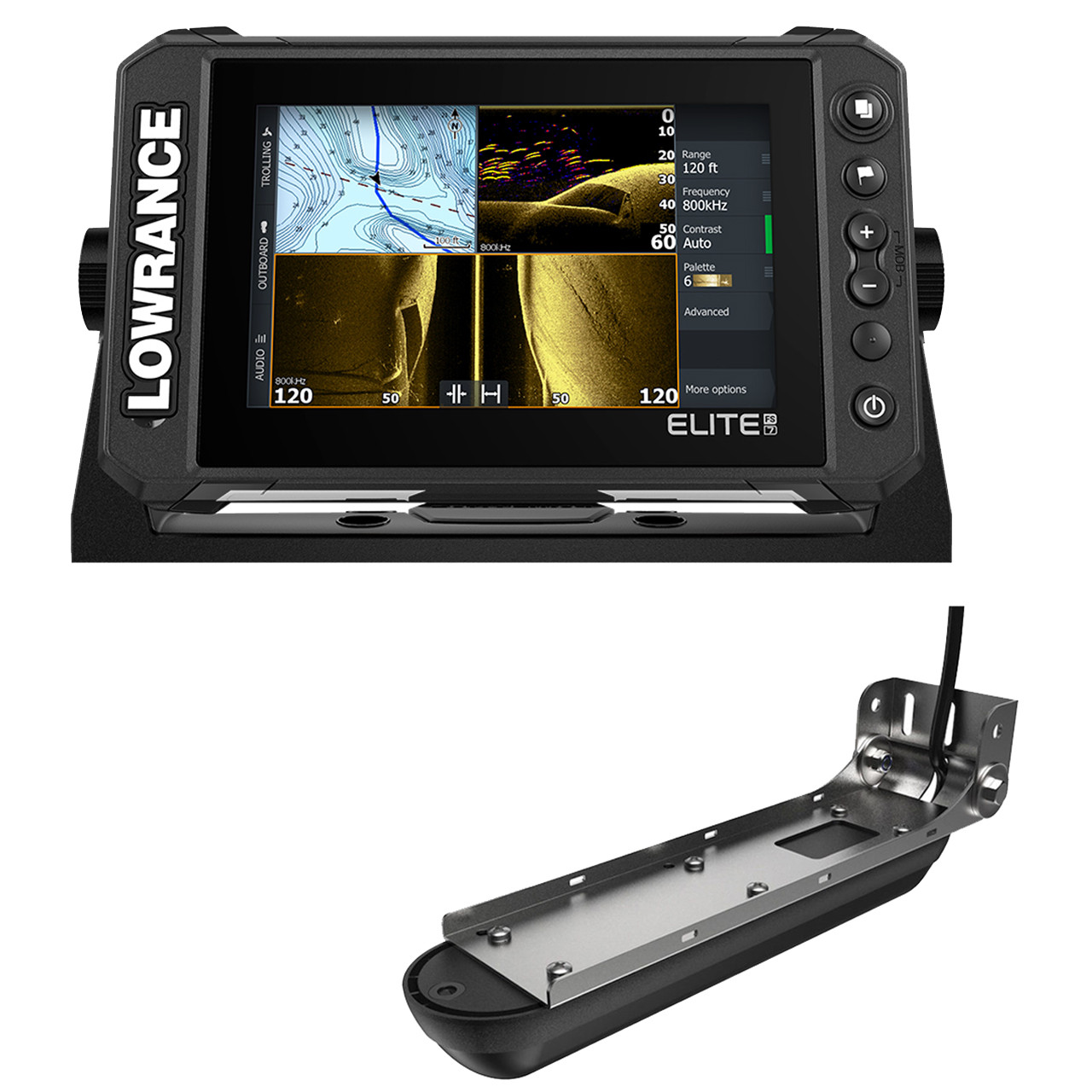

- Model #000-15688-001:
  - HDS/Elite/Hook/Mark Power Only Cable
  - Fuse and Fuse Holder
  - HDS-7 LIVE / Elite FS 7 Bracket
  - Active Imaging 3-in-1 Transducer
  - Elite FS 7 Suncover
  - Manufacturer's Warranty: 2 years plus 3 additional years of upgrade options totaling 5 years
