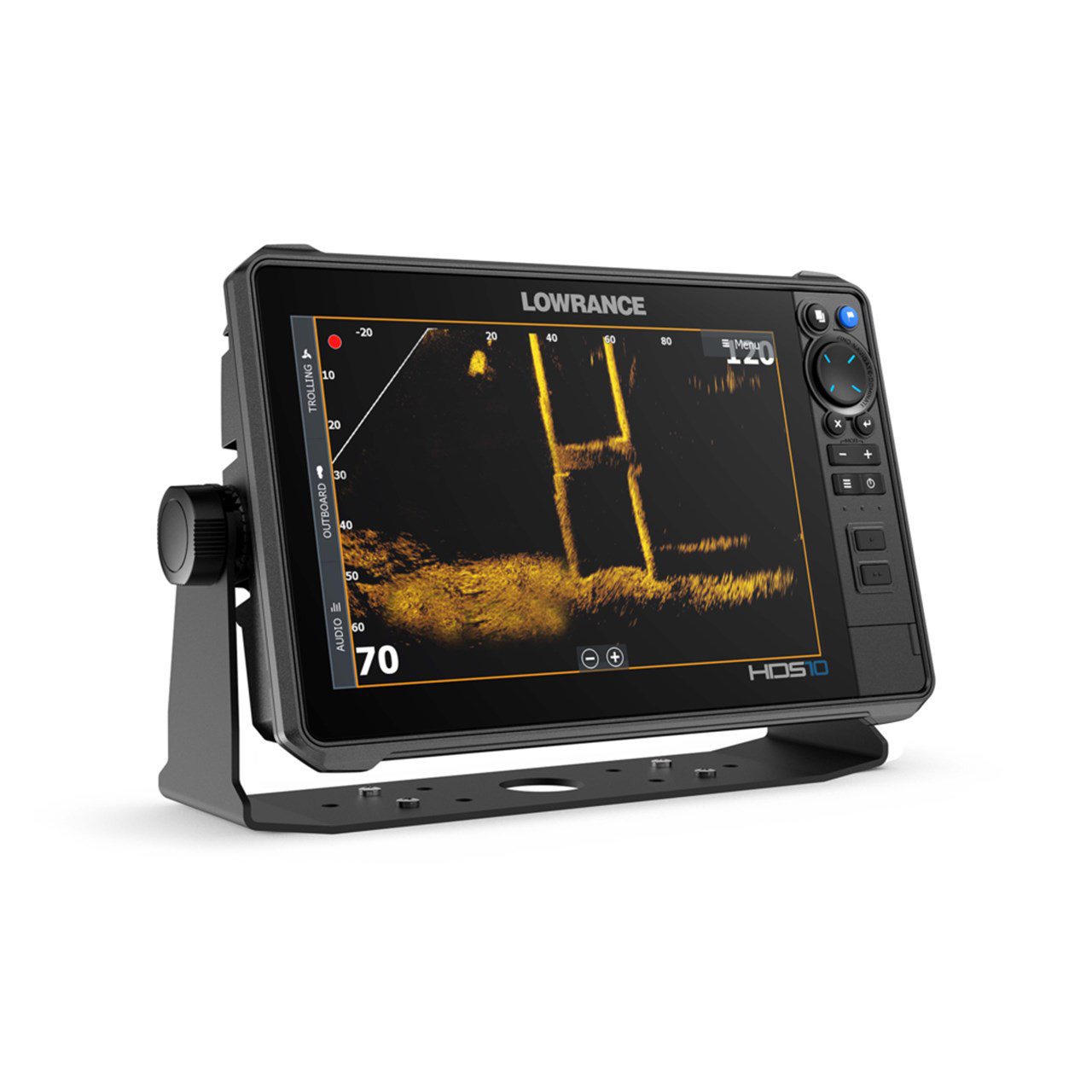

Lowrance HDS PRO 10 Chartplotter/Fishfinder

Item#: F24347

Model:

The Lowrance HDS PRO 10 Chartplotter/Fishfinder is a top-tier solution for anglers seeking advanced sonar and mapping technology. This 10-inch unit features a SolarMAX HD touchscreen, delivering unmatched clarity even in direct sunlight and through polarized lenses, ensuring optimal visibility from any angle. The HDS PRO 10 includes Active Imaging HD, offering up to 1.2MHz sonar resolution for Lowrance CHIRP, SideScan, and DownScan Imaging, enabling precise fish and structure detection. The unit is also ActiveTarget 2 Live Sonar ready, providing live, real-time sonar views for a dynamic fishing experience. Enhanced with FishReveal featuring a new SideScan view, the HDS PRO 10 makes it easier to distinguish fish from structure. It comes preloaded with C-MAP DISCOVER OnBoard charts, offering 1-foot contours for over 19,000 US lakes, 9,400 Canadian lakes, and a global basemap. Additionally, real-time mapping with C-MAP Genesis Live and extensive connectivity options like NMEA 2000, Bluetooth, and wireless support ensure seamless integration with your boat’s systems. The model that includes the Active Imaging HD Transducer (model #000-15984-001) delivers precise sonar imaging, making this unit the ultimate choice for serious anglers.

SolarMAX HD touchscreen for clear, vibrant viewing in all lighting conditions, including through polarized lenses
Active Imaging HD with up to 1.2MHz sonar resolution, compatible with Lowrance CHIRP, SideScan, and DownScan Imaging
ActiveTarget 2 Live Sonar ready and FishReveal with enhanced SideScan views for easier fish tracking
FishReveal with Enhanced SideScan: Easily spot fish and structure with a new SideScan view and DownScan imaging *(requires S3100 module and compatible transducer)*
Preloaded C-MAP DISCOVER OnBoard charts with 1-foot contours for 19,000+ US lakes and 9,400+ Canadian lakes.
Includes Active Imaging HD Transducer (model #000-15984-001) for superior sonar performance
Specifications:
Display:
- Backlight Color: Pure White LED
- Display Resolution: 1280x800
- Screen Brightness: >1200 Nits
- Viewing Angles: 80° top/bottom, 80° left/right
Connectivity:
- Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
- Ethernet Ports: 2x 100 Mbit, 6 max MFD's on a network
- Connectivity Wi-Fi: Internal 802.11b/g/n and compatible with WiFi-1 Module
NMEA 0183 Sentences supported:
- TX/RX: GPS Receive GGA GLL GSA GSV VTG ZDA
- Transmit: GGA GLL GSA GSV VTG ZDA GLCTX
- NavigationReceive: RMC
- Transmit: AAM APB BOD BWC BWR RMC RMB XTE XDR
- Sonar Receive: DBT DPT MTW VLW VHM
- Transmit: DBT DPT MTW VLW VHM
- Compass Receive: HDG HDT HDM
- Transmit: HDG
- Wind Receive: MWV MWD
- Transmit: MWV MWD
NMEA 2000 Connectivity: 1x Micro-C
PC Connectivity: None
SD Card Storage: 2 micro SD cards up to 32GB
Video:
- Output: No
- Input: Composite video RCA - single channel via optional adaptor
Cartography Charts supported:
- C-MAP Reveal
- C-MAP Discover
- C-MAP (MAX N, MAX N+)
- C-MAP Genesis
- C-MAP Precision Contour HD (AMER ONLY)
- Navionics (Gold, NAV+ Platinum+)
- Insight (Pro and HD)
- Lowrance Regional Mapping Partners
Autopilot:
- Manoeuvres and Turn Patterns: Course Heading, Waypoint, PowerSteer, U-Turn, C-Turn, Spiral, Zigzag, Square, Lazy-S
- Steering Modes: Course Heading, Waypoint, Power Steer
Approvals:
- Compliance: FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM
Electrical:
- Power Consumption max: 2.9A @ 13.8VDC with Full Backlight, Sonar on
- Power Consumption min: 2.0A @ 13VDC with Full Backlight, Sonar on
- Power Consumption typical: 2.0A @ 13VDC with Full Backlight, Sonar on
- Recommended Fuse Rating: 3A
- Supply Voltage: 12V DC (10.8-17VDC)
Environment:
- Humidity: IEC 60945 Damp Heat 150°F (66°C) at 95% Relative Humidity (48 hrs)
- Operating Temperature Range: 5°F to 131°F (-15°C to 55°C)
- Shock Vibration: 100,000 cycles of 20 G
- Storage Temperature Range: 4°F to 140°F (-20°C to 60°C)
- Waterproof rating: IPX7 with card door closed
GPS:
- Correction: DGPS, WAAS
- GPS Receiver Channels: 16
- Position Accuracy: 20m RMS
- Time to First Fix: 30s
- Update rate: 10 Hz
MFD:
- AIS: AIS Chart and Radar overlay. Target vessel details.
- Autopilot: Outboard Pilot NAC-1 NAC-2 Ghost Trolling Motor Motor Guide Xi5/Xi3 Trolling Motor **requires Motor guide PinPoint Gateway
- Cartography included: C-MAP Discover OnBoard (AMER models), C-MAP World Background (ROW models), Navionics basemap (AMER and ROW models)
Physical:
- Compass Safe: 65 cm (2.1 ft)
- Dimensions: 11.06" (294.61 mm) x 7.6" (193.15 mm) x 3.3" (82.57 mm)
- Mounting Type: Gimbal Bracket Front Dash Flush Mount Rear Dash Flush Mount
- Weight: 3.66lb (1.66kg)
- Interface: Full Multi-touch touchscreen, 8-way directional keypad (Zoom +/-, Exit, Enter, Menu, Waypoint, Power/Light)
In the Box: Model #000-15999-001
- HDS PRO fishfinder/chartplotter (10-inch display screen)
- C-MAP DISCOVER OnBoard (Preloaded in HDS PRO fishfinder/chartplotter)
- Manufacturers’ warranty: 2 Year + 3 additional years of upgrade options totaling 5 years
In the Box: Model #000-15984-001
- HDS PRO fishfinder/chartplotter (10-inch display screen)
- C-MAP DISCOVER OnBoard (Preloaded in HDS PRO fishfinder/chartplotter)
- HDS-9 LIVE / Elite FS 9 Bracket
- Lowrance Active Imaging HD 3-in-1 Transducer
- Manufacturers’ warranty: 2 Year + 3 additional years of upgrade options totaling 5 years

This item does not qualify for expedited shipping.
