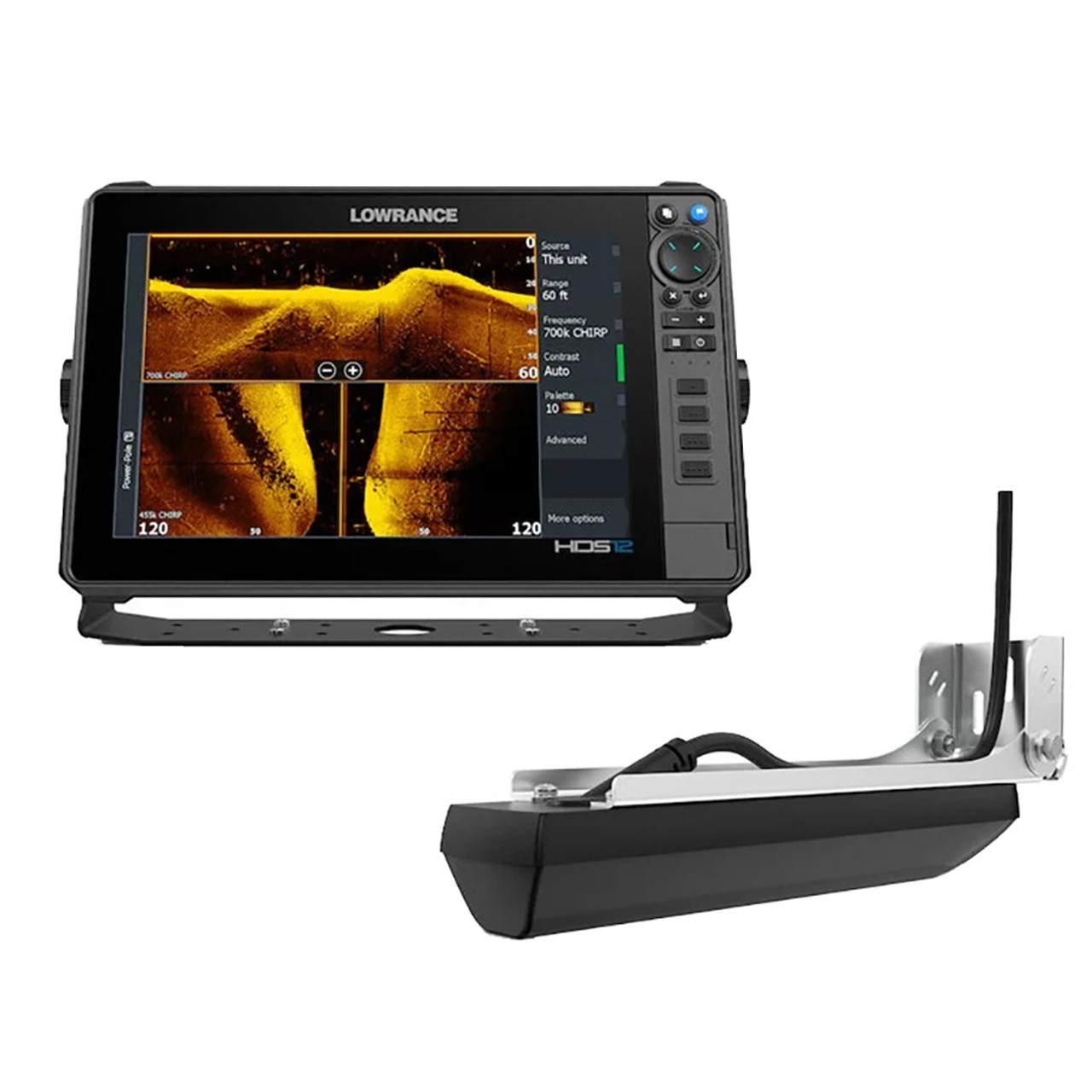

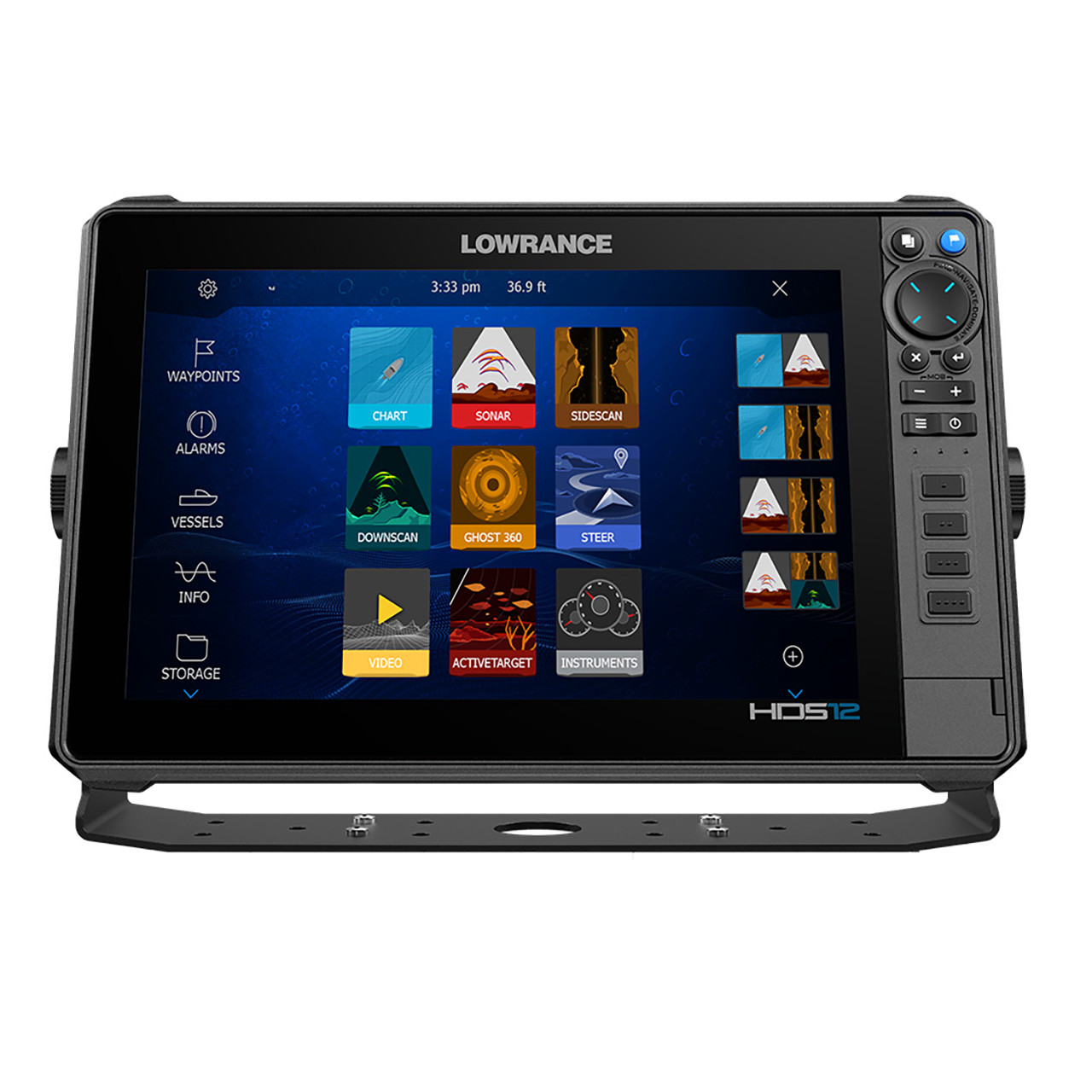

Lowrance HDS PRO 12 Chartplotter/Fishfinder

Item#: F24348

Model:

The Lowrance HDS PRO 12 Chartplotter/Fishfinder combines cutting-edge sonar, navigation, and integration features to give anglers a powerful tool for superior on-the-water performance. Its 12-inch SolarMAX HD touchscreen provides unmatched visibility, even at extreme angles or through polarized lenses, ensuring you never miss a detail. High-definition Active Imaging HD, with up to 1.2MHz SideScan and DownScan Imaging, delivers crystal-clear views of fish and underwater structures, while Lowrance CHIRP sonar offers superb clarity and precise target separation. The innovative FishReveal feature simplifies fish identification by integrating DownScan and a new SideScan view (*requires an S3100 module and compatible transducer).

Supporting Medium and High CHIRP (83/200kHz), 455/800kHz, and 455/1.2MHz frequencies, the smart transducer design(Model #000-15987-001) for enhanced sonar performance enhances signal clarity for more accurate results. The HDS PRO 12 is also ActiveTarget 2 Live Sonar ready, enabling real-time, high-resolution views of fish movement. Preloaded C-MAP DISCOVER OnBoard charts provide 1-foot contours for over 19,000 US lakes and 9,400 Canadian lakes, with real-time mapping available through C-MAP Genesis Live. Fully compatible with ActiveTarget Scout, Ghost Trolling Motor 360 chart overlay views, and other advanced systems, the HDS PRO 12 integrates seamlessly with your boat. It includes programmable keys for quick access, touchscreen control for Power-Pole anchors, Ghost Trolling Motor, and autopilot systems, and full connectivity via NMEA 2000, Bluetooth, and wireless, including smartphone notifications. With its advanced sonar capabilities and intuitive controls, the HDS PRO 12 offers unparalleled performance for anglers who demand the best.

SolarMAX HD touchscreen for clear, vibrant viewing in all lighting conditions, including through polarized lenses
Active Imaging HD with up to 1.2MHz sonar resolution, compatible with Lowrance CHIRP, SideScan, and DownScan Imaging
ActiveTarget 2 Live Sonar ready and FishReveal with enhanced SideScan views for easier fish tracking
Preloaded C-MAP DISCOVER OnBoard charts with 1-foot contours for 19,000+ US lakes and 9,400+ Canadian lakes
Active Imaging HD Transducer included for model #000-15984-001
Specifications:
Display:
- Backlight Color: Pure White LED
- Display Resolution: 1280x800
- Screen Brightness: >1200 Nits
- Viewing Angles: 80° top/bottom, 80° left/right
Connectivity:
- NMEA 2000 Connectivity: 1x Micro-C
- PC Connectivity: None
- SD Card Storage: 2 micro SD cards up to 32GB
Video:
- Output: No
- Input: Composite video RCA - single channel via optional adapter
Cartography Charts Supported:
- C-MAP Reveal
- C-MAP Discover
- C-MAP (MAX N, MAX N+)
- C-MAP Genesis
- C-MAP Precision Contour HD (AMER ONLY)
- Navionics (Gold, NAV+, Platinum+)
- Insight (Pro and HD)
- Lowrance Regional Mapping Partners
Autopilot:
- Maneuvers and Turn Patterns: Course Heading, Waypoint, PowerSteer, U-Turn, C-Turn, Spiral, Zigzag, Square, Lazy-S
- Steering Modes: Course Heading, Waypoint, Power Steer

Approvals: FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM
Electrical:
- Power Consumption Max: 2.9A @ 13.8VDC with Full Backlight, Sonar On
- Power Consumption Min: 2.0A @ 13VDC with Full Backlight, Sonar On
- Supply Voltage: 12v DC (10.8-17VDC)
- Recommended Fuse Rating: 3A
Environment:
- Humidity: IEC 60945 Damp Heat 150°F (66°C) at 95% Relative Humidity (48 hrs)
- Operating Temperature Range: 5°F to 131°F (-15°C to 55°C)
- Waterproof Rating: IPX7 with card door closed
GPS:
- Correction: DGPS, WAAS
- GPS Receiver Channels: 16
- Position Accuracy: 20m RMS
- Time to First Fix: 30s
- Update Rate: 10 Hz
MFD:
- AIS: AIS Chart and Radar overlay. Target vessel details.
- Autopilot: Outboard Pilot NAC-1, NAC-2, Ghost Trolling Motor, Motor Guide Xi5/Xi3 Trolling Motor (**requires Motor Guide PinPoint Gateway)
- Cartography Included: C-MAP Discover OnBoard (AMER models), C-MAP World Background (ROW models), Navionics Basemap (AMER and ROW models)
- Digital Switching: Czone, Naviop
- GPS: 10 Hz GPS/GLONASS, WAAS/EGNOS/MSAS
Physical:
- Dimensions: W x H x D - 11.06" x 7.6" x 3.3" (294.61 mm x 193.15 mm x 82.57 mm)
- Mounting Type: Gimbal Bracket, Flush Mount
- Weight: 3.66 lb (1.66 kg)
In the Box:
- Model #000-15999-001:
  - HDS PRO fishfinder/chartplotter (10-inch display screen)
  - C-MAP DISCOVER OnBoard (Preloaded)
  - Manufacturers’ warranty: 2 Years + 3 additional years of upgrade options totaling 5 years
- Model #000-15984-001:
  - HDS PRO fishfinder/chartplotter (10-inch display screen)
  - C-MAP DISCOVER OnBoard (Preloaded)

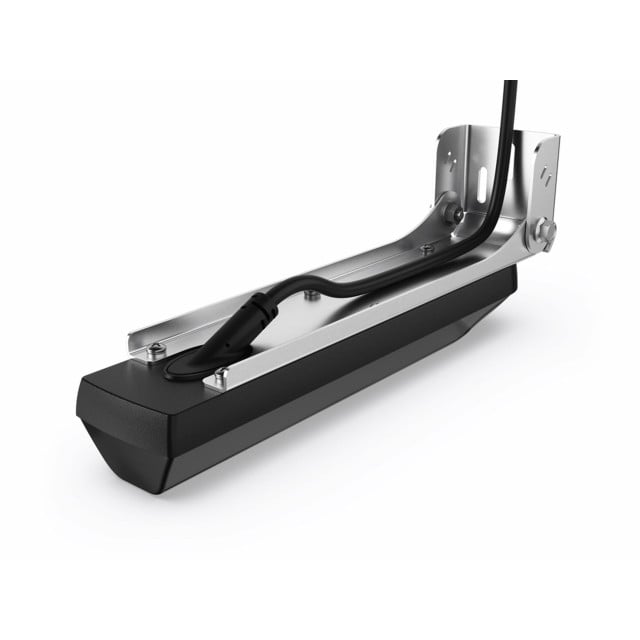

  - Lowrance Active Imaging HD 3-in-1 Transducer
  - Manufacturers’ warranty: 2 Years + 3 additional years of upgrade options totaling 5 years

This item does not qualify for expedited shipping.

PROP 65 WARNING

The Lowrance HDS PRO 12 Chartplotter/Fishfinder combines cutting-edge sonar, navigation, and integration features to give anglers a powerful tool for superior on-the-water performance. Its 12-inch SolarMAX HD touchscreen provides unmatched visibility, even at extreme angles or through polarized lenses, ensuring you never miss a detail. High-definition Active Imaging HD, with up to 1.2MHz SideScan and DownScan Imaging, delivers crystal-clear views of fish and underwater structures, while Lowrance CHIRP sonar offers superb clarity and precise target separation. The innovative FishReveal feature simplifies fish identification by integrating DownScan and a new SideScan view (*requires an S3100 module and compatible transducer).

Supporting Medium and High CHIRP (83/200kHz), 455/800kHz, and 455/1.2MHz frequencies, the smart transducer design(Model #000-15987-001) for enhanced sonar performance enhances signal clarity for more accurate results. The HDS PRO 12 is also ActiveTarget 2 Live Sonar ready, enabling real-time, high-resolution views of fish movement. Preloaded C-MAP DISCOVER OnBoard charts provide 1-foot contours for over 19,000 US lakes and 9,400 Canadian lakes, with real-time mapping available through C-MAP Genesis Live. Fully compatible with ActiveTarget Scout, Ghost Trolling Motor 360 chart overlay views, and other advanced systems, the HDS PRO 12 integrates seamlessly with your boat. It includes programmable keys for quick access, touchscreen control for Power-Pole anchors, Ghost Trolling Motor, and autopilot systems, and full connectivity via NMEA 2000, Bluetooth, and wireless, including smartphone notifications. With its advanced sonar capabilities and intuitive controls, the HDS PRO 12 offers unparalleled performance for anglers who demand the best.

SolarMAX HD touchscreen for clear, vibrant viewing in all lighting conditions, including through polarized lenses
Active Imaging HD with up to 1.2MHz sonar resolution, compatible with Lowrance CHIRP, SideScan, and DownScan Imaging
ActiveTarget 2 Live Sonar ready and FishReveal with enhanced SideScan views for easier fish tracking
Preloaded C-MAP DISCOVER OnBoard charts with 1-foot contours for 19,000+ US lakes and 9,400+ Canadian lakes
Active Imaging HD Transducer included for model #000-15984-001
Specifications:
Display:
- Backlight Color: Pure White LED
- Display Resolution: 1280x800
- Screen Brightness: >1200 Nits
- Viewing Angles: 80° top/bottom, 80° left/right
Connectivity:
- Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
- Ethernet Ports: 1x 100 Mbit, 6 max MFD's on a network
- Wi-Fi: Internal 802.11b/g/n, compatible with WiFi-1 Module
- NMEA 0183 Sentences Supported:
  - TX/RX - GPS: Receive GGA, GLL, GSA, GSV, VTG, ZDA; Transmit GGA, GLL, GSA, GSV, VTG, ZDA
  - TX/RX - Navigation: Receive RMC; Transmit AAM, APB, BOD, BWC, BWR, RMC, RMB, XTE, XDR
  - TX/RX - Sonar: Receive DBT, DPT, MTW, VLW, VHM; Transmit DBT, DPT, MTW, VLW, VHM
  - TX/RX - Compass: Receive HDG, HDT, HDM; Transmit HDG
  - TX/RX - Wind: Receive MWV, MWD; Transmit MWV, MWD
  - TX/RX - AIS/DSC*: Receive DSC, DSE, VDM (*AIS sentences are not bridged to or from NMEA 2000)
- NMEA 2000 Connectivity: 1x Micro-C
- PC Connectivity: None
- SD Card Storage: 2 micro SD cards up to 32GB
Video:
- Output: No
- Input: Composite video RCA - single channel via optional adapter
Cartography Charts Supported:
- C-MAP Reveal
- C-MAP Discover
- C-MAP (MAX N, MAX N+)
- C-MAP Genesis
- C-MAP Precision Contour HD (AMER ONLY)
- Navionics (Gold, NAV+, Platinum+)
- Insight (Pro and HD)
- Lowrance Regional Mapping Partners
Autopilot:
- Maneuvers and Turn Patterns: Course Heading, Waypoint, PowerSteer, U-Turn, C-Turn, Spiral, Zigzag, Square, Lazy-S
- Steering Modes: Course Heading, Waypoint, Power Steer

Approvals: FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM
Electrical:
- Power Consumption Max: 2.9A @ 13.8VDC with Full Backlight, Sonar On
- Power Consumption Min: 2.0A @ 13VDC with Full Backlight, Sonar On
- Supply Voltage: 12v DC (10.8-17VDC)
- Recommended Fuse Rating: 3A
Environment:
- Humidity: IEC 60945 Damp Heat 150°F (66°C) at 95% Relative Humidity (48 hrs)
- Operating Temperature Range: 5°F to 131°F (-15°C to 55°C)
- Waterproof Rating: IPX7 with card door closed
GPS:
- Correction: DGPS, WAAS
- GPS Receiver Channels: 16
- Position Accuracy: 20m RMS
- Time to First Fix: 30s
- Update Rate: 10 Hz
MFD:
- AIS: AIS Chart and Radar overlay. Target vessel details.
- Autopilot: Outboard Pilot NAC-1, NAC-2, Ghost Trolling Motor, Motor Guide Xi5/Xi3 Trolling Motor (**requires Motor Guide PinPoint Gateway)
- Cartography Included: C-MAP Discover OnBoard (AMER models), C-MAP World Background (ROW models), Navionics Basemap (AMER and ROW models)
- Digital Switching: Czone, Naviop
- GPS: 10 Hz GPS/GLONASS, WAAS/EGNOS/MSAS
Physical:
- Dimensions: W x H x D - 11.06" x 7.6" x 3.3" (294.61 mm x 193.15 mm x 82.57 mm)
- Mounting Type: Gimbal Bracket, Flush Mount
- Weight: 3.66 lb (1.66 kg)
In the Box:
- Model #000-15999-001:
  - HDS PRO fishfinder/chartplotter (10-inch display screen)
  - C-MAP DISCOVER OnBoard (Preloaded)
  - Manufacturers’ warranty: 2 Years + 3 additional years of upgrade options totaling 5 years
- Model #000-15984-001:
  - HDS PRO fishfinder/chartplotter (10-inch display screen)
  - C-MAP DISCOVER OnBoard (Preloaded)
  - Lowrance Active Imaging HD 3-in-1 Transducer
  - Manufacturers’ warranty: 2 Years + 3 additional years of upgrade options totaling 5 years
