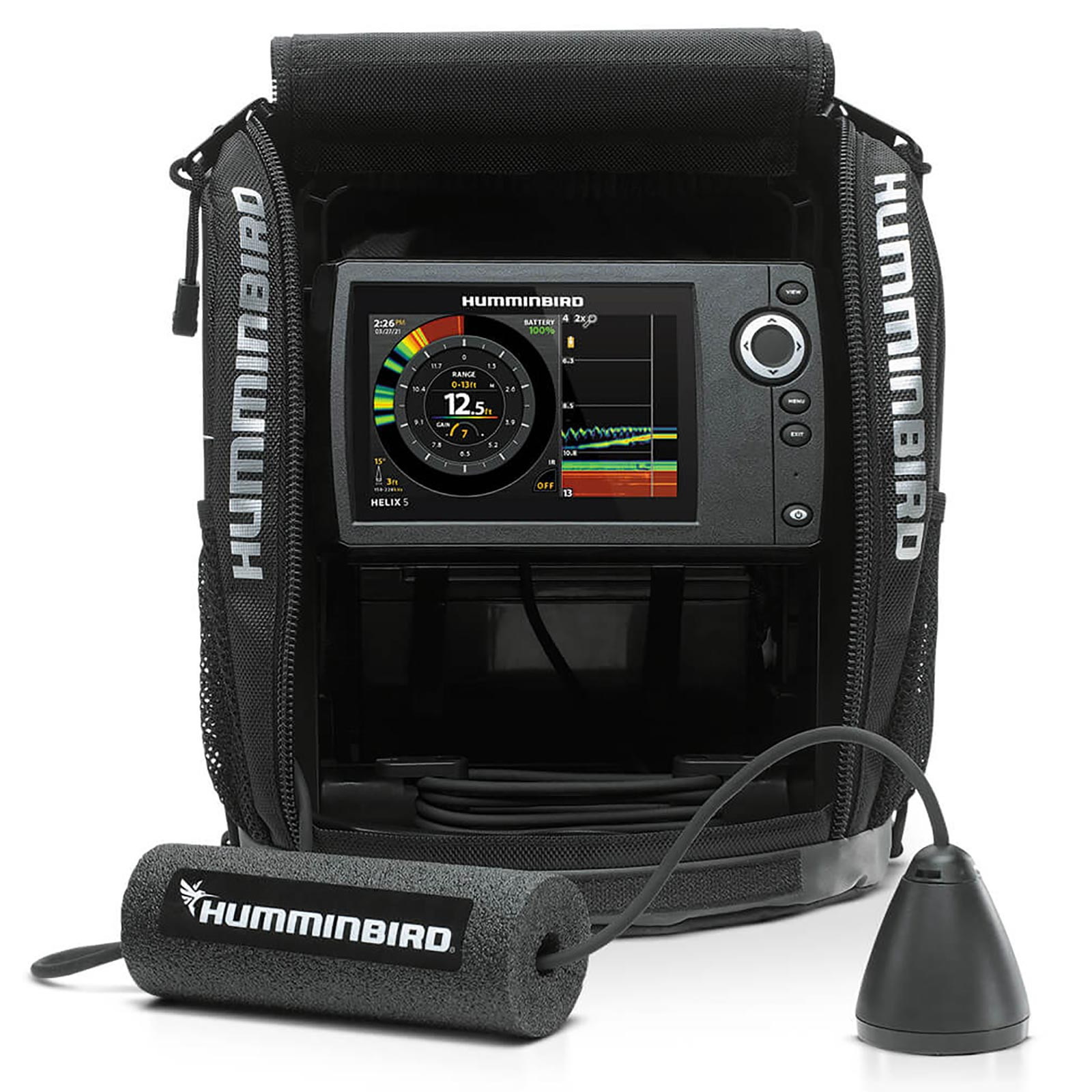

Built with ice anglers in mind, this sonar unit delivers clear, easy-to-read views that help you stay on fish all day. Dual-Spectrum CHIRP Digital Sonar with Interference Rejection cuts through noise from nearby units and shows clean returns of fish, bait, and bottom structure. The five-inch LCD screen offers up to 16× adjustable zoom, making it easy to track fish tight to bottom or suspended under the hole. Jig Charge Mode keeps glow-painted jigs and spoons lit without pulling them out of the water. When the ice season ends, the portable ICE HELIX 5 can pair with an optional transducer (sold separately) for open-water use from a boat or portable setup.

• CHIRP Digital Sonar
  • CHIRP stands for "Compressed High-Intensity Radar Pulse." By covering a wide range of frequencies, CHIRP produces more accurate, more detailed returns of fish, structure, and the bottom.
• Dual-Spectrum CHIRP Sonar
  • By covering a wide range of frequencies, CHIRP produces more accurate, more detailed returns of fish, structure, and the bottom. See high-resolution returns on both the flasher and traditional 2D sonar views at greater depths and range, with target separation down to 3/4 in.
• CHIRP Interference Rejection
  • Adjusting the sonar frequencies with interference rejection helps prevent competing sonar signals from cluttering your screen. 6 settings provide a clear view in both sonar and flasher modes.
• Adjustable Sonar Zoom
  • Allows anglers to hone in on fish, whether they are tight to the bottom or suspended high in the water column. Utilize 2X zoom on the flasher screen or up to 16X zoom on 2D sonar view.
• Ultra-Bright and Detailed High-Definition LCD Display
  • The ICE HELIX screen provides everything you need to know on a crystal-clear screen with adjustable brightness. Whether in a fish house or on open ice, you'll easily be able to see digital depth display, sonar returns, and more exclusive features, all shown in real-time.
• Jig Charge Mode
  • Use your ICE HELIX to charge up your glow-painted spoons and jigs and get back down to the hot bite quickly.
• Portable Shuttle and Carrying Case

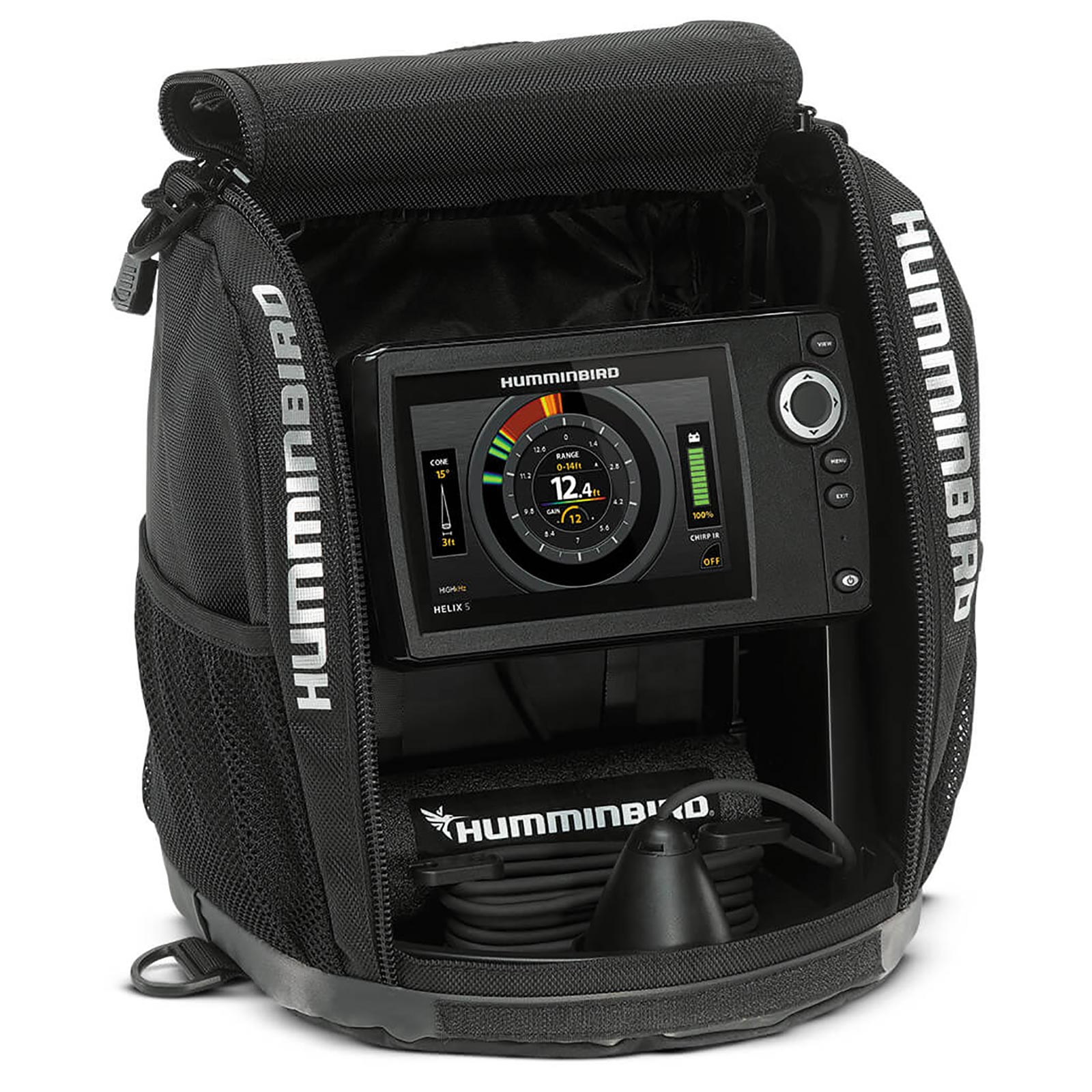

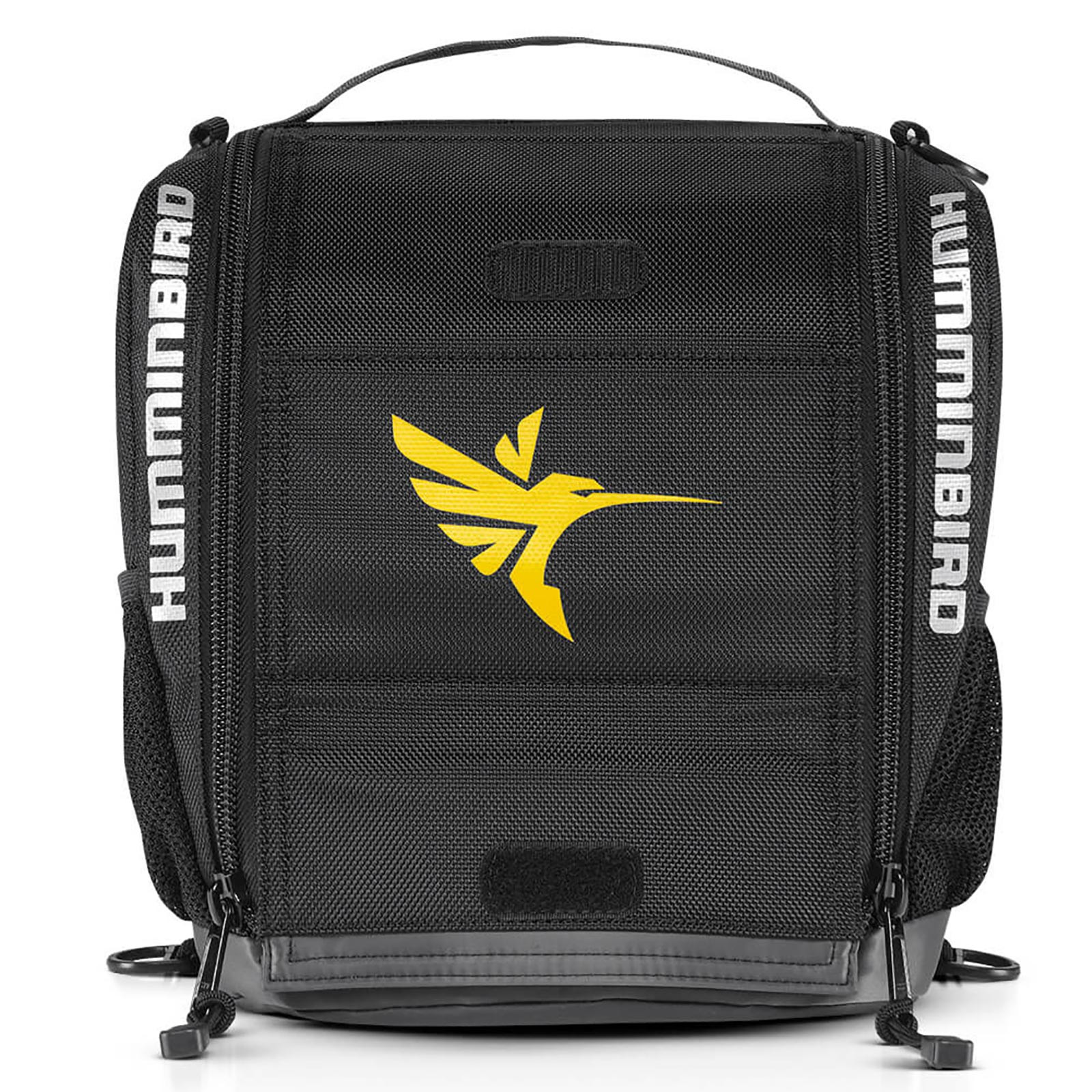

  • The soft-sided carrying case and shuttle mount protect your Humminbird ICE HELIX for safe transport and include built-in cable and transducer management.
• Year-Round Capable
  • The ICE HELIX 5 CHIRP G3 works with all compatible HELIX 5 CHIRP G3 transducers. Simply install an accessory transducer, power cord, and gimbal mount on your boat, and you'll be ready to hit the water even after the ice melts. Sold separately.
• Specifications:
  • Item Number: 411720-1
  • Series: ICE
  • Display Size Diagonal: 5 in.
  • Display Pixel Matrix: 800 H x 480 V
  • Sonar Standard: Dual Spectrum CHIRP
  • Sonar Coverage: 15° and 21° at -3 dB
  • Sonar Optional: 50 kHz, 50/Low Airmar CHIRP
  • CHIRP Frequencies Supported: 50/200 (28 - 75 / 130 - 250 kHz), 83/200 (75 - 155 / 130 - 250 kHz), Full Mode (150 - 220 kHz), Narrow Mode (180 - 240 kHz), and Wide Mode (140 - 200 kHz)
  • Sonar Frequencies Supported: 50/80/200 kHz
  • Depth Sonar: 400 ft.
  • Interface: Keypad Control
  • Features: Dual Spectrum CHIRP, Interference Rejection, Jig Charge Mode, and Portable
  • Memory Card Slot: None
  • Power Draw: 615 mA
  • Power Input: 10.8 - 20 VDC
  • Power Output Peak-to-Peak: 4000 W
  • Power Output RMS: 500 W
  • Screen Snap Shot: Not Supported
  • Sonar Recording: Not Supported
  • Mount Standard: Portable
  • Transducer Mount Location: Portable
  • GPS Chartplotting: Not Supported
  • GPS Trackplotting: Included
  • LakeMaster Compatibility: Yes
  • CoastMaster Compatibility: No
  • Navionics Gold/HotMaps Compatibility: No
  • Navionics Platinum+ Compatibility: No
  • Platinum Compatibility: No
  • Heading Sensor GPS Compatibility: Yes
  • Upgradable Software: No
  • View Preset Keys: No
  • X-Press Menu System: Yes
  • Custom Digital Readout: Yes
  • Custom View Selections: Yes
  • Display Colors Grayscale: 256 Color
  • Display Size: 5 - 7 in.
  • Speed: Not Supported
  • Temperature: Not Supported
  • Temperature Alarm: Yes
  • Temperature Graph: No
  • Transducer Included: XI 9 1521
  • HDMI Compatible: No
  • MEGA Live Compatibility: No
  • UPC: 0082324056710

• Manufacturer's one-year limited warranty
• Includes:
  • ICE HELIX 5 CHIRP G3 fish finder
  • Dual Spectrum CHIRP ICE transducer
  • 9 Ah battery
  • Charger
  • ICE shuttle
  • Hardware
  • Power cable
  • Portable bag

Please note: Once opened, the product cannot be returned, and if defective or damaged, must be returned to the manufacturer for warranty repair or replacement. The ice fishing accessories shown in the images are for display purposes only and are not included.
