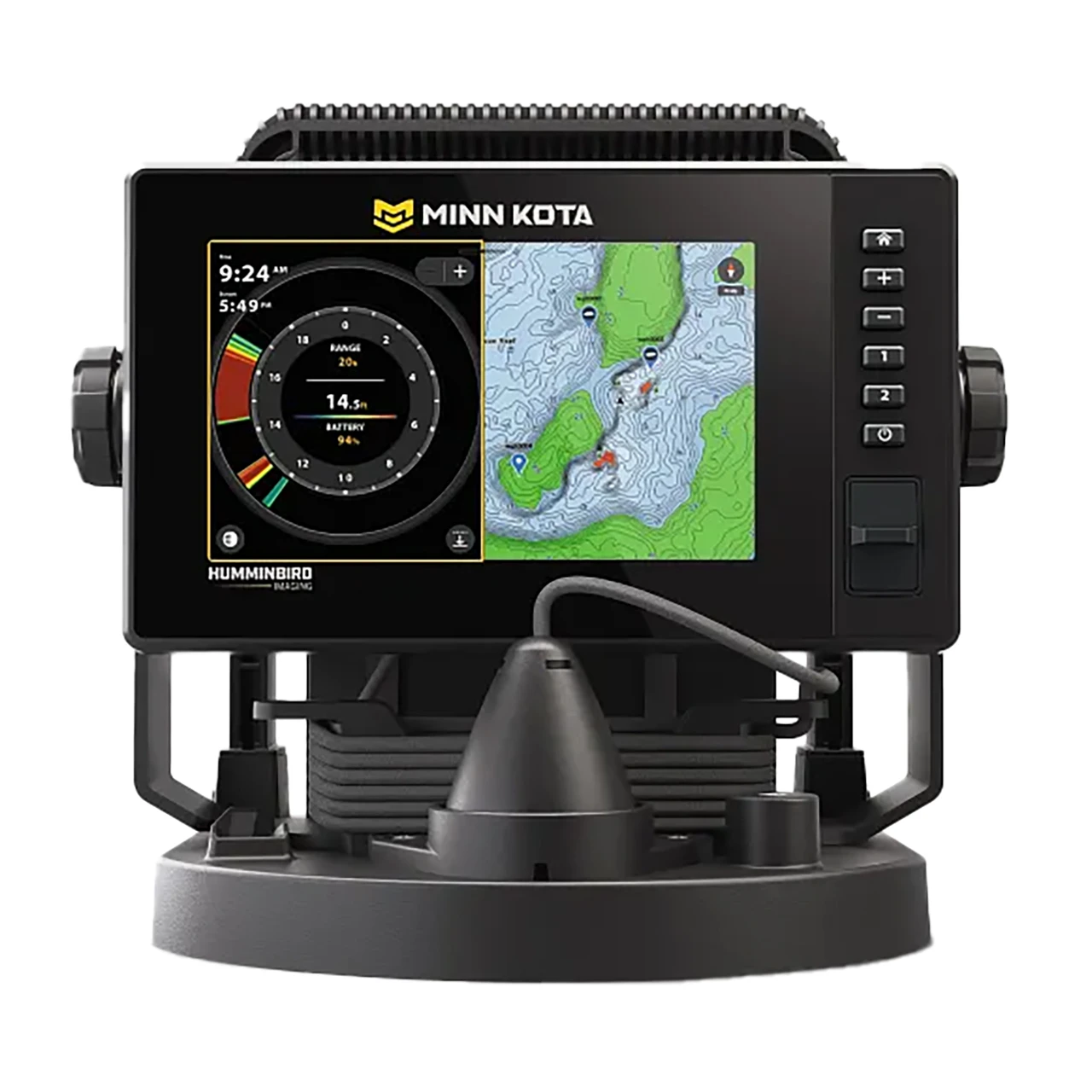

The Minn Kota Humminbird X7 Ice Series Fish Finder delivers detailed sonar performance for locating walleye, perch, crappie, lake trout, and other species beneath the ice. Precise target separation down to 3/4 inch helps distinguish fish, bait, and structure at extended depths, while CHIRP interference rejection reduces sonar clutter from nearby anglers in crowded fishing areas. The high-resolution touchscreen stays sharp in snow, rain, and bright sun, works well while wearing polarized lenses, and responds quickly even in wet conditions. Dedicated Ice Mode and Open Water Mode make the X7 useful beyond hardwater season for anglers who move between ice shelters and boats.

Integrated mapping covers more than 13,000 inland lakes and coastal waterways across the United States and Canada, giving anglers useful navigation detail for reaching fishing areas with greater confidence. One-foot contours, plus depth and shallow-water highlights, help you identify breaks, basins, flats, and other key structure before drilling holes or setting a boat course. Built-in connectivity lets you wirelessly manage compatible equipment across your Minn Kota system, while Wi-Fi simplifies software updates. The included shuttle and durable protective zip bag make transport and storage easier between fishing trips.

• Precise target separation down to 3/4 inch
• CHIRP interference rejection reduces sonar clutter
• Maps over 13,000 U.S. and Canadian waters
• 1-foot contours highlight detailed underwater structure
• Ice Mode and Open Water Mode expand seasonal use
• High-resolution touchscreen stays visible in changing conditions
• Wi-Fi simplifies software updates
• General:
  • Compatible with: MEGA Live, MEGA Live 2, Minn Kota Built-In MEGA DI, Minn Kota Built-In MEGA SI, Minn Kota Talon/Raptor, Minn Kota US2 Sonar, Minn Kota i-Pilot Link, NMEA 2000, One-Boat Network, Radar
  • Mount standard: Gimbal
  • Mount-standard size: 10.689 x 6.574 x 3.177 in.
  • Mount-optional: In-dash mounting kit
  • Mount-optional: 9.365 x 5.523 x 2.25 in.
  • Battery included: 12V 9 Amp hours
• Display:
  • Display size (diagonal): 7 in.
  • Display pixel matrix: 1024H x 600V
  • Display type: Color TFT
  • Display colors grayscale: 24-bit
  • Not compatible with HDMI
• Sonar:
  • Transducer included: XI 14 HW
  • Transducer mount location: Portable
  • Sonar-standard: Dual Spectrum CHIRP
  • Sonar-coverage: 20°, 42°, 60° & (2) 86° at -10dB
  • Sonar-optional: 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low
  • CHIRP-frequencies supported: Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
  • Sonar-frequencies supported: 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA
  • Depth-sonar: 3,500 ft (optional Airmar CHIRP), 600 ft (standard transducer)
  • CHIRP-imaging-frequencies supported: 455 kHz (440-500 kHz), MEGA (1075-1150 kHz)
  • Depth-down imaging: 200 ft (455 kHz), 75 ft (MEGA)
  • Range-side imaging (side-to-side): 400 ft (MEGA), 800 ft (455 kHz)
  • Interface: touch screen, keypad control (Cross Touch)
  • Included with screen snapshot, sonar recording, GPS chartplotting, GPS receiver, GPS trackplotting, NMEA2000, and speed
  • Waypoints, routes, tracks/points: 10,000, 50, 50/20,000
  • Interference rejection: 6 modes
  • Noise rejection: 6 steps
  • Gain: 20 steps
  • Custom digital readout
  • Custom view selections
  • Temperature alarm
  • Temperature - optional
• Technical details:
  • Memory card slot: Dual Micro SD
  • Power draw: 1.5 Amps
  • Power input: 10.8-20 VDC
  • Power output peak-to-peak: 8000 Watts
  • Power output RMS: 1000 Watts
  • Compatible with radar, 5-port Ethernet switch, AIS, autopilot
  • View preset keys
  • X-Press menu system
• In the box:
  • X7 DSC Ice Control Head
  • X7 DSC Ice Shuttle
  • 2D Ice Transducer
  • 10 ft Fish Finder Power Cable
  • 9ah AGM battery with charger
  • Knobs
  • Mounting bracket
• Manufacturer's two-year limited warranty

Made in the USA
