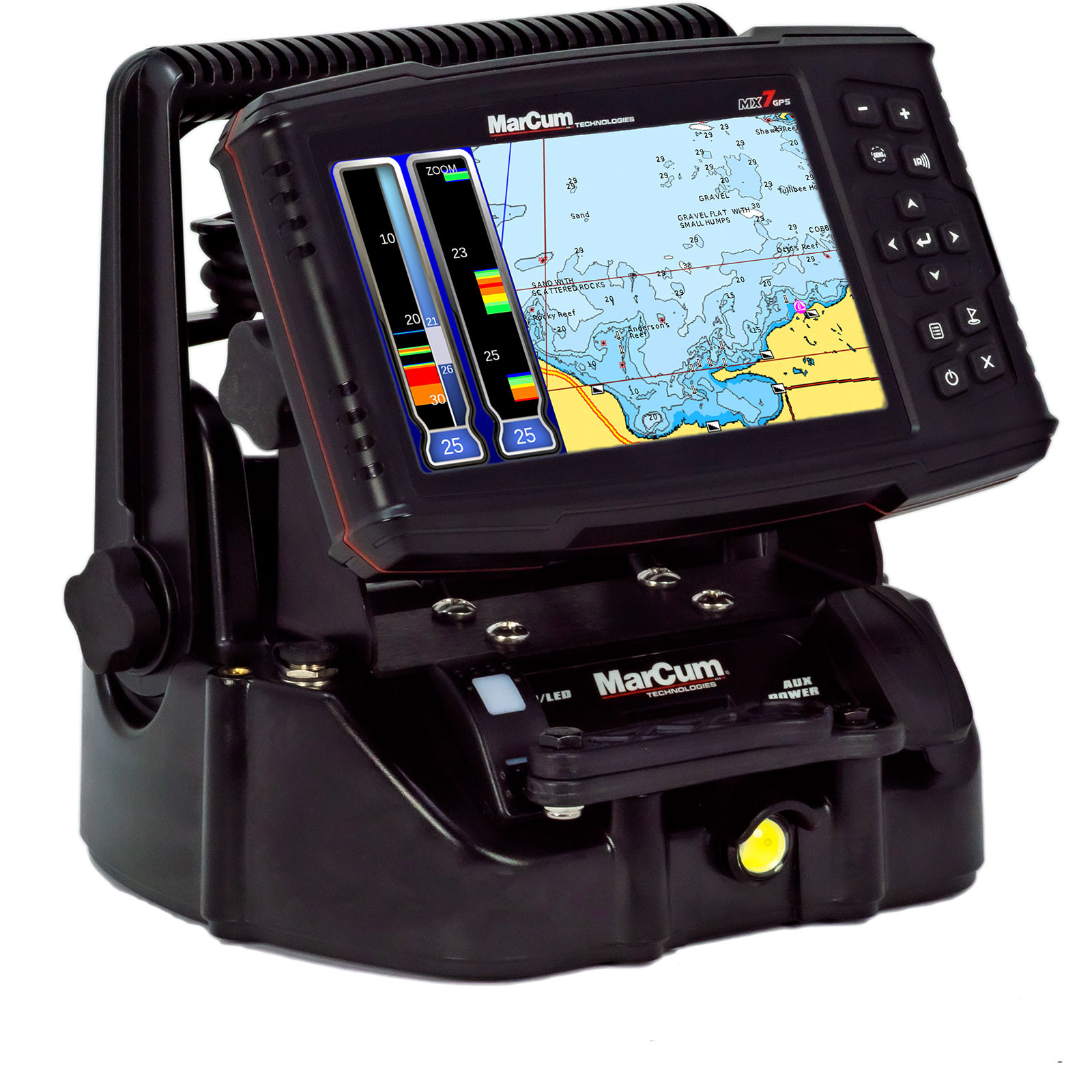

Combine the leading sonar technology with GPS mapping technology, and you get the MarCum MX-7Li Digital Sonar System with GPS and Lithium Shuttle. This unit is an industry first, built with a patented Interface Rejection that allows you to zoom anywhere in the water column. The MX-7GPSLi will have you seeing more than ever before. The reinvented screen shows dynamic movement with lightning-fast sonar reactions! This unit comes with Marcum’s shuttle, which helps you quickly add attachments and makes transporting the unit easy. The MX-7GPSLi has a lithium battery that is lightweight and lasts longer than ever before, perfect for long days out on the ice!

• Advanced Interference Rejection (IR)
• GPS mapping fused with sonar platform
• Zoom adjustable anywhere in the water column
• Lightning fast sonar reaction
• Equipped with a Lithium Shuttle and ready to fish
• Dimensions: 9.5″ x 9.5″ x 11″
• Weight: 7 lbs.

Technical Specifications

• Model Number: MX-7GPSLI
• Display: True-Time 7” LCD Display Luminance up to 1,000 nits
• Resolution: 800 X 480 Pixels
• GPS: Internal GPS Receiver, Navionics Basemap Pre-loaded, Micro SD Card Slot for Navionics Lake Maps (Navionics Card Sold Separately)
• Power: 4800 Watt Peak to Peak Output Power
• Cone Angle: Dual Beam 8/20 Degree Ice Transducer
• Sonar Frequency: 200khz
• Target Separation: Down to 1/2-Inch
• Interference Separation: Patented 12-Step Interference Rejection
• Zoom: Automatic Bottom Lock, Selectable Zoom Windows – 5', 10', 20', 40' , Patented Infinitely Adjustable Zoom (Zoom anywhere throughout the water column)
• Cable: 8 ft. Transducer Cable
• On Screen Display: Any Combination of GPS, Vertical, Vertical Zoom, Flasher, Graph & Graph Zoom Split Screen
• 300′ Dynamic Depth Capability
• Infinite Scale from 10′ and Deeper in 1′ Increments
• Upgradeable Firmware
• Exclusive Dynamic Depth/Range
• Exclusive Sonar Footprint
• Display Adjustable Scroll/Ping Rate
• Target Adjust
• Image Magnifier
• Adjustable Night-Vision Backlight

Includes:

• Lithium Shuttle with Built-in Rechargeable 12-Volt 12-amp
• 3-amp Lithium Charger
• Manufacturer's two year system warranty

Made in the USA
