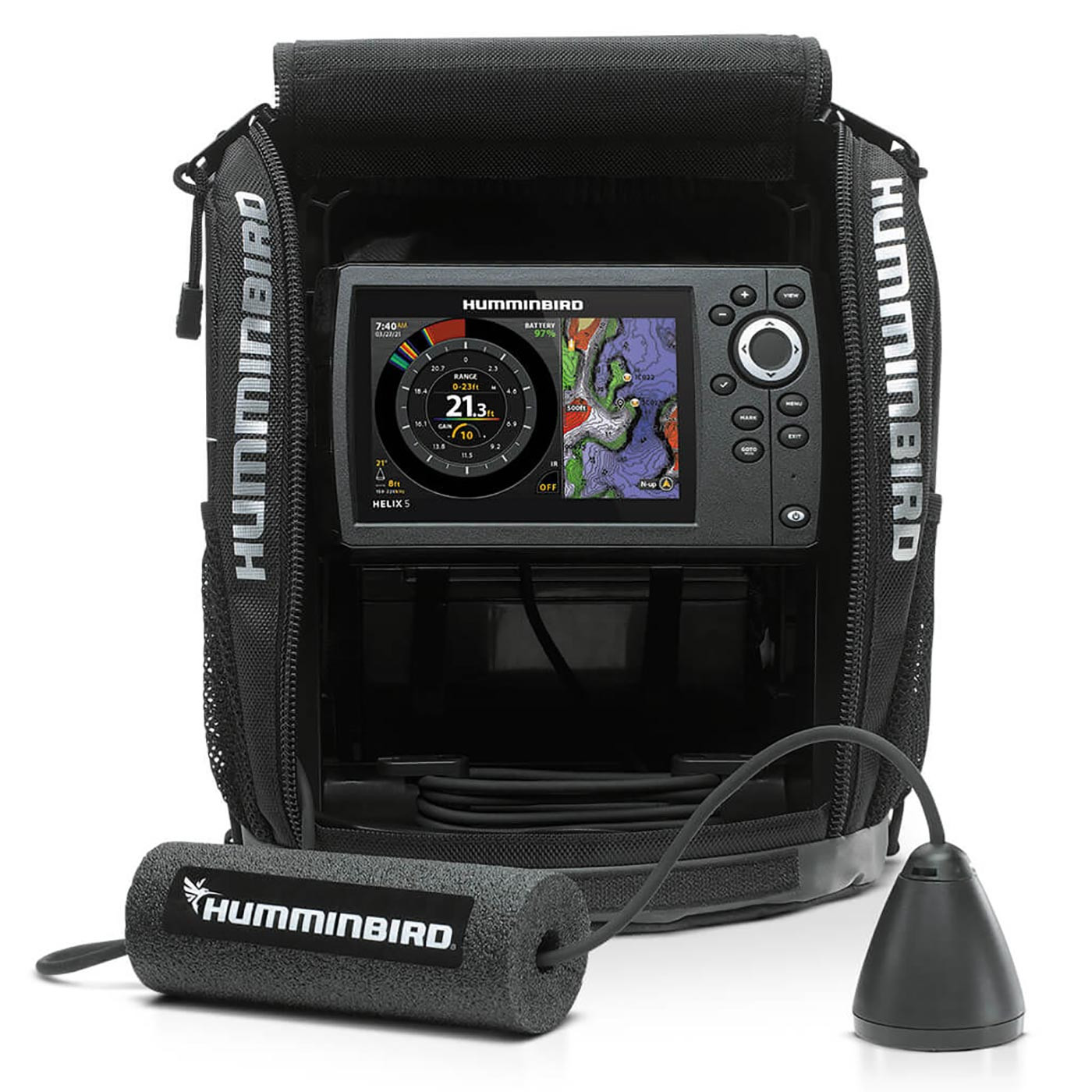

The ICE HELIX 5 features Dual-Spectrum CHIRP sonar with target separation down to 3/4 inch, giving ice anglers a precise view of fish, bottom transitions, and tight-to-structure holding areas below the hole. Built-in GPS with Humminbird’s standard Basemap supports confident navigation and waypoint marking, and is compatible with additional premium mapping options sold separately. AutoChart Live ICE allows anglers to create real-time contour maps while hole-hopping, and Jig Charge Mode helps recharge glow-painted jigs directly under the transducer for better visibility in low-light ice conditions.

• CHIRP Digital Sonar
  • CHIRP stands for “Compressed High Intensity Radar Pulse.” By covering a wide range of frequencies, CHIRP produces more accurate, more detailed returns of fish, structure, and the bottom.
• Dual-Spectrum CHIRP Sonar
  • See high-resolution returns of individual fish, bait, and structure on both the flasher and traditional 2D sonar views at greater depths and range, with target separation down to 3/4 in.
• CHIRP Interference Rejection
  • Adjusting the sonar frequencies with interference rejection helps prevent competing sonar signals from cluttering your screen. 6 settings provide a clear view in both sonar and flasher modes.
• Adjustable Sonar Zoom
  • Allows anglers to hone in on fish, whether they are tight to the bottom or suspended high in the water column. Utilize 2X zoom on the flasher screen or up to 16X zoom on 2D sonar view.
• Internal Precision GPS Built-In
  • Precision GPS provides an accurate position fix, meaning more accurate waypoints and boat positioning for better fishing. Take the guesswork out of finding your fishing spot. Pinpoint your location by marking waypoints for your most productive areas, then navigate to your spot and back safely with GPS tracks.
• Humminbird Basemap Built-In
  • Based on freshwater data from LakeMaster and NOAA, these maps provide a clear view of underwater terrain. Identify buoys, daymarkers, hazards, marinas, and countless other navigation aids and points of interest. You’ll also see contours, depth markings, and, for coastal areas, spot soundings. Humminbird's enhanced standard Basemap provides a clear view of underwater terrain and surrounding points of interest, so you can fish and navigate with total confidence. Includes charts of more than 10,000 lakes.

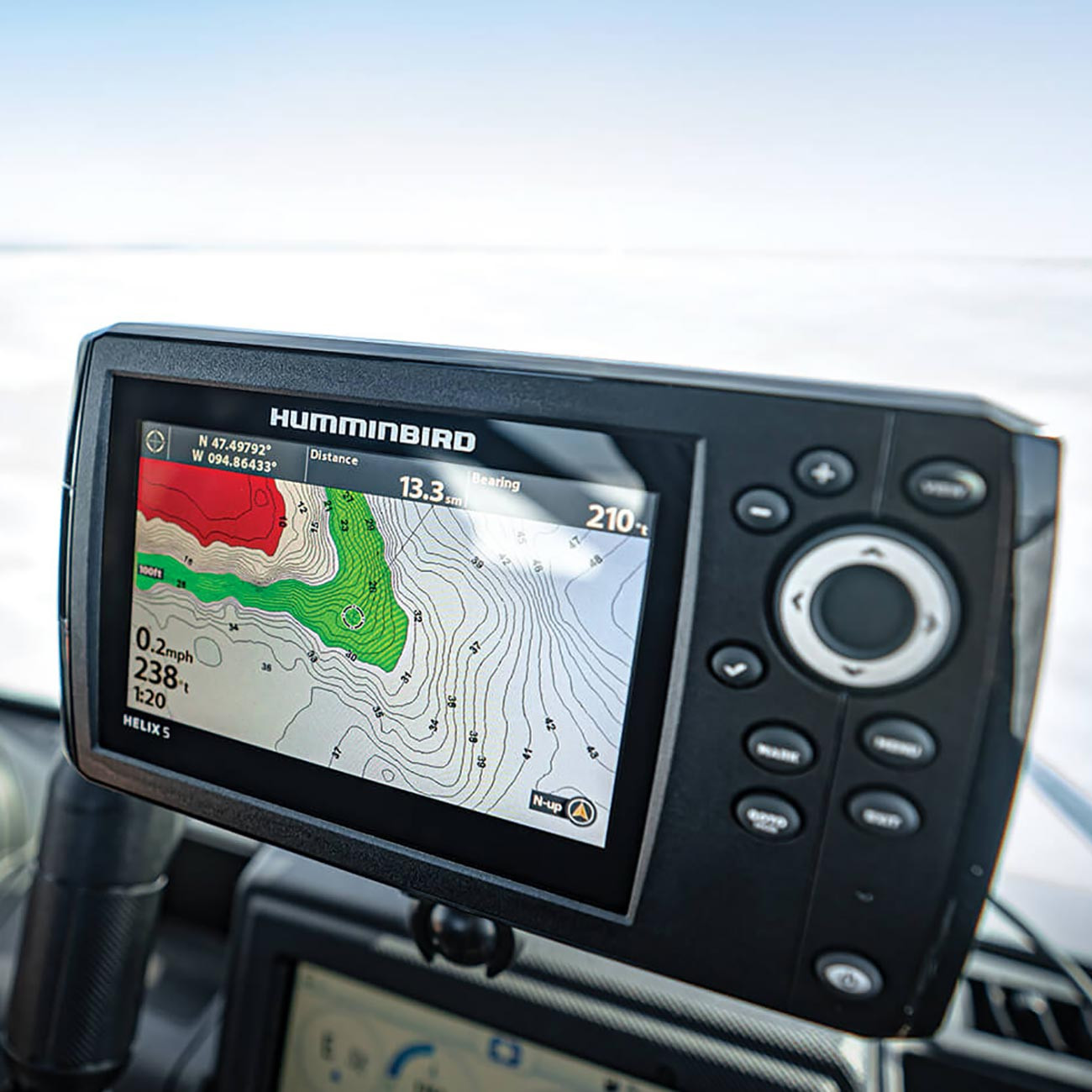

• AutoChart Live ICE
  • Create real-time 1-foot contour maps of your fishing spots to find fish faster. Create maps on ice to show humps and drop-offs, or entire reefs, while using Humminbird LakeMaster features: Depth Highlight, Shallow Water Highlight, and Water Level Offset. Map the water as you drive the boat, and store the data on your fish finder or import it into the AutoChart PC program.
• LakeMaster Compatible
  • LakeMaster lake maps include unrivaled, easy-to-read contours, highlighted depth ranges, scrollable lake lists, and more. Sold separately.
• LakeMaster Plus Compatible
  • These maps include all of the features of LakeMaster with one key addition: aerial photography of high-definition lakes, providing visibility to docks, buildings, and structure. Sold separately.
• SmartStrike Compatible
  • SmartStrike cards combine High Definition LakeMaster lake map data and extensive search algorithms to help you pattern and locate fish at any time of the year. Sold separately.
• CoastMaster Compatible
  • CoastMaster maps deliver unrivaled nearshore and offshore fishing performance. Sold separately.
• 1 Single Micro SD Card Reader Slot
  • Single card reader slot used for premium mapping, software updates, or to save screenshots, sonar recordings, and waypoints from your ICE HELIX.
• Ultra-Bright and Detailed High-Definition LCD Display
  • The ICE HELIX screen provides everything you need to know on a crystal-clear display with adjustable brightness. Whether in a fish house or on open ice, you'll easily be able to see digital depth display, sonar returns, and more exclusive features, all shown in real-time.
• Jig Charge Mode
  • Use your ICE HELIX to charge up your glow-painted spoons and jigs and get back down to the hot bite quickly.

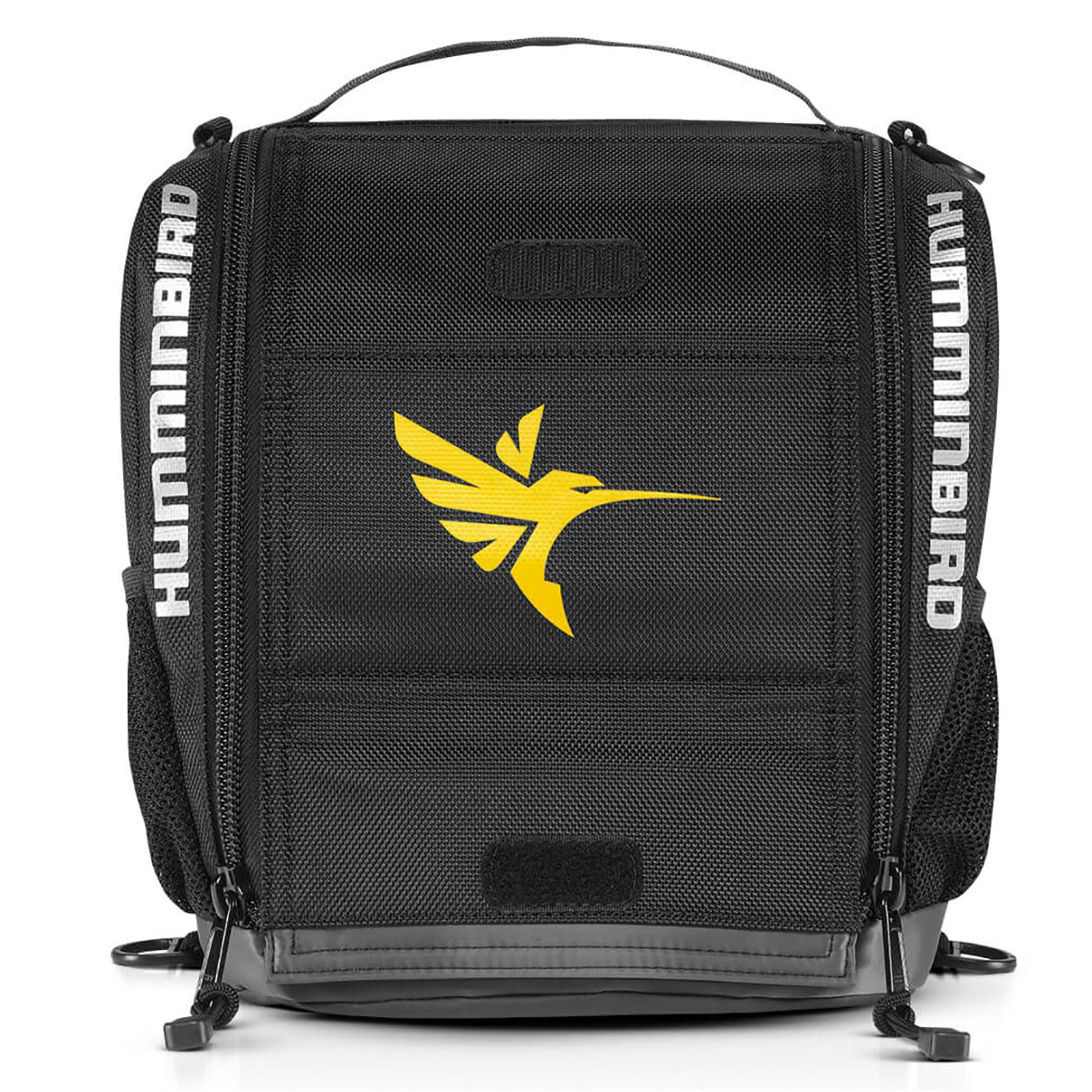

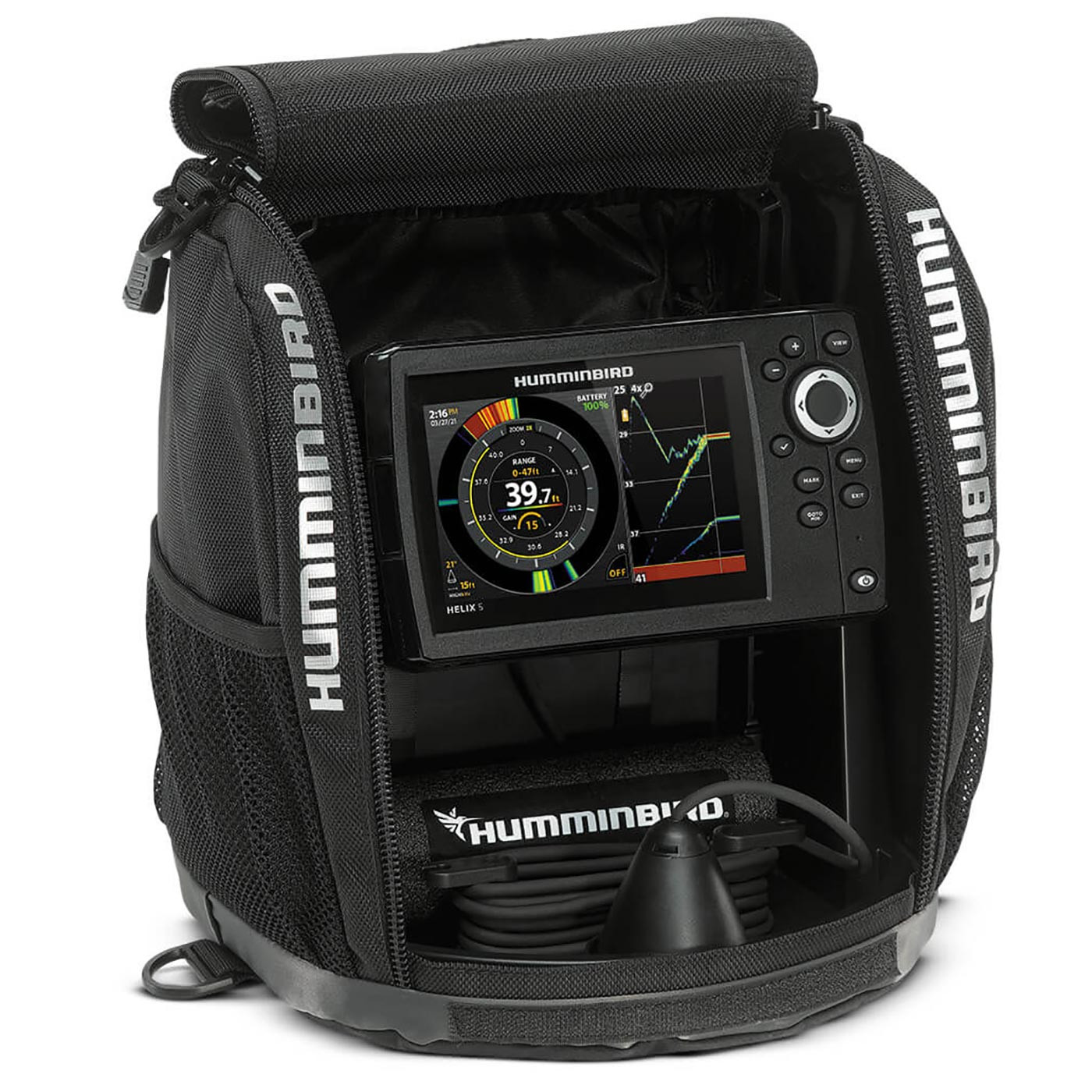

• Portable Shuttle and Carrying Case
  • The soft-sided carrying case and shuttle mount protect your Humminbird ICE HELIX for safe transport and include built-in cable and transducer management.
• Year-Round Capable
  • The ICE HELIX 5 CHIRP G3 works with all compatible HELIX 5 CHIRP G3 transducers. Install an accessory transducer, power cord, and gimbal mount on your boat, and you'll be ready to hit the water even after the ice melts. Sold separately.
• Specifications:
  • Item Number: 411730-1
  • Series: ICE
  • Display Size Diagonal: 5 in.
  • Display Pixel Matrix: 800 H x 480 V
  • Sonar Standard: Dual Spectrum CHIRP
  • Sonar Coverage: 15° and 21° at -3 dB
  • Sonar Optional: 50 kHz, 50/Low Airmar CHIRP
  • CHIRP Frequencies Supported: 50/200 (28 - 75 / 130 - 250 kHz), 83/200 (75 - 155 / 130 - 250 kHz), Full Mode (150 - 220 kHz), Narrow Mode (180 - 240 kHz), and Wide Mode (140 - 200 kHz)
  • Sonar Frequencies Supported: 50/80/200 kHz
  • Depth Sonar: 400 ft.
  • Interface: Keypad Control
  • Features: AutoChart Live Ice, Built In GPS, Built In Mapping, Dual Spectrum CHIRP, Interference Rejection, Jig Charge Mode, and Portable
  • Memory Card Slot: Single Micro SD
  • Power Draw: 615 mA
  • Power Input: 10.8 - 20 VDC
  • Power Output Peak-to-Peak: 4000 W
  • Power Output RMS: 500 W
  • Screen Snap Shot: Included
  • Sonar Recording: Included
  • Mount Standard: Portable
  • Transducer Mount Location: Portable
  • GPS Chartplotting: Included
  • GPS Trackplotting: Included
  • LakeMaster Compatibility: Yes
  • CoastMaster Compatibility: Yes
  • Navionics Gold/HotMaps Compatibility: Yes
  • Navionics Platinum+ Compatibility: Yes
  • Platinum Compatibility: Yes
  • Heading Sensor GPS Compatibility: Yes
  • Upgradable Software: Yes
  • View Preset Keys: No
  • X-Press Menu System: Yes
  • Custom Digital Readout: Yes
  • Custom View Selections: Yes
  • Display Colors Grayscale: 256 Color
  • Display Size: 5 - 7 in.
  • Speed: Included
  • Temperature: Built In
  • Temperature Alarm: Yes
  • Temperature Graph: No
  • Transducer Included: XI 9 1521
  • HDMI Compatible: No
  • MEGA Live Compatibility: No
  • UPC: 0082324056703
• Manufacturer's one-year limited warranty
• Includes:
  • ICE HELIX 5 CHIRP GPS G3 fish finder
  • Dual Spectrum CHIRP ICE transducer
  • 9 Ah battery
  • Charger
  • ICE shuttle
  • Hardware
  • Power cable
  • Portable bag

Please note: Once opened, the product cannot be returned, and if defective or damaged, it must be returned to the manufacturer for warranty repair or replacement. The ice fishing and boating accessories shown in the images are for display purposes only and are not included.
