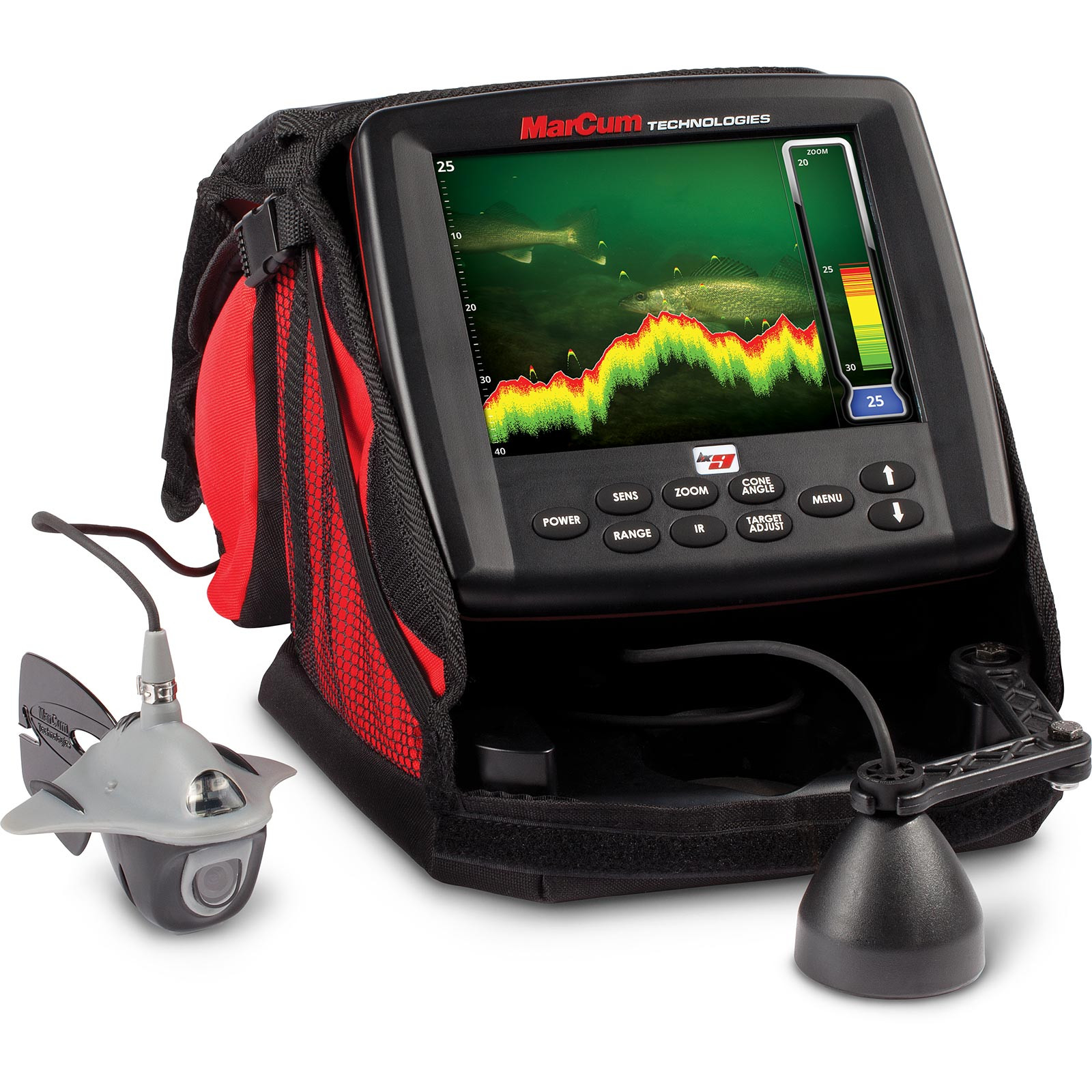

The MarCum LX-9L Sonar Camera System with LiFePO4 12V 10Ah Battery gives anglers a powerful way to interpret what’s happening below the surface in real time. This hybrid system pairs traditional sonar with a live underwater camera, allowing you to compare sonar returns directly to what fish are doing on screen. The bright 8-inch LCD split screen features integrated digital video recording, making it easy to review footage and refine presentations for species such as walleye, perch, crappie, and trout. The included LiFePO4 battery reduces overall weight by three pounds while extending run time, supporting longer days on the ice or water. A switchable dual-beam transducer and high-resolution camera with seventy-five feet of cable provide clear coverage from shallow flats to deeper basins, giving anglers a detailed, reliable view where fish hold and react.

• 8" Flat Panel Color LCD
• Color or Black/White
• 300' Dynamic Depth Capability
• 800 x 600 Pixels

Technical Specifications

• Model Number: LX-9L
• Display: 8" Flat Panel Color LCD, 4 Color Palette Options
• Power: 4800 Watts Peak to Peak Output Power
• Cone Angle: Dual Beam 8/20 Degree Ice Transducer
• Target Separation: Down to 1/2-inch
• Interference Rejection: Patented 12 Step Interference Rejection
• Zoom: Automatic Bottom Lock Selectable Zoom Windows – 5', 10', 20', 40'; Patented Infinitely Adjustable Zoom (zoom anywhere throughout the water column)
• Resolution: 800 x 600 Pixels
• Cable: 8 ft. Transducer Cable

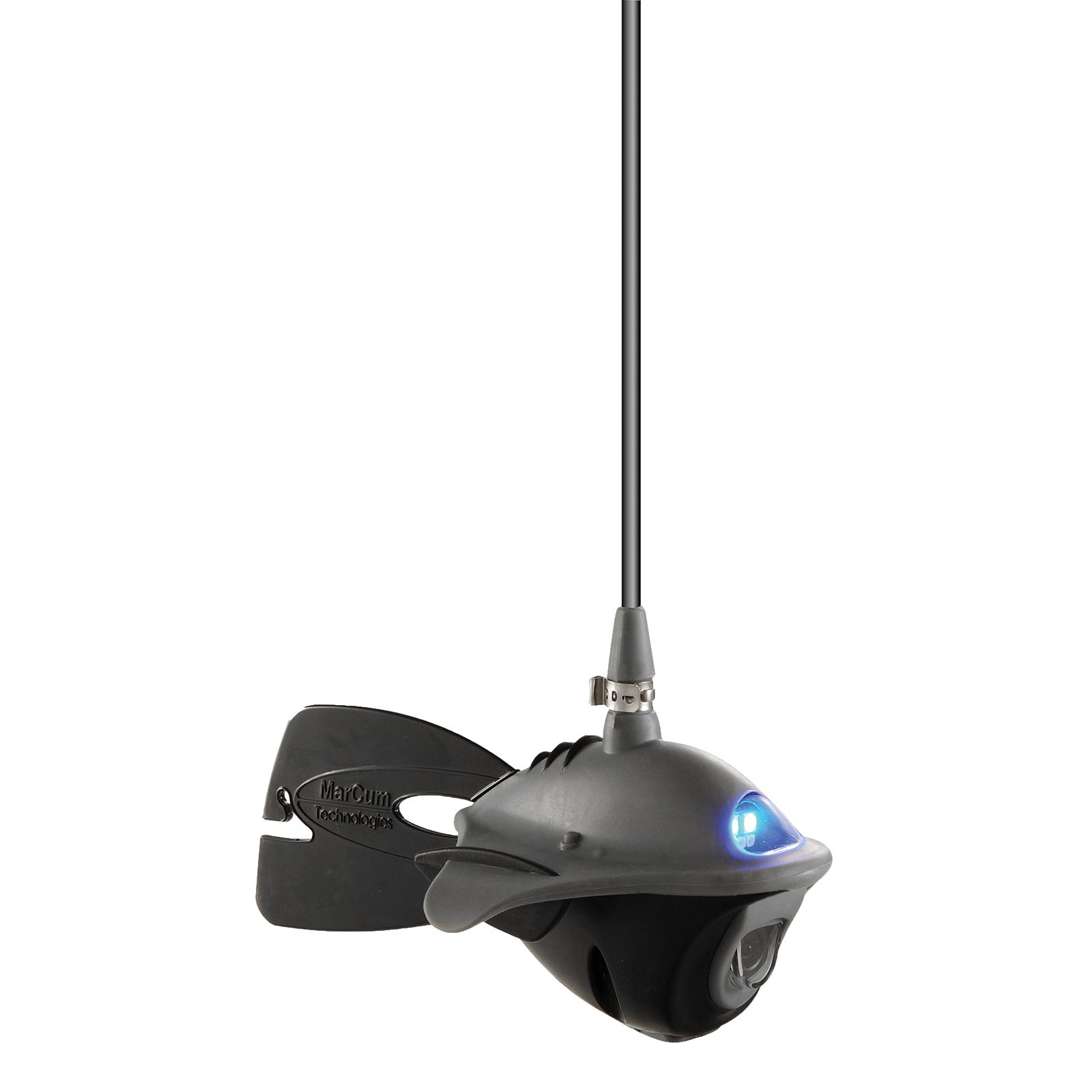

• Camera: Color or Black/White Switchable 1/3" Sensor with a .01 Lux, Dark Water LED Lighting, 75 ft. Camera Cable

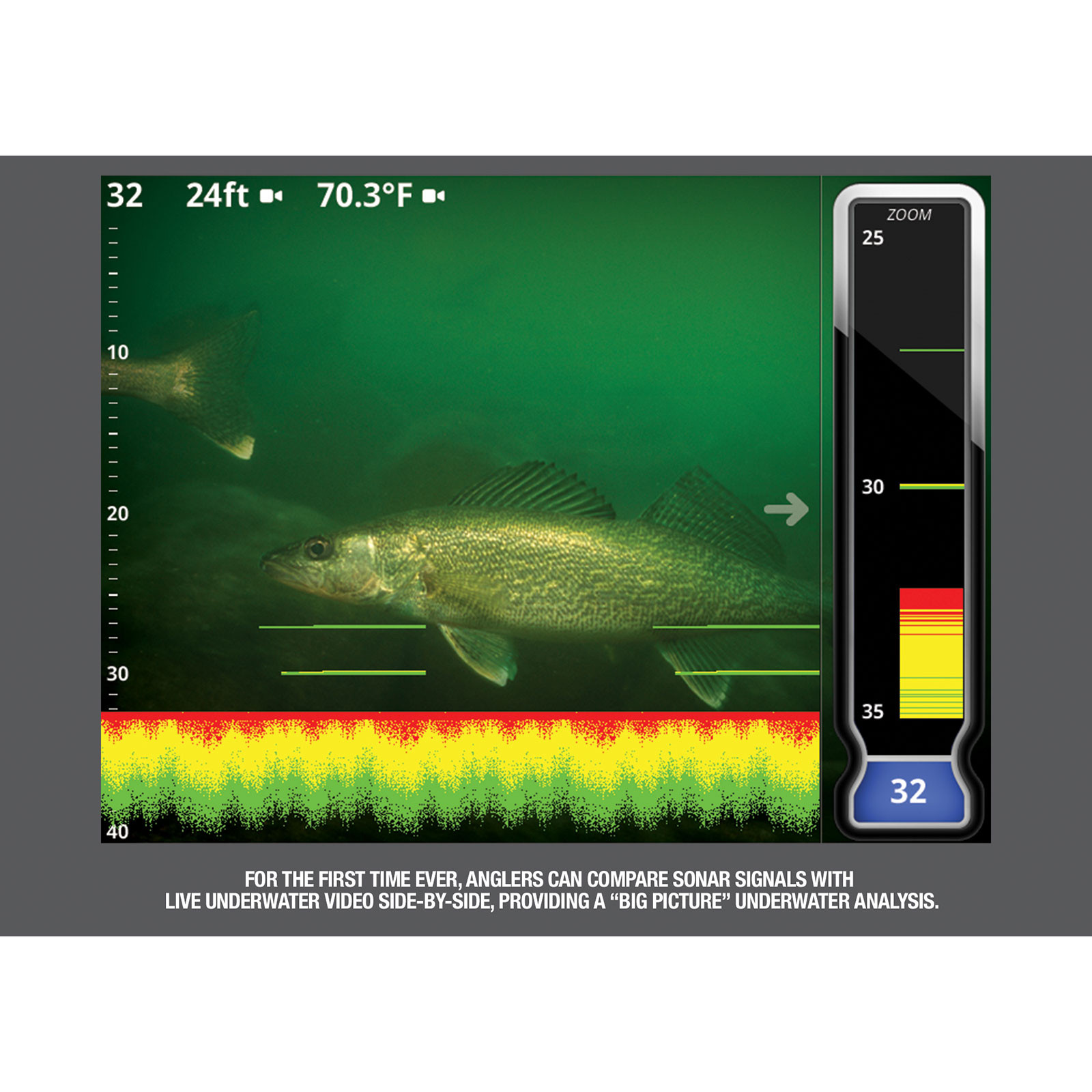

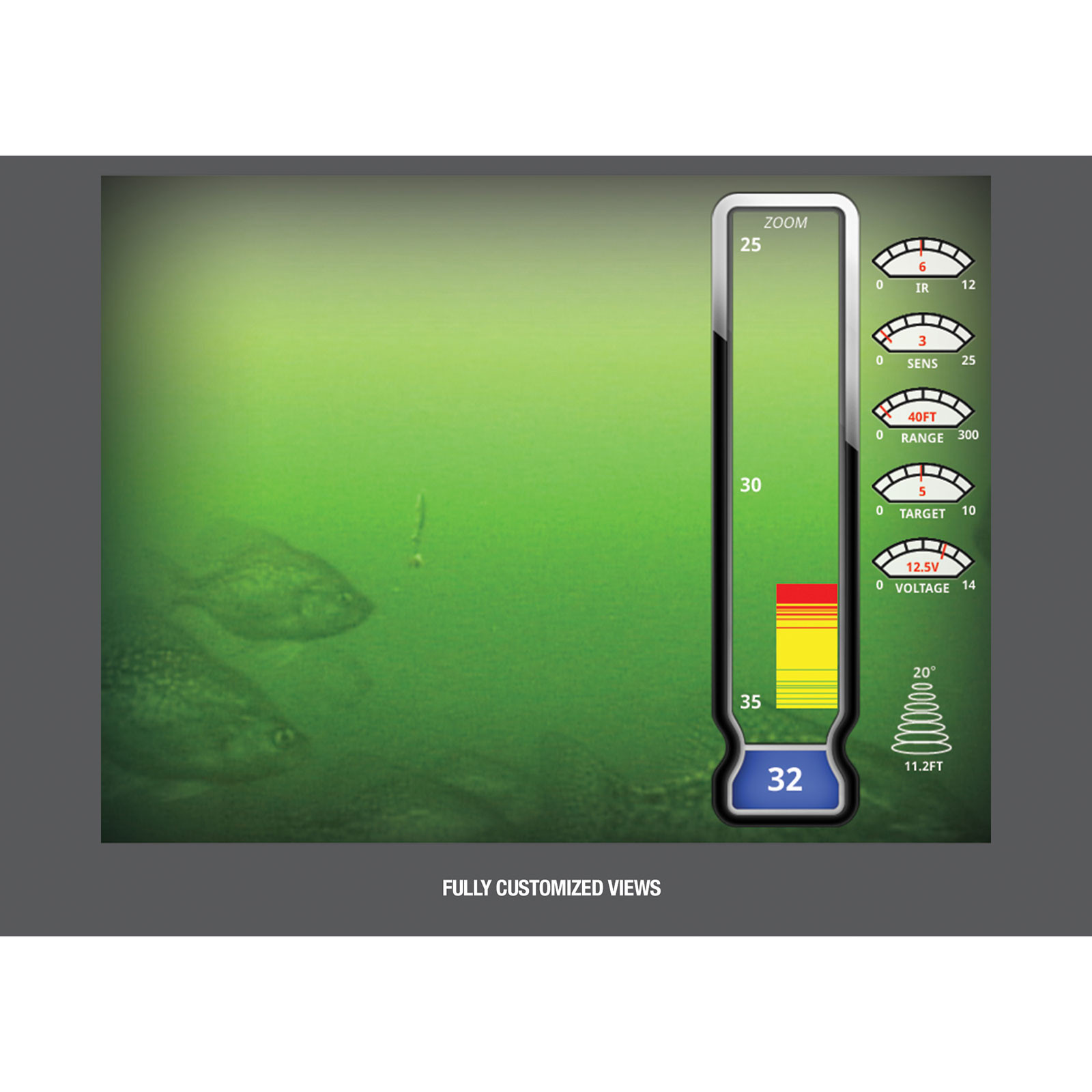

• On Screen Display: (HUD) Heads-Up Display Camera/Sonar Overlay Technology All Camera Functions Any Combination of Vertical, Vertical Zoom, Flasher, Graph & Graph Zoom Split Screen
• 300' Dynamic Depth Capability
• Infinite Scale from 10' and deeper in 1' increments
• Upgradeable Firmware
• Bottom Enhance Capability
• Exclusive Dynamic Depth/Range
• Exclusive Sonar Footprint Display
• Adjustable Scroll/Ping Rate
• Target Adjust Image Magnifier
• Adjustable Night-Vision Backlight
• Video Playback On-Screen

Made in the USA
