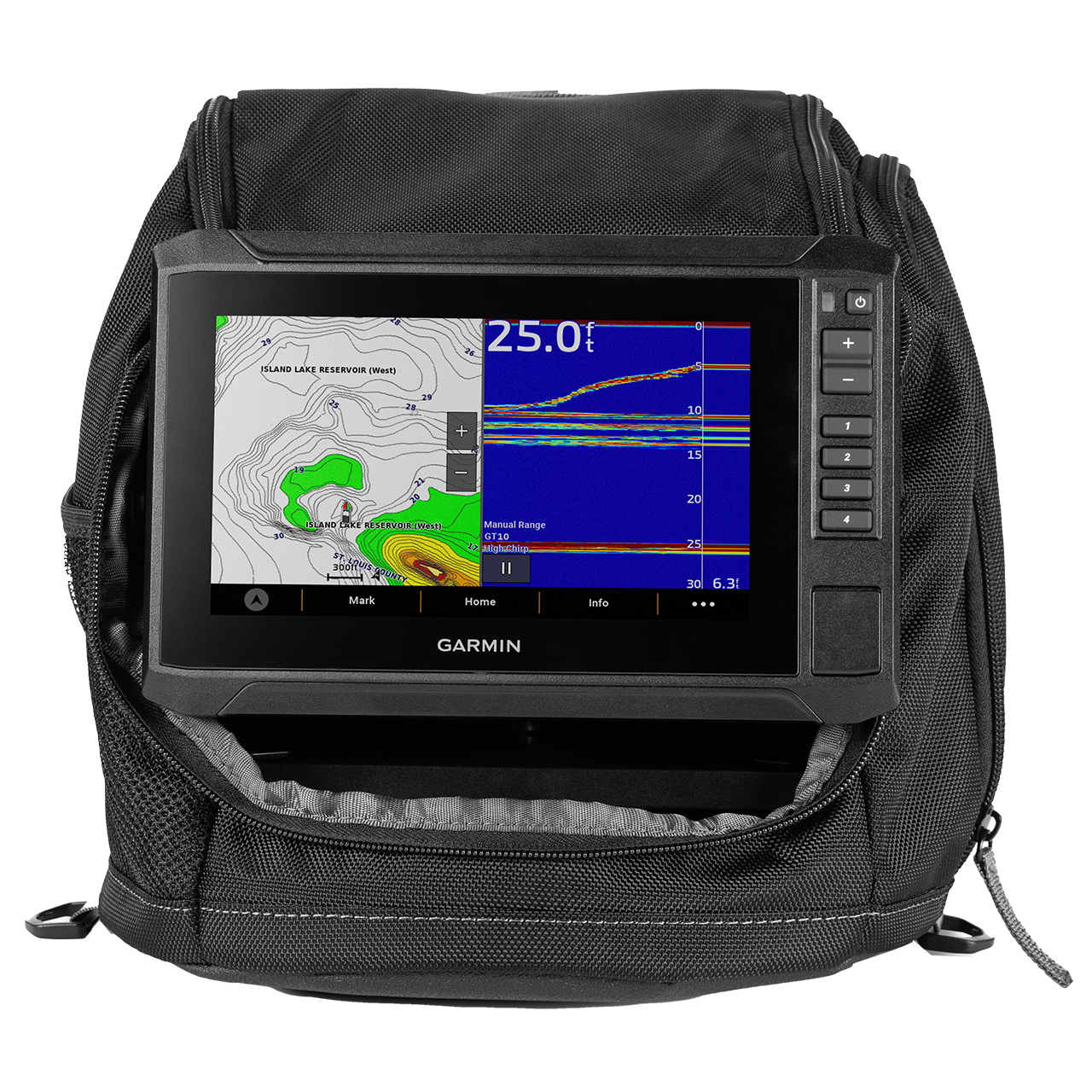

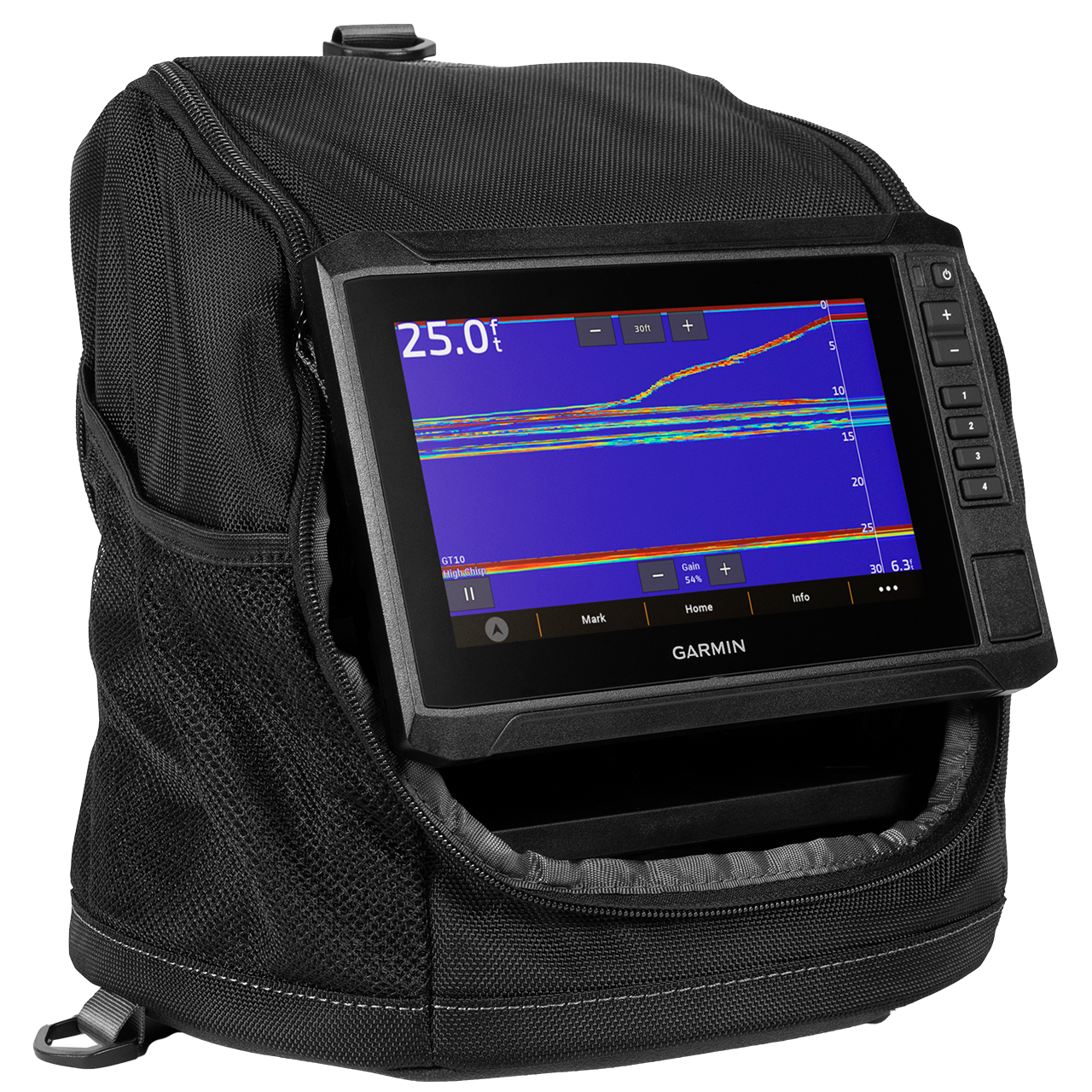

The Garmin ECHOMAP UHD2 73sv Ice Fishing Bundle is an all-in-one package designed to help you conquer the hard water. This UHD2 bundle includes Garmin’s Navionics+ Maps, detailing contour maps for over 23,000 lakes in the U.S. Additionally, you’ll find new fishing spots more effortlessly than ever before and can mark them on the GPS to return later. This bundle includes a GT10HN-IF, a high-narrow CHIRP ice fishing transducer, crystal clear 2D sonar, and a traditional flasher. You'll quickly see the combined sonar flasher on the unit’s bright 7” touchscreen display with excellent target separation, so you won’t miss a single fish that swims into your cone angle.

The 7Ah SLA battery, paired with the ECHOMAP UHD2 73sv, powers your fishing for hours, even in the coldest environments. All ice fishing electronics nestle inside the included rugged portable carrying case, allowing you to move them to your next hole quickly. You may also take the UHD2 73sv Bundle on the open water, as the unit supports SideVü and ClearVü scanning sonar. (The transducer is sold separately.) You will take your fishing adventures to new heights with the Garmin ECHOMAP UHD2 73sv ice fishing bundle, putting more fish topside wherever you go.

• General:
  • Part Number: 010-02684-35
  • Dimensions: 10.5” x 9.5” x 10.5”
  • Weight: 11 lbs.
  • Waterproof
  • Touchscreen
  • Resolution: 800 x 480 pixels
  • Display size: 6.1” x 3.4”, 7.0”
• Maps and Memory:
  • Accepts 1 microSD card; 32 GB max size
  • Waypoints: 5000
  • Track points: 50,000
  • Tracks: 50 saved tracks
  • Navigation Routes: 100
• Built-in Maps:
  • Built-In Auto Guidance: Yes (downloadable via ActiveCaptain app)
  • Garmin Navionics+ Inland & Coastal: Yes
  • Garmin Nacionics+ Inland: Yes
• Ice Fishing Details:
  • Battery Type, Size: SLA, 7Ah
  • Bag Size: Small
  • Included Transducer: GT10HN-IF
  • Transducer Holding Feature: Foam float
• In The Box:
  • Echomap UHD2 73sv chartplotter
  • GT10HN-IF ice fishing transducer
  • Tilt/swivel mount
  • Power cable
  • Portable bag
  • Base/handle
  • Rechargeable battery
  • Battery charger
  • Documentation
• Manufacturer's one-year warranty
