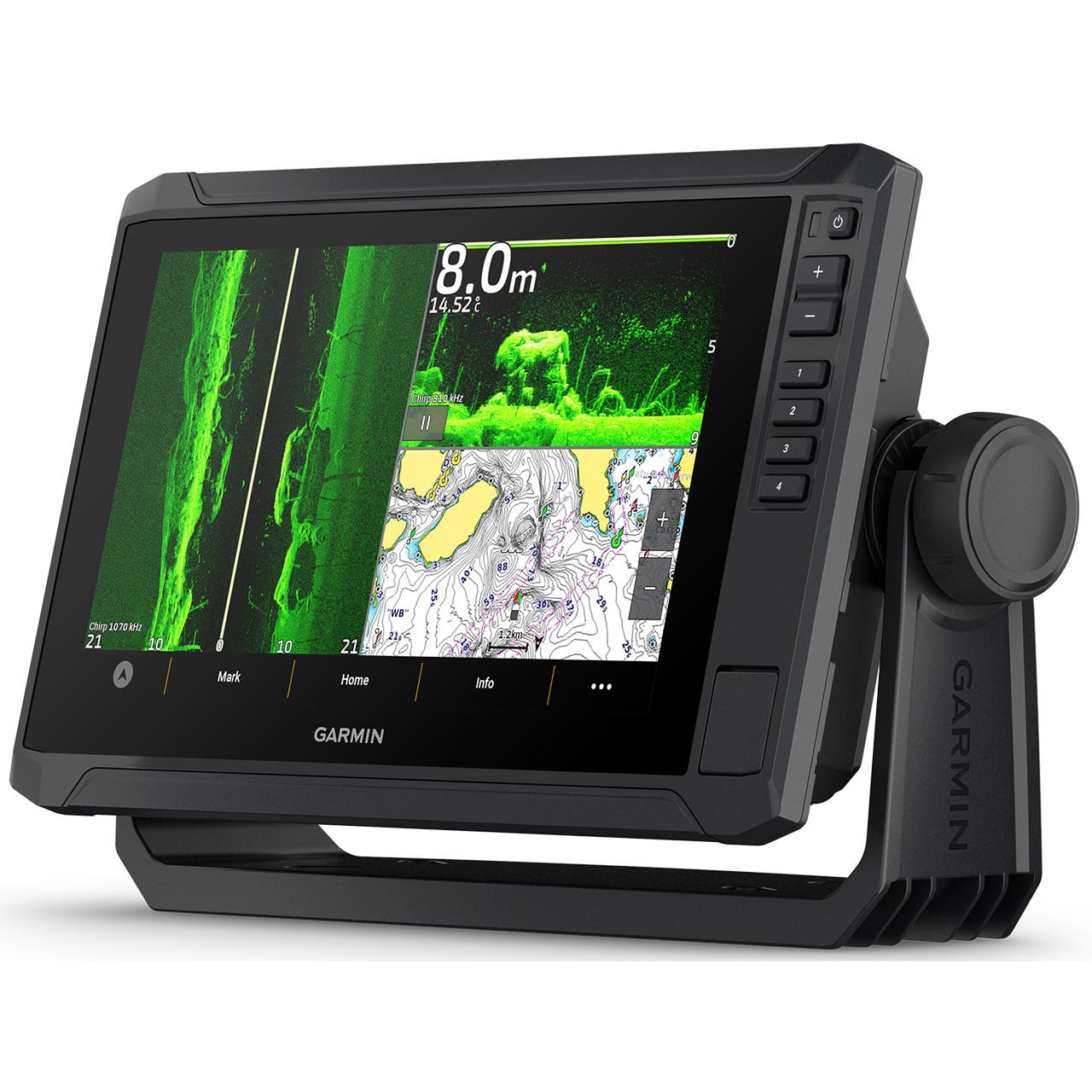

Put local knowledge right at your fingertips with the Garmin ECHOMAP UHD2 94sv Navionics+ US Coastal & Great Lakes Mapping chartplotter and fish finder. Available with or without the GT56-TM transducer, this 9-inch keyed-assist touchscreen display delivers the clarity and control anglers need to find structure, bait, and fish quickly. The UHD2 94sv reveals what’s happening below with three powerful sonar modes—Garmin traditional, ClearVü, and SideVü scanning sonar—and supports LiveScope (sold separately) for real-time target tracking. High-contrast, vivid color palettes make it easy to separate fish arches from structure and bottom transitions in any conditions.

Preloaded Garmin Navionics+ US Coastal & Great Lakes charts include a one-year subscription for daily updates, depth range shading, and detailed contours to help you stay dialed in across familiar and new waters. Built-in Wi-Fi lets you share sonar, waypoints, and routes with other ECHOMAP UHD2 units on board and connect to Garmin’s free ActiveCaptain mobile app for OneChart access, Quickdraw Community data, software updates, and Auto Guidance+ navigation. Multi-band GPS maintains pinpoint accuracy even in challenging areas, while wireless integration with the Garmin Force trolling motor allows you to follow routes, lock onto waypoints, and control speed right from your display. From nearshore trolling to Great Lakes structure fishing, the ECHOMAP UHD2 94sv keeps you in command and on the fish.

• Garmin Part Numbers:
  • Without transducer: 010-02689-00
  • With transducer: 010-02689-01
• Keyed-assist 9 in. touchscreen
• Three sonar types:
  • Garmin traditional
  • ClearVü
  • SideVü
• Detailed and distinguished targets with high-contrast vivid color palettes
• Navigate confidently with built-in Garmin Navoionics+ mapping
• Share data with other ECHOMAP UHD2 chartplotters wirelessly
• Technical Specifications:
  • Dimensions: 10.4 x 6.5 x 3.2 in.
  • Input: touchscreen with keyed assist
  • Display Size: 7.8 x 4.5 in.
  • Display Resolution: 1034 x 600 pixels
  • Display Type: WSVGA, TN
  • Waterproof Rating: IPX7
  • Mounting Options: bail or flush
• Maps & Memory:
  • Accepts Data Card: 1 microSD card - 32 GB maximum size
  • Waypoints: 5,000
  • Track Points: 50,000
  • Tracks: 50 saved tracks
  • Navigation Routes: 100
• Sensors:
  • Built-in Receiver: 10 Hz
  • NMEA 2000 compatible: Yes
  • GPS: Yes
  • Glonass: Yes
  • Galileo: Yes
  • Beidou: Yes
  • Supports WAAS: Yes
  • Supports multi-band,muti-constellation GPS: Yes
• Built-in maps:
  • Built-in Auto Guidance+: Yes - downloadable via ActiveCaptain app
  • Garmin Navionics+ Inland and Coastal: Yes
  • Tide Tables: Yes
• Chartplotter Features:
  • AIS: Yes
  • DSC: Yes
  • Supports Fusion-Link Compatible radios: Yes
  • ActiveCaptain Compatible: Yes
  • Sailing Features: Yes
• Sonar Features & Specifications:
  • Sonar Display: Yes
  • Power Output: 500 W
  • Traditional Sonar (Dual Frequency Beam): built-in (single channel CHIRP, 50/70/83/200 kHz, L, M, H CHIRP)
  • ClearVu: built-in 260/455/800/1000/1200 kHz
  • SideVu: built-in 260/455/800/1000/1200 kHz
  • Panoptix Sonar: Yes
  • Livescope: Yes
• Connections:
  • NMEA 200 Ports: 1
  • Garmin Marine Network Ports: 1
  • 12-pin Transducer Ports: 1
  • Bluetooth pairing: Yes
  • ANT+ (connectivity): Yes
  • Garmin Wi-Fi Network (local connection): Yes
• Electrical Features:
  • Power Input: 9 to 18 Vdc
  • Typical Current Draw at 12 Vdc: 1.72 A
  • Maximum Current Draw at 12 Vdc: 3.5 A
  • Maximum Power Usage at 10 Vdc: 20.7W
• In the Box without Transcuder:
  • ECHOMAP UHD2
  • Power cable
  • Tilt mount with quick release cradle
  • Hardware
  • Documentation
  • 12-pin sounder to 8-pin transcuder cable
• In the Box with Transcuder:
  • ECHOMAP UHD2
  • Power cable
  • Tilt mount with quick release cradle
  • Hardware
  • Documentation
  • GT56-TM transducer
• Manufacturer's one-year warranty

Note: LiveScope sonar cannot be shared wirelessly between two ECHOMAP UHD2 chartplotters. Auto Guidance+ is for planning purposes only and does not replace safe navigation operations.
