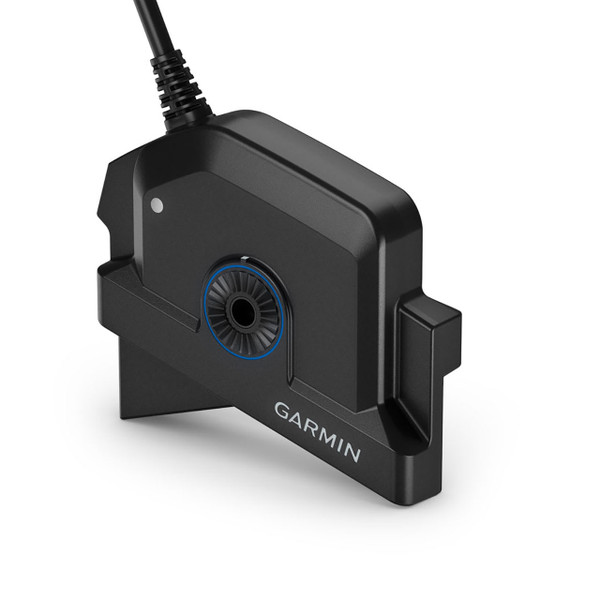

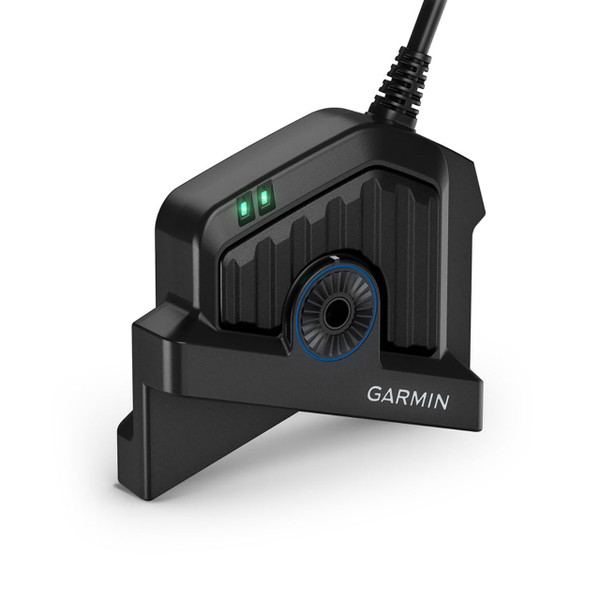

Garmin LiveScope 2 LVS44 Transducer

The Garmin LiveScope 2 LVS44 Transducer gives anglers real-time sonar clarity for tracking bass, walleye, crappie, lake trout, stripers, and baitfish while watching lures move through the water column. Clear imagery and improved target separation help anglers tell fish from brush, weeds, rock, bait, and bottom detail, making it easier to stay on active targets and adjust presentations.

With detailed imagery at castable range and bottom tracking out to 250 feet, the LVS44 helps cover deep structure, suspended schools, open-water basins, and long-range targets with confidence. Wider viewing angles in forward, down, and perspective modes expand underwater coverage, while fast processing speeds show fish reacting to jigs, swimbaits, drop shots, spoons, and minnows in real time so anglers know when to pause, speed up, or set the hook. No black box keeps installation simple, and the sonar automatically turns off when the transducer comes out of the water.

• Clear real-time sonar imagery helps anglers track fish, lures, bait, and structure
• Improved target separation makes it easier to distinguish fish from cover and bottom detail
• No black box needed for a cleaner, easier installation
• Detailed imagery at castable range supports precise lure placement and presentation control
• Bottom tracking reaches out to 250 feet for deep-water and long-range coverage
• Sonar automatically turns off when the transducer comes out of the water
• Wider viewing angles in forward, down, and perspective modes help scan more water
• Fast processing speeds show fish reacting in real time so anglers know when to set the hook
• Specifications:
  • Transducer forward beam width: 20 x 165 in.
  • Transducer down, perspective beam width: 20 x 180 in.
  • Cable length: 18 ft. (5.5 m)
  • Number of pins: 7
  • Dimensions: 6.3 x 5.6 x 1.9 in.
  • Weight: 3.93 lbs.
  • Operating temperature range: 0 C to 40 C
• Electrical:
  • Power input: 10-35 V
  • Power usage: 32 W max
  • Fuse: 7.5 A
  • Compass-safe distance: 4 in.
• Sonar features:
  • Frequency 600 kHz - 1050 kHz
  • Transmit power: 392 W
  • Maximum down and forward depth: 250 ft.
  • Sonar type: live
  • Target separation at 100 ft.: 12.6 in.
  • Target separation at 30 ft.: 5.7 in.
  • Perspective mode mount included
  • Water detection transmit control
• Networking and connections:
  • Garmin marine network ports: 1 BlueNet (small connector) with GMN1 Adapter
  • 2-wire power connection
• In the box:
  • LiveScope 2 LVS44 transducer
  • Adjustable perspective shaft mount for LiveScope 2 transducers

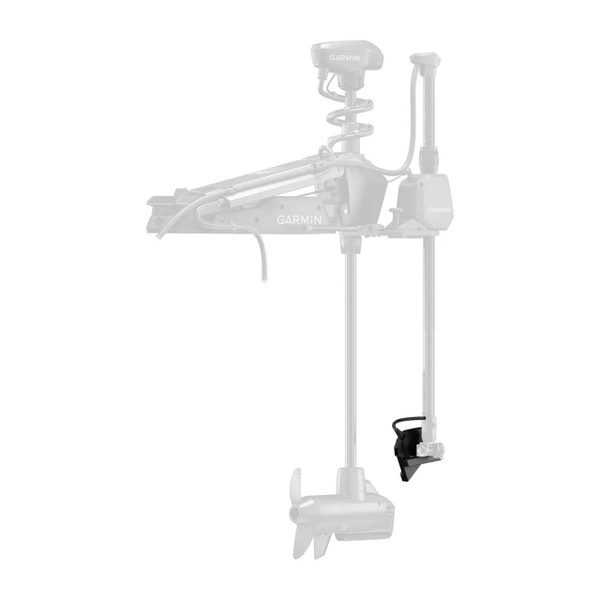

  • Trolling motor barrel mount
  • Power/network cable with adapter
  • Adapter disc for the Force Kraken trolling motor LiveScope transducer mount
  • Hardware
  • Documentation
• Manufacturer's two-year limited warranty
