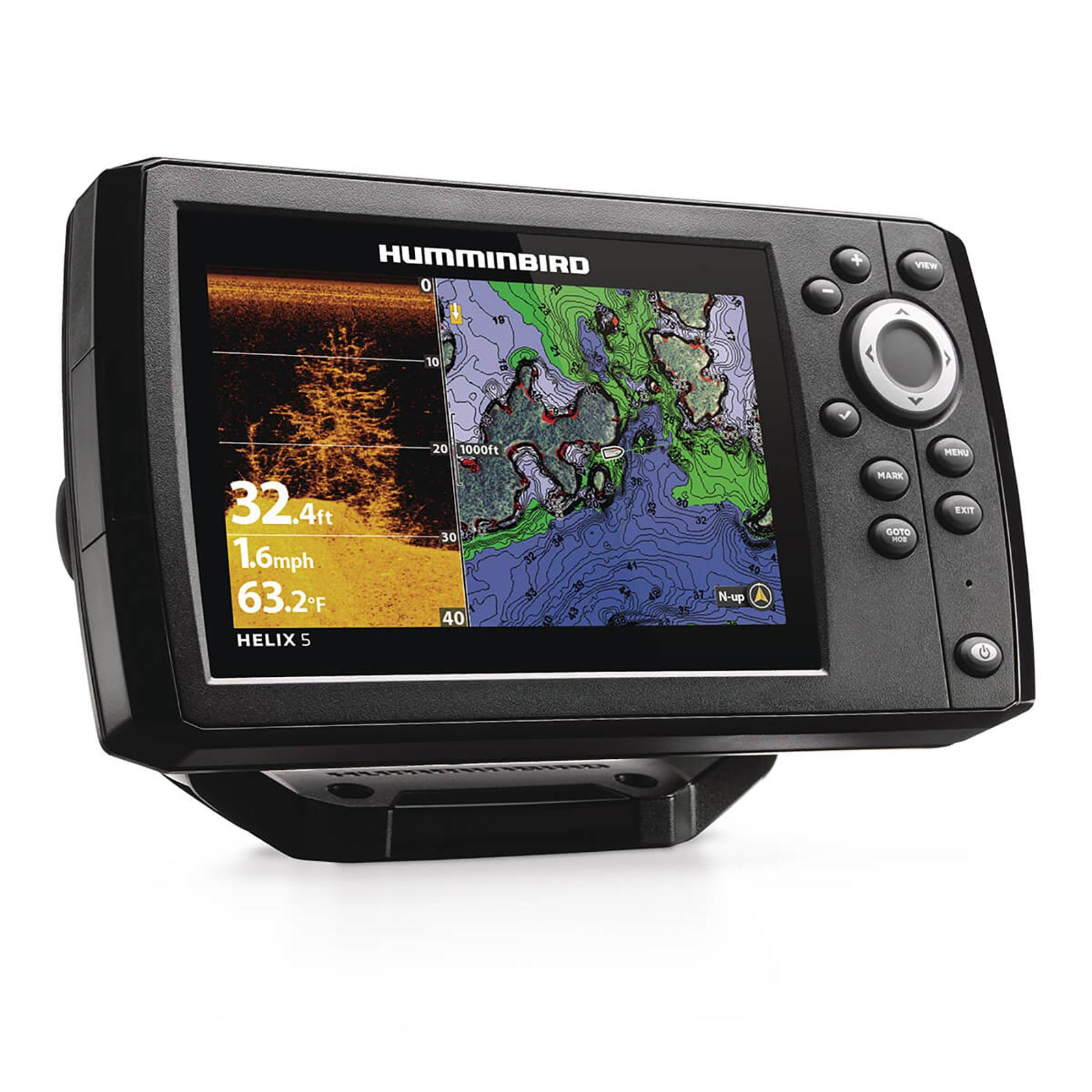

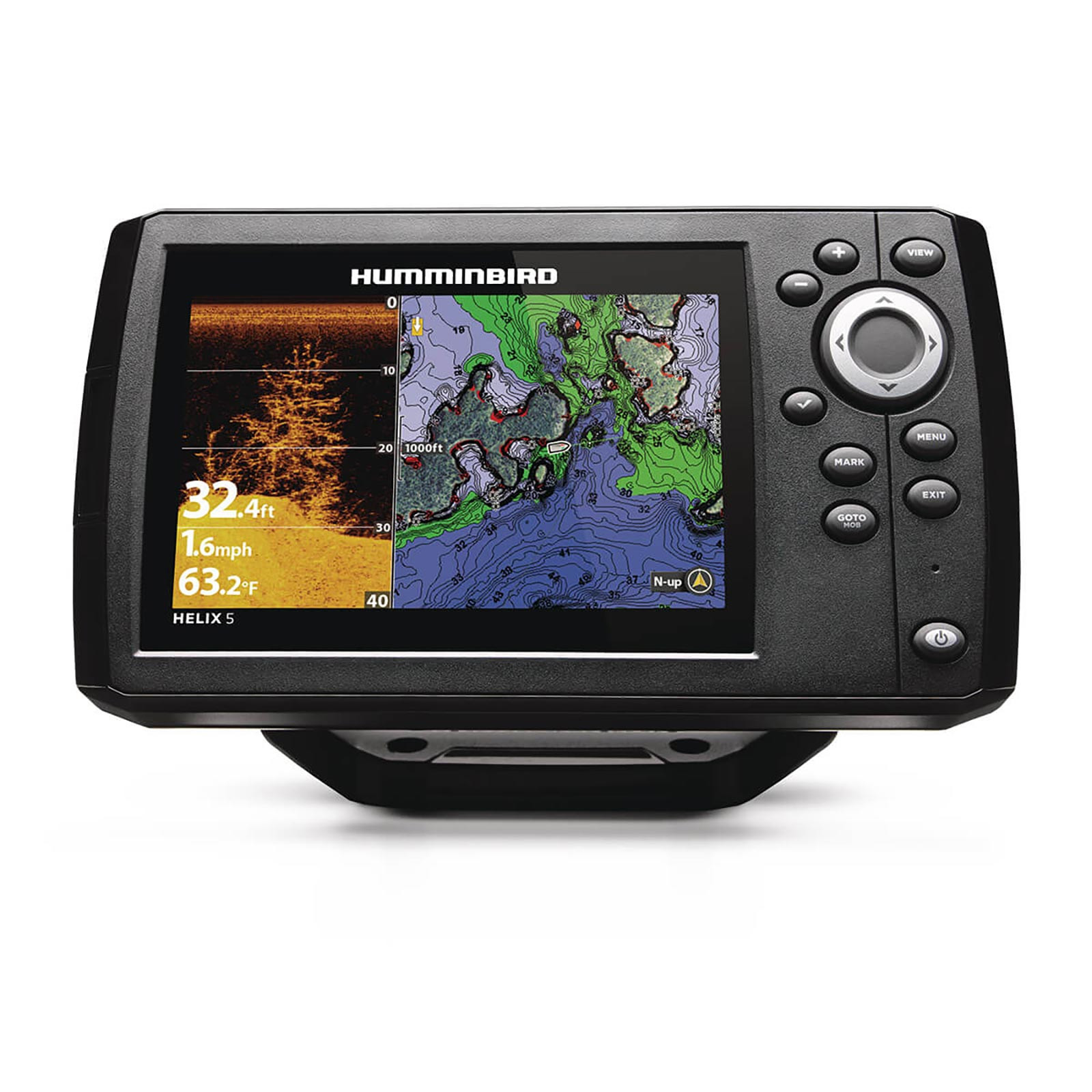

Humminbird HELIX 5 CHIRP DI GPS G3 Fish Finder

Item#: 199946

Orders over $59 ship for free. Details

3 In Stock

1 In Stock

Product Details

The Humminbird HELIX 5 CHIRP DI GPS G3 Fish Finder is for the adventurer for whom there is no such thing as "too early" or "too far." The HELIX 5 series makes the voyage to your fishing destination easy to navigate and view with its uncompromising five-inch widescreen color display. The CHIRP DI GPS G3 Fish Finder comes loaded with relentlessly efficient and powerful Dual-Spectrum CHIRP 2D sonar, internal GPS with Humminbird Basemap, and AutoChart Live built-in. This HELIX 5 CHIRP unit is also compatible with several options in Humminbird and Navionics premium fishing charts (sold separately). Command your vessel to your favorite fishing hotspots no matter the hour or distance with a Humminbird HELIX 5 CHIRP DI GPS G3 Fish Finder!

  • Keypad Control
    • Access the preloaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any conditions.
  • CHIRP Down Imaging
    • Filter out noise and clutter for a clear view beneath your boat. CHIRP Digital Sonar processing of Down Imaging Sonar means that you'll see great detail to make finding the fish simple and easy.
  • Dual-Spectrum CHIRP Sonar
    • Provides highly detailed fish arches and a clear view of fish-holding structure and the bottom. Dual-Spectrum CHIRP 2D Sonar offers two ways to search: Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.
  • Humminbird Basemap
    • Enhanced Basemap provides you with a clear view of underwater terrain and surrounding points of interest, allowing you to fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
  • Premium Chart Compatible
    • Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster and CoastMaster products, as well as your choice of compatible Navionics charts. Sold separately.
  • AutoChart Live
    • Create real-time maps of your fishing spots with access to patented Humminbird LakeMaster features. Map depth contours, bottom hardness, and vegetation as you drive your boat. Comes standard with eight hours of built-in recording time and is compatible with AutoChart Zero Line SD cards.
  • Internal GPS
  • Single (1) Micro SD Slot
  • Specifications:
    • Series: HELIX
    • Display Size Diagonal: 5 in.
    • Display Pixel Matrix: 800 H x 480 V
    • Sonar Standard: CHIRP Down Imaging and Dual-Spectrum CHIRP
    • Sonar Coverage: 20°, 42°, and 60° at -10 dB
    • Sonar Optional: 50 kHz and 50/Low Airmar CHIRP
    • CHIRP Frequencies: 83/200 (75 - 155 / 130 - 250 kHz), Full Mode (150 - 220 kHz), Narrow Mode (180 -240 kHz), and Wide Mode (140 - 200 kHz)
    • Sonar Frequencies: 50/83/200/455 kHz
    • Depth Sonar: 1,200 ft. (standard transducer) and 3,000 ft. (optional 50 kHz)
    • CHIRP Imaging Frequencies: 455 kHz (420 - 520 kHz)
    • Depth Down Imaging: 350 ft.
    • Interface: Keypad Control
    • Features: Built-In GPS, Built-In Mapping, Down Imaging, Dual-Spectrum CHIRP
    • Memory Card Slot: Single Micro SD
    • Compatible With: AIS, AutoPilot, and Minn Kota US2 Sonar
    • Power Draw: 615 mA
    • Power Input: 10.8 - 20 VDC
    • Power Output Peak-to-Peak: 4000 W
    • Power Output RMS: 500 W
    • Screen Snap Shot: Included
    • Sonar Recording: Included
    • Mount Standard: Gimbal
    • Mount Standard Size: 7.55 x 4.64 x 3.3 in.
    • Mount Optional Size: 7.55 x 4.28 x 1.13 in.
    • Transducer Mount Location: Transom
    • GPS Chartplotting: Included
    • GPS Trackplotting: Included
    • LakeMaster Compatibility: Yes
    • CoastMaster Compatibility: Yes
    • Navionics Gold/HotMaps Compatibility: Yes
    • Navionics Platinum+ Compatibility: Yes
    • Platinum Compatibility: Yes
    • Heading Sensor GPS: No
    • Upgradable Software: Yes
    • View Preset Keys: No
    • X-Press Menu System: Yes
    • Custom Digital Readout: Yes
    • Custom View Selections: No
    • Display Colors Grayscale: 16-Bit
    • Display Size: 5 - 7 in.
    • Speed: Included
    • Temperature: Built In
    • Temperature Alarm: Yes
    • Temperature Graph: Yes
    • Transducer Included: XNT 9 HW DI T
    • HDMI Compatible: No
    • MEGA Live Compatibility: No
    • UPC: 0082324056321
  • Included in Pack:
    • Control head
    • Transom mount transducer
    • Power cable
    • Gimbal mounting bracket and mounting hardware
  • Manufacturer's one-year limited warranty

The Humminbird HELIX 5 CHIRP DI GPS G3 Fish Finder is made in the U.S.A.

Please note: Once opened, the product cannot be returned and if defective or damaged must be returned to the manufacturer for warranty repair or replacement.
