The Garmin Panoptix LiveScope XR LVS62 Transducer and GLS 10 System deliver long-range, real-time sonar clarity for anglers who rely on precision to track fish and structure. With an extended range up to 500 feet in freshwater and 350 feet in saltwater, this setup reveals fish movement around the boat while maintaining sharp detail close to the hull. The system supports Forward, Down, and Perspective modes, allowing anglers to monitor suspended fish, structure, and bottom transitions in real time. Advanced features like Reverse Range Offset and Compress Range keep near- and far-field targets visible simultaneously, while stabilization technology keeps the image steady even in rough water. With multiple vivid color palettes and seamless GLS 10 integration, this system supports precise decision-making when targeting species such as crappie, bass, walleye, and open-water predators.

• Extended live sonar range up to 500 ft freshwater and 350 ft saltwater
• Forward, Down, and Perspective views with included mounting hardware
• Reverse Range Offset and Compress Range enhance near and far target visibility
• Seven vivid color palettes with stabilized real-time imaging
• Specifications:
  • Transducer beam width: 20° x 135°
  • Transducer cable length: 20 ft
  • 21 pins
  • GLS 10 sonar black box dimensions: 9.7” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm)
  • LVS62 transducer dimensions: 8.20” x 3.98” x 2.76” (20.8 x 10.1 x 7.0 cm)
  • GLS 10 sonar black box weight: 4.3 lbs (2.0 kg)
  • LVS62 transducer with cable weight: 3.92 lbs (1.78 kg)
  • LVS62 transducer without cable weight: 2.66 lbs (1.21 kg)
  • Water rating: IPX7
  • GLS 10 Black Box temperature range: Operating: -15 C to 70 C
  • LVS62 Transducer temperature range: Operating: 0 C to 40 C
  • Power input: 10-32 V
  • Power usage: 21 W typical, 58 W max
  • Fuse: 7.5 A
  • Compass-safe distance: 7" (0.18 m)
  • Frequency: 265 - 550 kHz
  • Transmit power: 500 W
  • Live sonar
  • Target separation at 100 ft.: 22"
  • 1 (small connector) Garmin marine network ports
• Compatible devices:
  • ECHO-MAP UHD Series
  • GPSMAP Series
  • ECHO-MAP Ultra Series
  • Force Kraken Trolling Motors
  • LiveScope Ice Fishing Bundle
  • LiveScope Ice Fishing Bundle LI
  • Volvo Penta Glass Cockpit System
• Includes:
  • LiveScope GLS 10 sonar black box

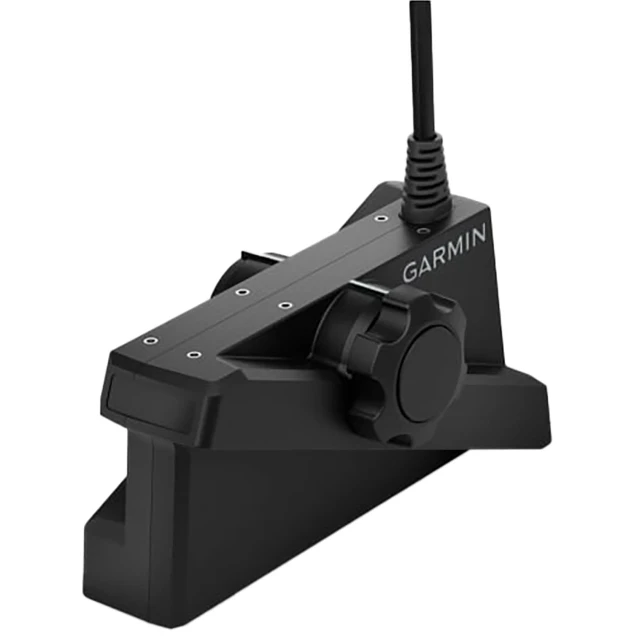

  • LiveScope XR LVS62 transducer
  • Perspective mount (LiveScope XR LVS62 transducer only)

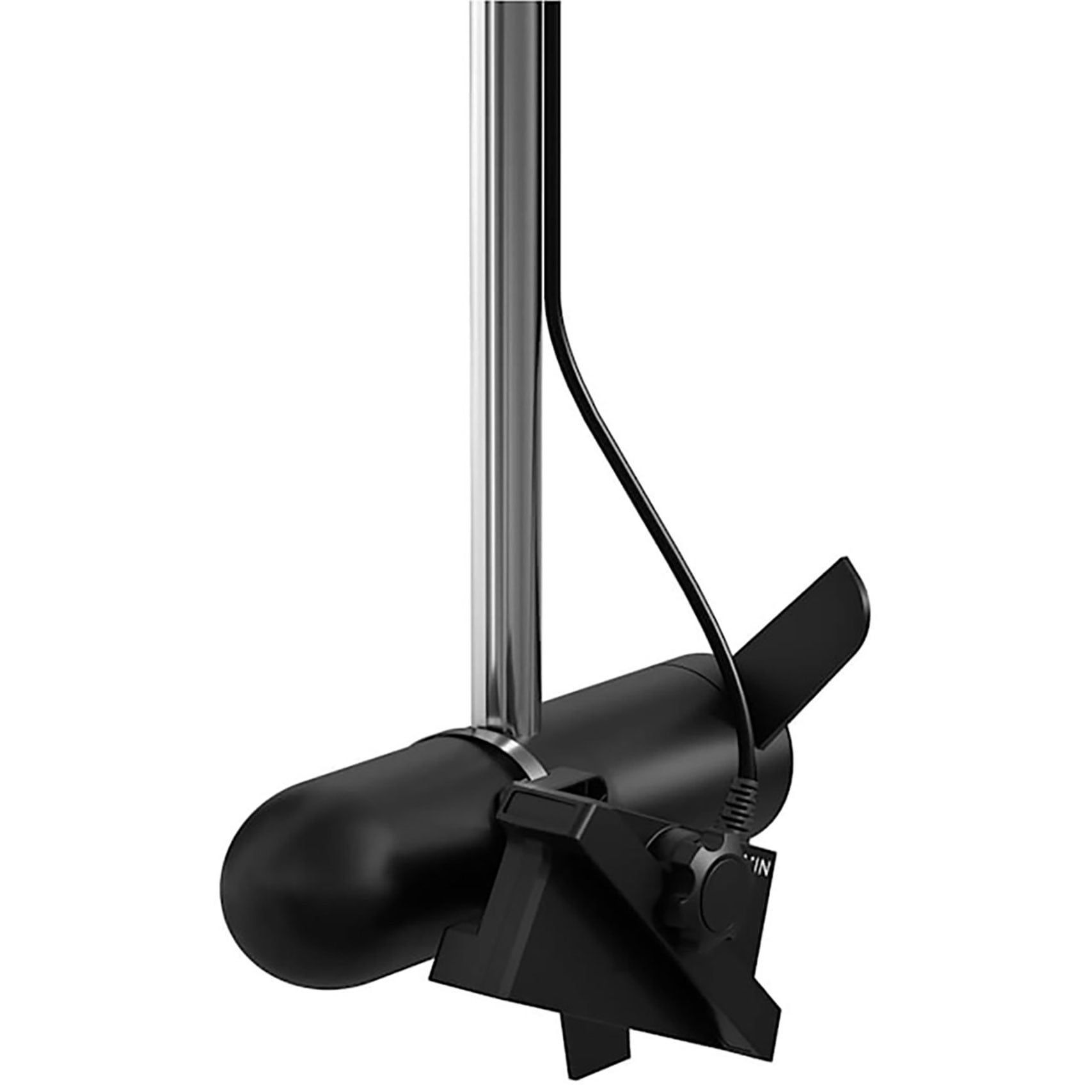

  • Trolling motor barrel mount

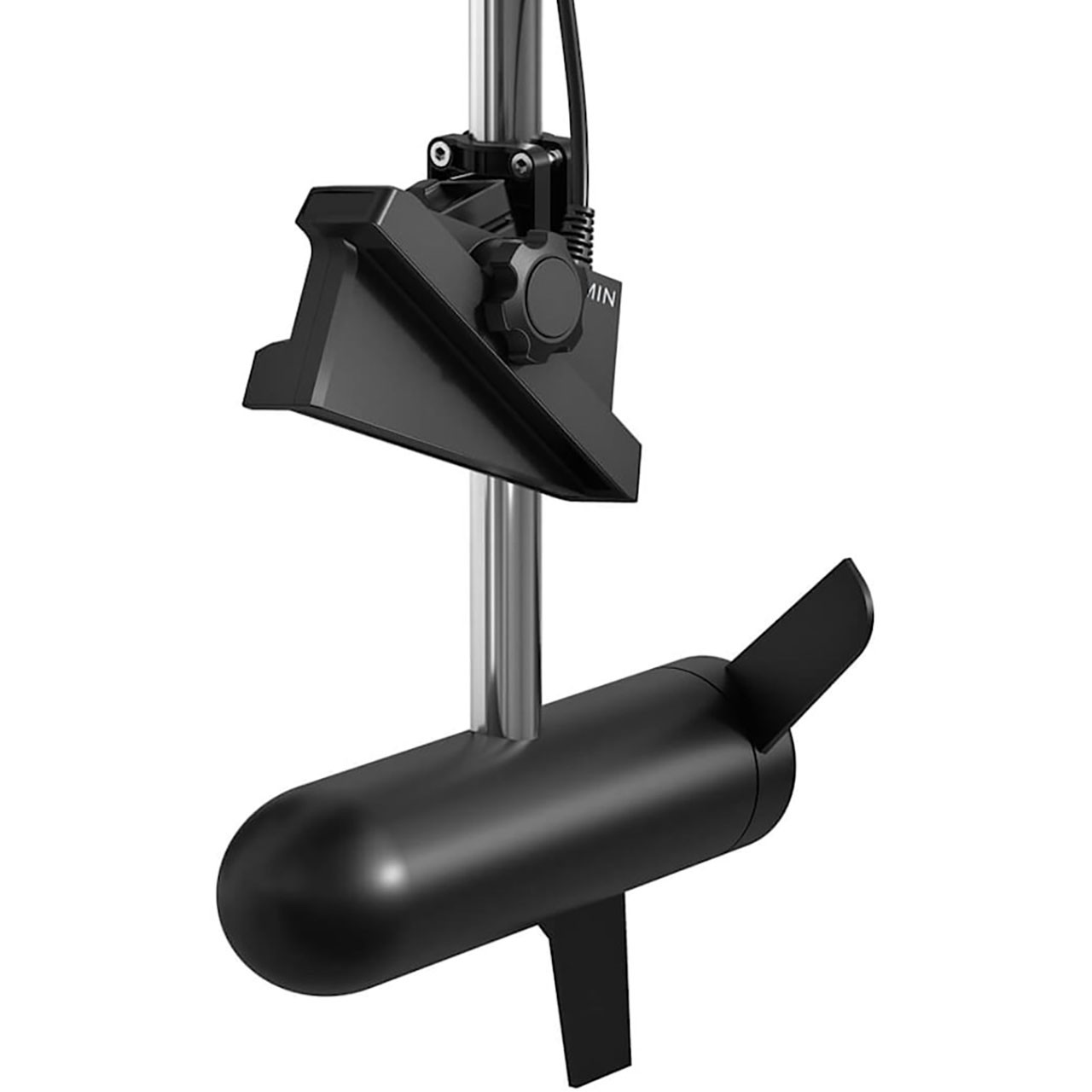

  • Shaft mount
  • Power cable
  • 2 meter Garmin Marine Network cable (small connector)
  • Network adapter cable
  • Documentation
• Manufacturer's one year warranty
