Garmin Panoptix LiveScope XR LVS62

The Garmin Panoptix LiveScope XR LVS62 brings extended-range real-time sonar to anglers who want to see fish behavior well beyond the boat, whether scanning open water for suspended fish or watching targets track structure below. This transducer pushes LiveScope performance farther with clear returns out to 500 feet in freshwater and 350 feet in saltwater, while maintaining sharp detail close to the hull for precise boat control. Built to pair with an existing GLS 10 black box, it supports Forward, Down, and Perspective modes and adds advanced range management tools that keep both near and distant targets visible at the same time. With stabilized imaging, vivid color palettes, and smooth real-time feedback, it delivers clear decision-making when targeting species like crappie, walleye, bass, or pelagic fish in open water.

• Extended-range live sonar reaches up to 500 ft freshwater and 350 ft saltwater
• Forward, Down, and Perspective views with included mounting hardware
• Reverse Range Offset and Compress Range improve near- and far-field clarity
• Seven vivid color palettes with stabilized real-time imaging— including Aqua, Caribbean, Lava and more
• Specifications:
  • Transducer beam width: 20° x 135°
  • Transducer cable length: 20 ft
  • 21 pins
  • LVS62 transducer dimensions: 8.20” x 3.98” x 2.76”
  • 3.92 lbs with cable, 2.66 lbs. without cable
  • Power input: 10-32 V
  • Power usage: 21 W typical, 58 W max
  • Fuse: 7.5 A
  • Compass-safe distance: 7" (0.18 m)
  • Frequency: 265 - 550 kHz
  • Transmit power: 500 W
  • Live sonar
  • 1 (small connector) Garmin marine network ports
• Compatible devices:
  • ECHO-MAP UHD Series
  • GPSMAP Series
  • ECHO-MAP Ultra Series
  • Force Kraken Trolling Motors
  • GLS 10 Sonar Module
  • LiveScope Ice Fishing Bundle
  • LiveScope Ice Fishing Bundle LI
  • Volvo Penta Glass Cockpit System
• Includes:
  • LiveScope XR LVS62 transducer

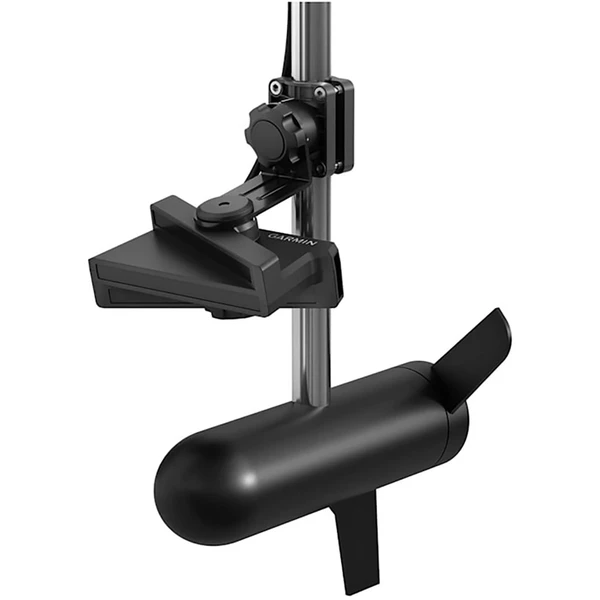

  • Perspective mount (LiveScope XR LVS62 transducer only)
  • Trolling motor barrel mount
  • Shaft mount
  • Power cable
  • Documentation
• Manufacturer's one year warranty
