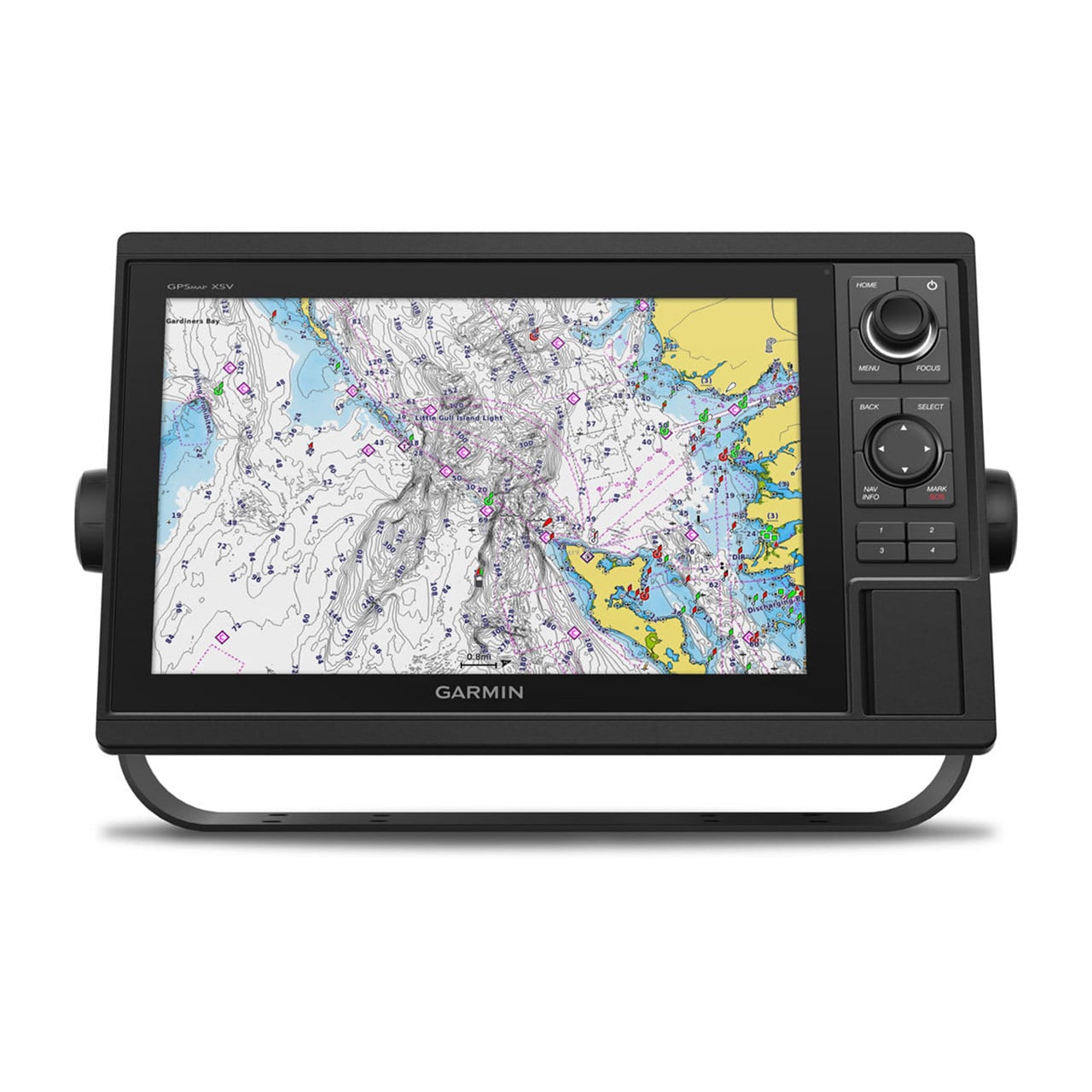

Garmin GPSMAP 1242xsv Chartplotter/Fishfinder

Item#: F24339

Model:

The Garmin GPSMAP 1242xsv Chartplotter/Fishfinder delivers precision navigation and superior fish-finding capabilities in one sleek, powerful unit. Designed for ease of use, this advanced chartplotter features a bright 12-inch color display with wide viewing angles, ensuring clear visibility in any light condition. The intuitive keypad interface, user-programmable keys, and multifunction control knob make navigation effortless, even in demanding environments. Preloaded with Garmin's premium mapping and charting options, this unit provides the ultimate in marine navigation. Built-in sonar capabilities let you explore what's beneath and around your boat with stunning clarity, while Garmin Marine Network support allows seamless information sharing across multiple units. Experience fluid, precise updates with 10 Hz GPS positioning, so you never miss a waypoint or route. Plus, transferring data like waypoints, tracks, and routes from other devices is quick and hassle-free. The Garmin GPSMAP 1242xsv is a reliable companion for anglers and navigators, offering a blend of cutting-edge technology and user-friendly design.

General
- Dimension: 14.1" x 8.9" x 2.7" (35.8 x 22.6 x 6.9 cm)
- Weight: 5.2 lbs (2.34 kg)
- Water Rating: IPX7
- Display Type: WSVGA, TN
- Display Size: 10.3" x 6.4"; 12.1" diagonal (26.2 x 16.3 cm; 30.7 cm diagonal)
- Display Resolution: 1280 x 800 pixels

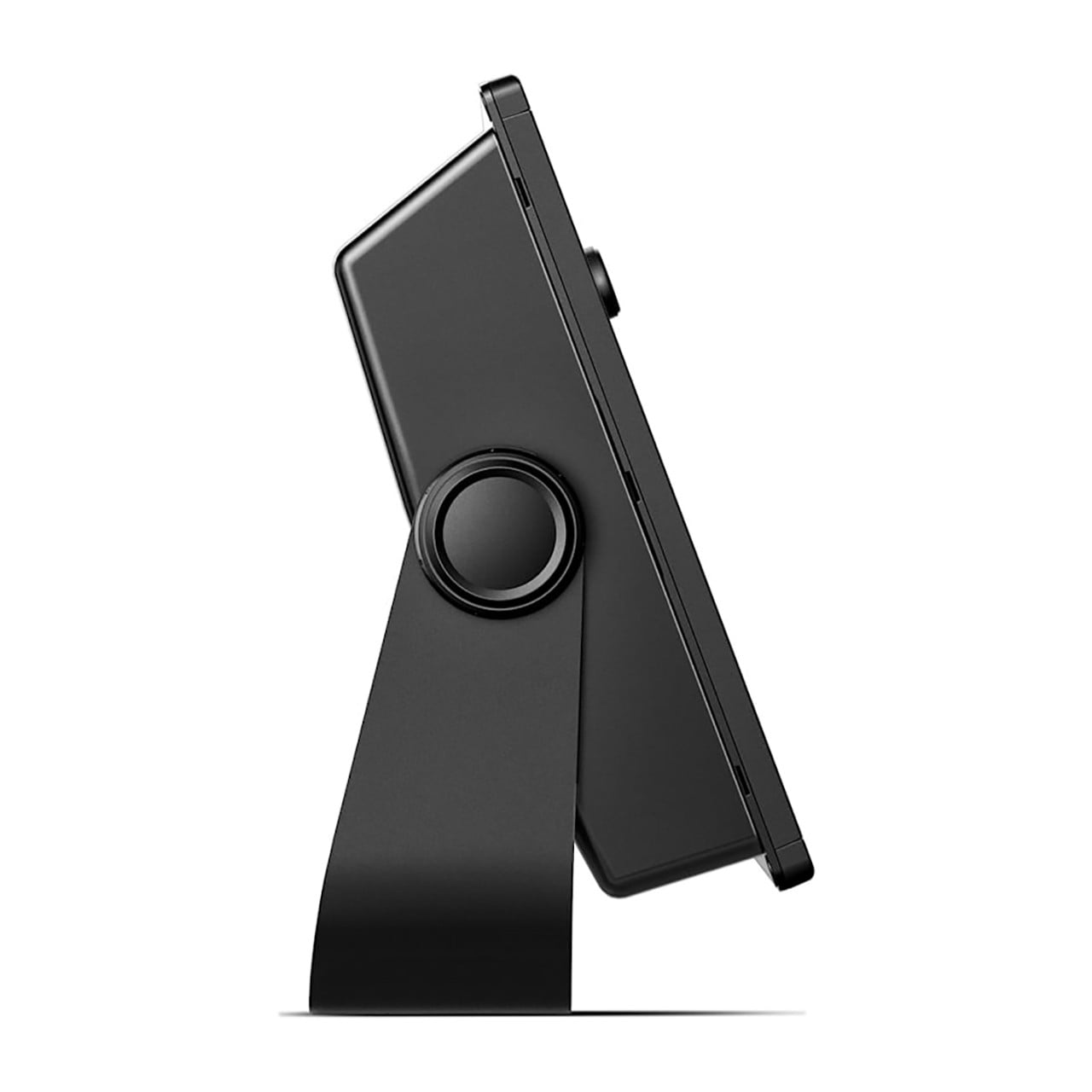

- Mounting Options: Bail or flush
- Input: Keyed
Maps & Memory
- Accepts Data Cards: 2 SD cards
- Waypoints: 5000
- Track Points: 50,000
- Tracks: 50 saved tracks
- Navigation Routes: 100
Sensors
- GPS: Yes
- GLONASS: Yes
- Galileo: Yes (With Transducer Model); No (Without Transducer Model)
- Built-in Receiver: Yes
- Receiver: 10 Hz
- NMEA 2000 Compatible: Yes
- NMEA 0183 Compatible: Yes
- Supports WAAS: Yes
Built-in Maps
- Built-in Auto Guidance+: Yes
- Garmin Navionics+ Inland & Coastal: Yes
- Tide Tables: Yes
Optional Map Support
- Garmin Navionics+: Yes
- Garmin Navionics Vision+: Yes
- TOPO 100K: Yes
- Standard Mapping: Yes
- Garmin Quickdraw Contours: Yes
- Raster Chart Support: Yes
Chartplotter Features
- Smart Mode Compatible: Yes
- AIS: Yes
- DSC: Yes
- Supports Fusion-Link Compatible Radios: Yes
- GSD Black Box Sonar Support: Yes
- GCV Black Box Sonar Support: Yes
- ActiveCaptain Compatible: Yes
- GRID (Garmin Remote Input Device) Compatible: Yes
- Wireless Remote Compatible: Yes
- Sailing Features: Yes
Electrical Features
- Power Input: 10 to 32 Vdc
- Typical Current Draw at 12 Vdc: 2.2 A
- Maximum Current Draw at 12 Vdc: 2.9 A
- Maximum Power Usage at 10 Vdc: 34.8W

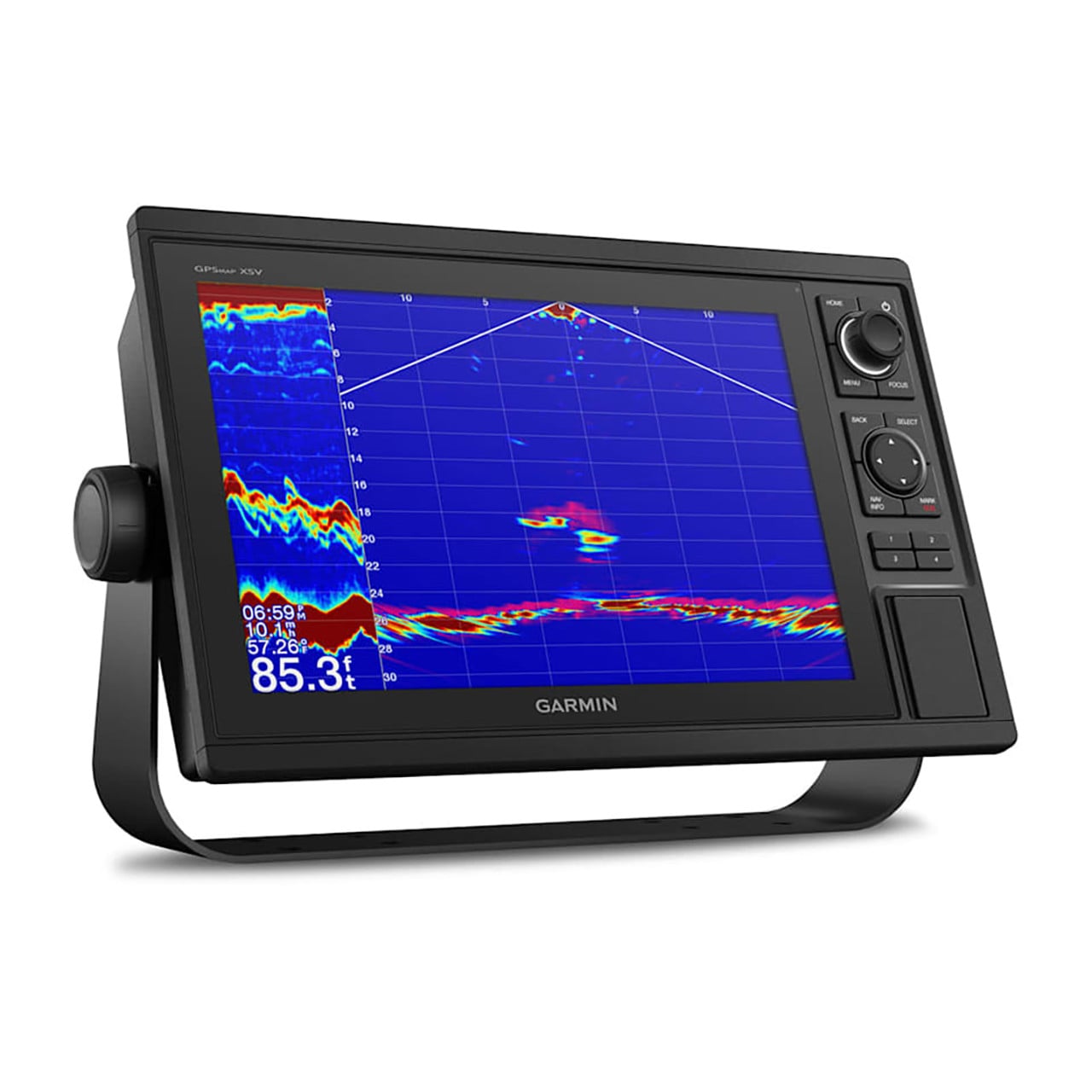

Sonar Features
- Displays Sonar: Yes
- Power Output: 1 kW
- Traditional Sonar (Dual Frequency/Beam) Built-in: Yes (Single Channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
- ClearVü (With Transducer Model): Yes (Built-in 260/455/800/1000/1200 kHz)
- ClearVü (Without Transducer Model): Yes (with CHIRP, Built-in)
- SideVü (With Transducer Model): Yes (Built-in 260/455/800/1000/1200 kHz)
- SideVü (Without Transducer Model): Yes (with CHIRP, Built-in)
- Panoptix Sonar: Yes
- LiveScope: Yes

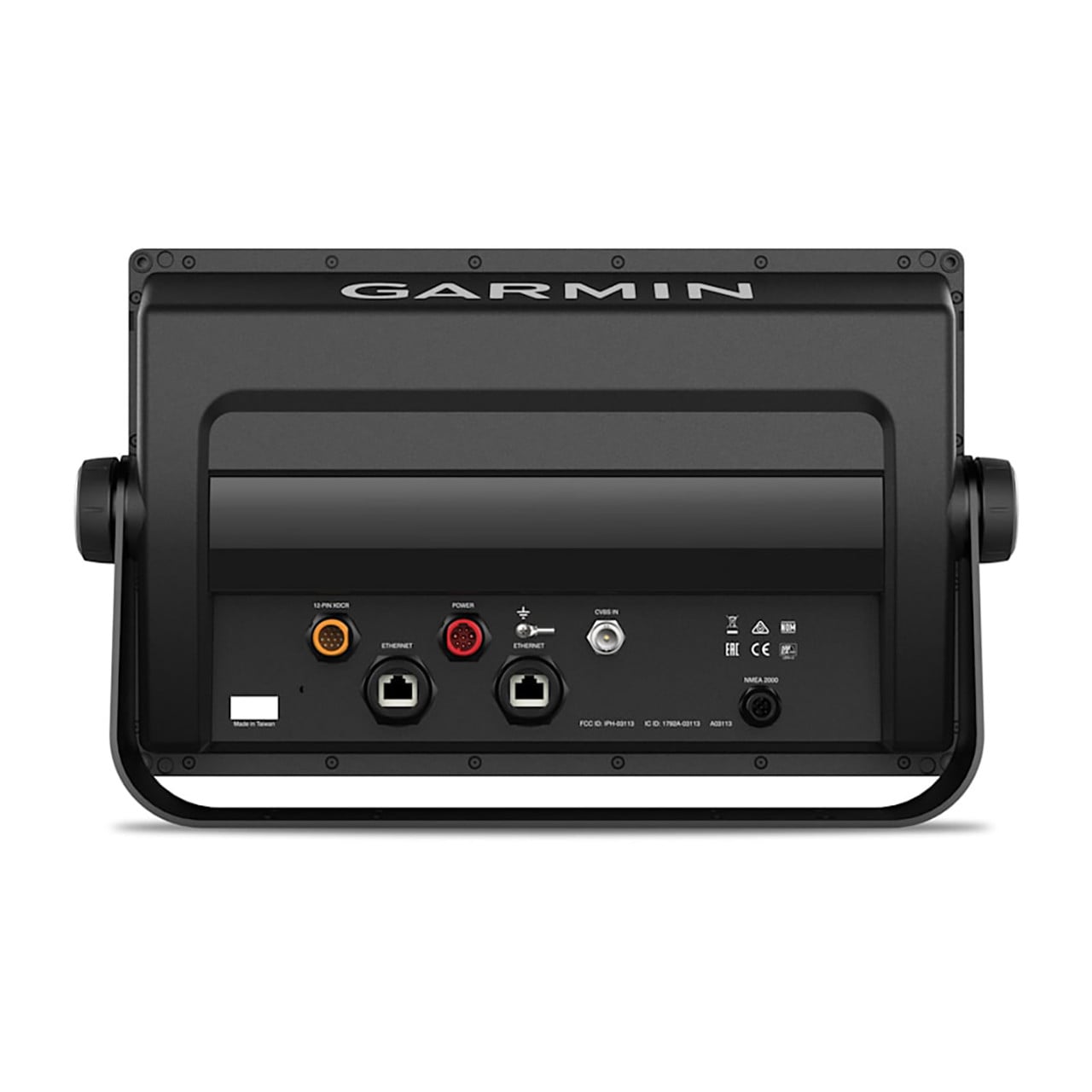

Connections
- NMEA 2000 Ports: 1
- NMEA 0183 Input (Rx) Ports: 1
- NMEA 0183 Output (Tx) Ports: 1
- Video Input Ports: 1 (BNC Composite)
- Garmin Marine Network Ports: 2
- 12-Pin Transducer Ports: 1
- BLUETOOTH Pairing: Yes
- ANT+ (Connectivity): Yes
- Garmin Wi-Fi Network (Local Connection): Yes
In the Box With Transducer:
- Part # 010-01741-60
- GPSMAP 1242xsv Chartplotter
- GT52HW-TM Transducer
- Power/Data Cable
- NMEA 2000 T-Connector
- NMEA 2000 Drop Cable (2 m)
- Bail Mount Kit with Knobs
- Flush Mount Kit with Gasket
- Protective Cover
- Trim Piece Snap Covers
- Documentation
In the Box Without Transducer:
- Part # 010-01741-50
- GPSMAP 1242xsv Chartplotter
- Power/Data Cable
- NMEA 2000 T-Connector
- NMEA 2000 Drop Cable (2 m)
- Bail Mount Kit with Knobs
- Flush Mount Kit with Gasket
- Protective Cover
- Trim Piece Snap Covers
- Documentation
Manufacturer's one-year limited warranty

This item does not qualify for expedited shipping.
