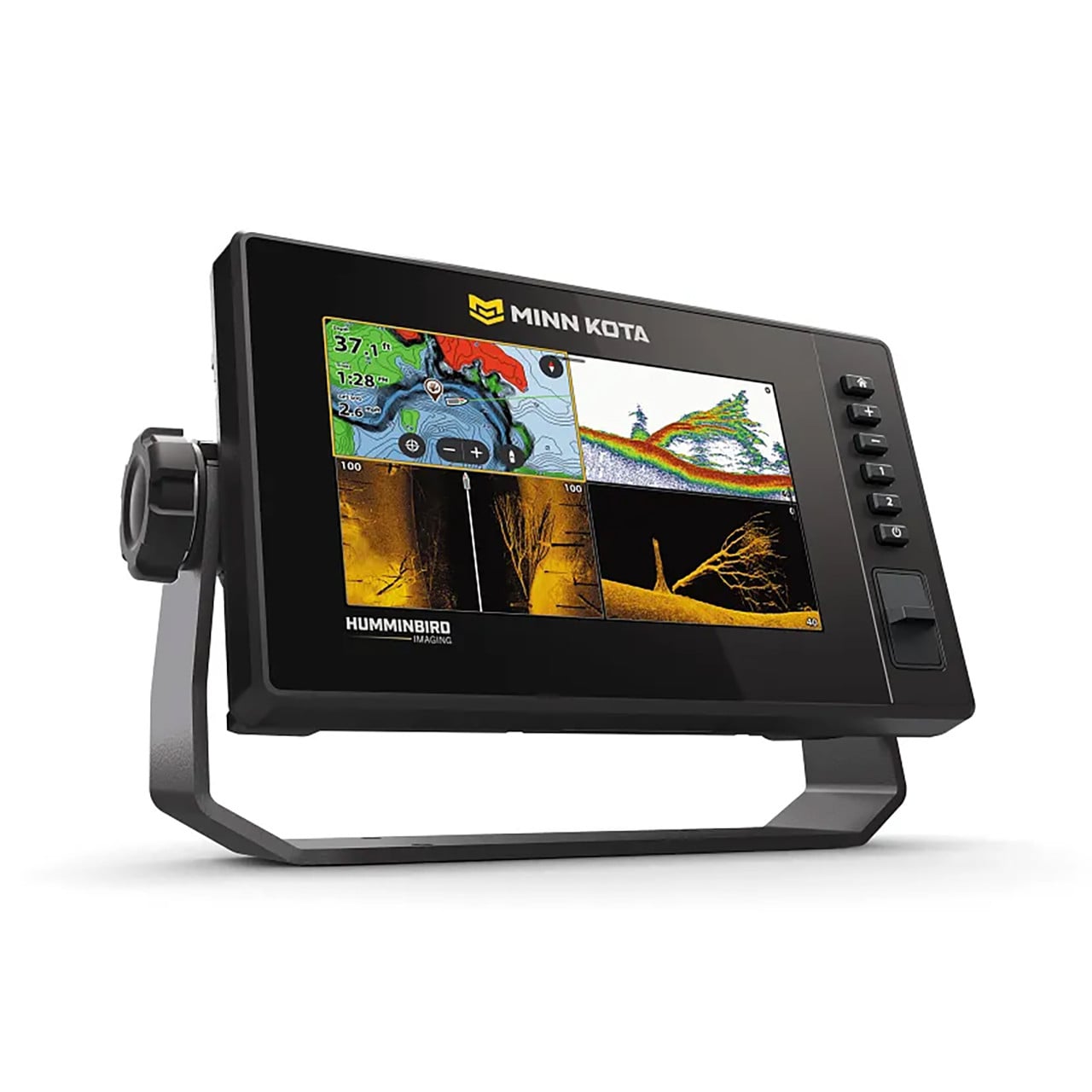

Minn Kota Humminbird X7 Series Fish Finder

Item#: F27837

Model:

Without Transducer

With Transducer

Product Details

The Minn Kota Humminbird X7 Series Fish Finder combines Humminbird sonar imaging, mapping, touchscreen control, and Minn Kota boat integration to help anglers locate fish, read structure, and manage boat position from one connected system. Side Imaging and Down Imaging provide detailed views beneath and beside the boat, while Dual Spectrum CHIRP sonar improves target separation when searching for bass along weed edges, marking suspended walleye, or identifying trout and salmon around deeper structure. Model 412420-1VXCHO includes the control head only and does not include a transducer, giving anglers the flexibility to connect compatible Minn Kota trolling motors with built-in sonar, accessory transducers, Live Sonar, or sonar shared from a networked Minn Kota or Humminbird fish finder.

Integrated navigation tools turn sonar and mapping information into practical boat control. Draw a course directly on the display and a compatible Minn Kota trolling motor can follow it automatically, while Intelligent Depth Control monitors changing depths and can engage Spot-Lock and compatible shallow water anchors when needed. AutoChart Live maps depth contours, bottom hardness, and vegetation in real time, and wireless connectivity simplifies communication among compatible equipment. The high-resolution Cross Touch display responds to touchscreen or keypad input and remains easy to view in rain, bright sun, and through polarized lenses. Ethernet, built-in NMEA 2000 networking, Wi-Fi software updates, the Minn Kota Fishing App, optional Live Sonar, and Minn Kota Maps Premium give anglers room to expand their electronics system as their fishing setup grows.

Control-head-only model 412420-1VXCHO does not include a transducer
Side Imaging and Down Imaging show structure and fish below and beside the boat
Dual Spectrum CHIRP sonar provides clear 2D returns and strong target separation
Draw-a-course navigation works with compatible Minn Kota trolling motors
AutoChart Live maps depth contours, bottom hardness, and vegetation in real time
Cross Touch display supports touchscreen and keypad control
Ethernet, Wi-Fi, wireless connectivity, and built-in NMEA 2000 support system expansion
Compatible with optional Live Sonar, Minn Kota Maps Premium, and the Minn Kota Fishing App
General
- Model: X7 CHO Fish Finder (without transducer)
- Model: X7 CMSI+ Fish Finder (with transducer)
- Series: X Series
- Compatible with: MEGA Live, MEGA Live 2, Minn Kota Built-In MEGA DI, Minn Kota Built-In MEGA SI, Minn Kota Talon/Raptor, Minn Kota US2 Sonar, Minn Kota i-Pilot Link, NMEA 2000, One-Boat Network, Radar
- Mount Standard: Gimbal
- Mount Standard size: 10.689 in W x 6.574 in H x 3.177 in D
- Mount Optional: Gimbal Mount or In-Dash Mounting Kit
- Mount-Optional size: 9.365 in W x 5.523 in H x 2.25 in D
- Upgradable software: Yes
Display
- Display Size - Diagonal: 7 in.
- Display Pixel Matrix: 1024H x 600V
- Display type: Color TFT
- Display Colors Grayscale: 24-Bit
- HDMI Compatible: No
Sonar
- Transducer included model: XM 14 HW CMSI T
- Transducer Mount Location: Transom
- Sonar-Standard: Dual Spectrum CHIRP, MEGA Down Imaging+, MEGA Side Imaging+
- Sonar-Coverage: 20°, 42°, 60° & (2) 86° @ -10dB
- Sonar-Optional: 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low
- CHIRP - Frequencies Supported: Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
- Sonar Frequencies Supported: 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA
- Depth-Sonar: 3,500 ft (optional Airmar CHIRP), 600 ft (standard transducer)
- CHIRP - Imaging-Frequencies Supported: 455 kHz (440-500 kHz), MEGA (1075-1150 kHz)
- Depth-Down Imaging: 200 ft (455 kHz)
- Range-Side Imaging (Side-To-Side): 400 ft (MEGA), 800 ft (455 kHz)
- Interface: Touch Screen, Keypad Control (Cross Touch)
- Included: Screen Snap Shot, Sonar Recording, GPS Chartplotting, GPS Trackplotting, NMEA2000, Speed
- GPS Receiver: Internal
- Waypoints, Routes, Tracks/Points: 10,000, 50, 50/20,000
- Target Separation: 2.5 in.
- Custom Digital Readout: Yes
- Custom View Selections: Yes
- Temperature: Built In
- Temperature Alarm: Yes
- Temperature Graph: No
Technical:
- Memory Card Slot: Dual Micro SD
- Power Draw: 1.5 Amps
- Power Input: 10.8-20 VDC
- Power Output Peak-to-Peak: 8000 Watts
- Power Output RMS: 1000 Watts
- Radar Compatibility: Yes
- 5-Port Ethernet Switch Compatibility: Yes
- AIS Compatibility: Optional
- Autopilot Compatibility: Yes
- Heading Sensor GPS Compatibility: No
- View Preset Keys: Yes
- X-Press Menu System: Yes
What's in the box:
- X Series Control Head
- Minn Kota Map Card
- 10 ft Fish Finder Power Cable
- Mounting Bracket
- XNT 14 HW CMSI 150 T - Transom-Mount Transducer (in included model)
Manufacturer's two-year limited warranty
