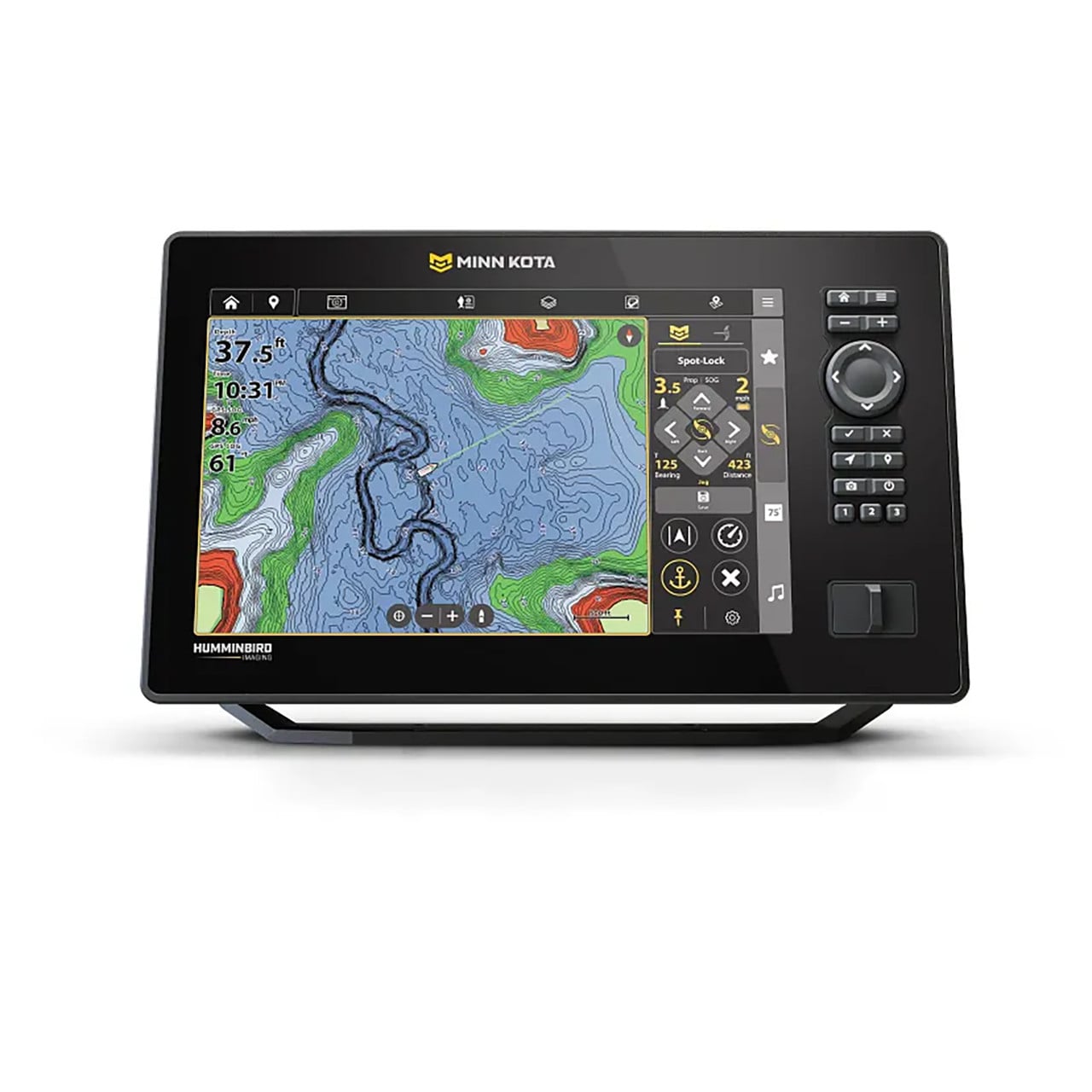

Minn Kota Humminbird X10 Series Fish Finder

Item#: F27845

Model:

Without Transducer

With Transducer

Product Details

The Minn Kota Humminbird X10 Series Fish Finder brings sonar, mapping, trolling motor control, and networking together on a high-resolution touchscreen for anglers who want tighter control over every cast and boat move. This control head only model does not include a transducer, giving anglers flexibility to connect with compatible Minn Kota trolling motors featuring built-in sonar, add accessory transducers such as live sonar, or share sonar data from a networked Minn Kota or Humminbird fish finder. Humminbird Imaging supports Side Imaging and Down Imaging views reaching up to 400 feet below and to either side of the boat, while Dual Spectrum CHIRP sonar provides detailed 2D returns and strong target separation for locating bass, walleye, crappie, lake trout, salmon, and other gamefish.

The integrated Minn Kota fishing system turns sonar and mapping information into precise boat positioning and automated control. Draw a route directly on the touchscreen and let a compatible trolling motor follow it, use Intelligent Depth Control to react to changing depths, or automatically engage Spot-Lock and compatible shallow water anchors when conditions call for it. AutoChart Live creates real-time maps of productive water, while wireless connectivity, Ethernet, NMEA 2000 networking, and the Minn Kota Fishing App help manage electronics throughout the boat. Anglers can also update software through Wi-Fi, save and share underwater imagery with the Media Tool, and expand mapping capability with Minn Kota Maps Premium.

Control head only model with no transducer included
Side Imaging and Down Imaging reach up to 400 feet
Dual Spectrum CHIRP delivers detailed 2D sonar returns
Integrates sonar, mapping, and compatible Minn Kota trolling motors
Draw touchscreen routes for automatic trolling motor navigation
Intelligent Depth Control responds to changing water depth
AutoChart Live creates real-time fishing maps
Wireless connectivity supports compatible Minn Kota equipment
Ethernet and built-in NMEA 2000 expand networking options
AutoChart Live creates real-time map of fishing spots with access to Minn Kota Maps
Simplified Software Updates by downloading over Wi-Fi
Cross Touch Interface to control display view
Media Tool to capture and share underwater views
Ethernet Networking connects multiple fish finders or upgrades to add-on technologies
Minn Kota Fishing App controls electronics, waypoints, motors, and anchors
Specifications:
- Item Number: X10 CMSI+ Fish Finder (with Transducer)
- Transducer Mount Location: Transom
- Model number for transducer included: XM 14 HW CMSI T
- Item Number: X10 CHO Fish Finder (without Transducer)
- Compatible with: MEGA Live, MEGA Live 2, Minn Kota Built-In MEGA DI, Minn Kota Built-In MEGA SI, Minn Kota Talon/Raptor, Minn Kota US2 Sonar, Minn Kota i-Pilot Link, NMEA 2000, One-Boat Network, Radar
- Mount-Standard: Gimbal
- Mount-Standard Size: 12.098 in W x 7.702 in H x 4.103 in D
- Mount-Optional: Gimbal Mount or In-Dash Mounting Kit
- Mount-Optional Size: 12.098 in W x 7.253 in H x 3.625 in D
- Upgradable Software: Yes
Display:
- Display size - diagonal: 10.1 in
- Display Pixel Matrix: 1280H x 800V
- Display type: Color TFT
- Display colors grayscale: 24-Bit
- HDMI compatible: No
Sonar:
- Transducer mount location: Transom
- Sonar-Standard: Dual Spectrum CHIRP, MEGA Down Imaging+, MEGA Side Imaging+
- Sonar-Coverage: 20°, 42°, 60° & (2) 86° @ -10dB
- Sonar-Optional: 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low/li>
- CHIRP - Frequencies Supported: Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
- Sonar Frequencies Supported: 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA
- Depth-Sonar: 3,500 ft (optional Airmar CHIRP), 600 ft (standard transducer)
- CHIRP - Imaging Frequencies Supported: 455 kHz DI+ (420-520 kHz), 455 kHz SI+ (405-505 kHz), Compact MEGA DI+ (1125-1225 kHz), Compact MEGA SI+ (1100-1200 kHz)
- Depth-Down Imaging: 200 ft (MEGA), 400 ft (455 kHz)
- Range-Side Imaging (Side-To-Side): 400 ft (MEGA), 800 ft (455 kHz)
- Interface: Touch Screen, Keypad Control (Cross Touch)
- Screen Snap Shot, Sonar Recording, GPS Chartplotting, GPS Trackplotting: Included
- GPS Receiver: Internal
- Waypoints, Routes, Tracks/Points: 10,000, 50, 50/20,000
- NMEA2000: Included
- Target Separation: 2.5 in.
- Custom Digital Readout and Custom View Selections: Yes
- Speed: Included
- Temperature: Built in
- Temperature Alarm: Yes
- Temperature Graph: No
Technical:
- Memory Card Slot: Dual Micro SD
- Power Draw: 2.2 Amps
- Power Input: 10.8-20 VDC
- Power Output Peak-to-Peak: 8000 Watts
- Power Output RMS: 1000 Watts
- Radar Compatibility: Yes
- 5-Port Ethernet Switch Compatibility: Yes
- AIS Compatibility: Optional
- Autopilot Compatibility: Yes
- Heading Sensor GPS Compatibility: No
- View Preset Keys: Yes
- X-Press Menu System: Yes
In the box:
- X Series Control Head
- 1 Minn Kota Map Card
- Premium Silicone Unit Cover
- 10 ft Fish Finder Power Cable
- Mounting Bracket
- XNT 14 HW CMSI 150 T - Transom-Mount Transducer (for transducer-included model only)
Manufacturer's two-year limited warranty
