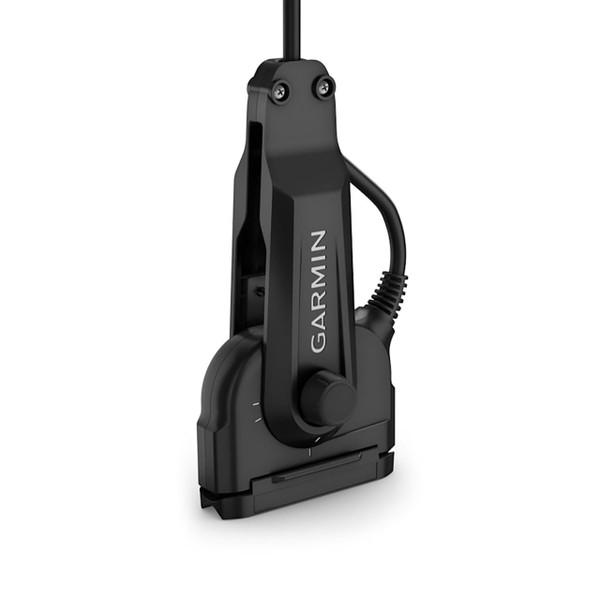

Garmin Panoptix PS22-IF Transducer

The Garmin Panoptix PS22-IF Transducer keeps ice anglers mobile and efficient, delivering real-time sonar so you can scan for roaming crappie, suspended walleye, and basin perch without slowing your hole-hopping rhythm. Its ultraportable design features an all-new bracket and integrated rotator that eliminates the need for a bulky pole mount, streamlining your shuttle setup and making quick adjustments easy inside a shelter or out on open ice. A removable lens allows you to optimize the sonar beam angle for the water column below, helping you fine-tune coverage for shallow flats or deeper basins. With LiveVü Forward and LiveVü Down scan modes, you can locate schools of fish in real time, track lure movement, and react immediately as fish approach your presentation.

• Ultraportable design with new bracket and rotator, no bulky pole mount required
• Removable lens to optimize sonar beam angle
• LiveVü Forward and LiveVü Down real-time sonar modes
• Ideal for fast hole hopping and mobile ice fishing setups
• Specifications:
  • Dimensions: 9 1/10 x 4 1/10 x 2 1/2 in.
  • Weight: 2.60 lbs.
  • Transducer beamwidth with lens: 120 x 12 in.
  • Transducer beamwidth without lens: 120 x 57 in.
  • Transducer cable length: 9.8 ft. (3 m)
  • Operating temperature range: 0° C to 40° C
• Electrical features:
  • Power input: 10-32 V
  • Fuse: 4A
• Sonar features:
  • Sonar frequency: 417 kHz
  • Sonar transmit power: 48 W
  • Sonar maximum depth: 300 ft.
• 1 (standard connector) Garmin Marine Network Ports
• Sonar modes:
  • LiveVü Down
  • LiveVü Forward
  • Traditional sonar source
• In the box:
  • Panoptix PS22-IF transducer
  • Transducer rotator and bracket
  • Removable lens
  • Hardware
  • Documentation
• Manufacturer's one-year warranty
