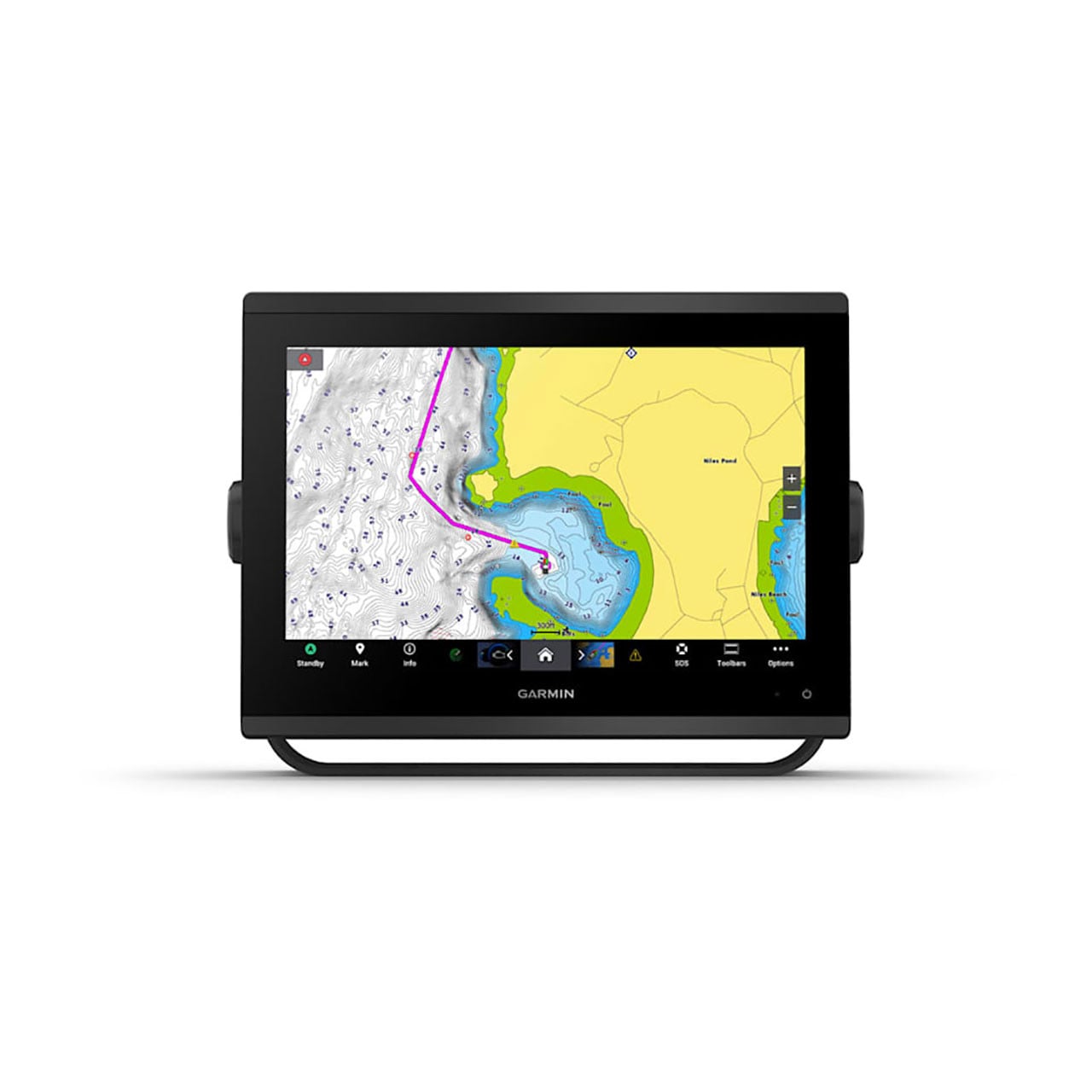

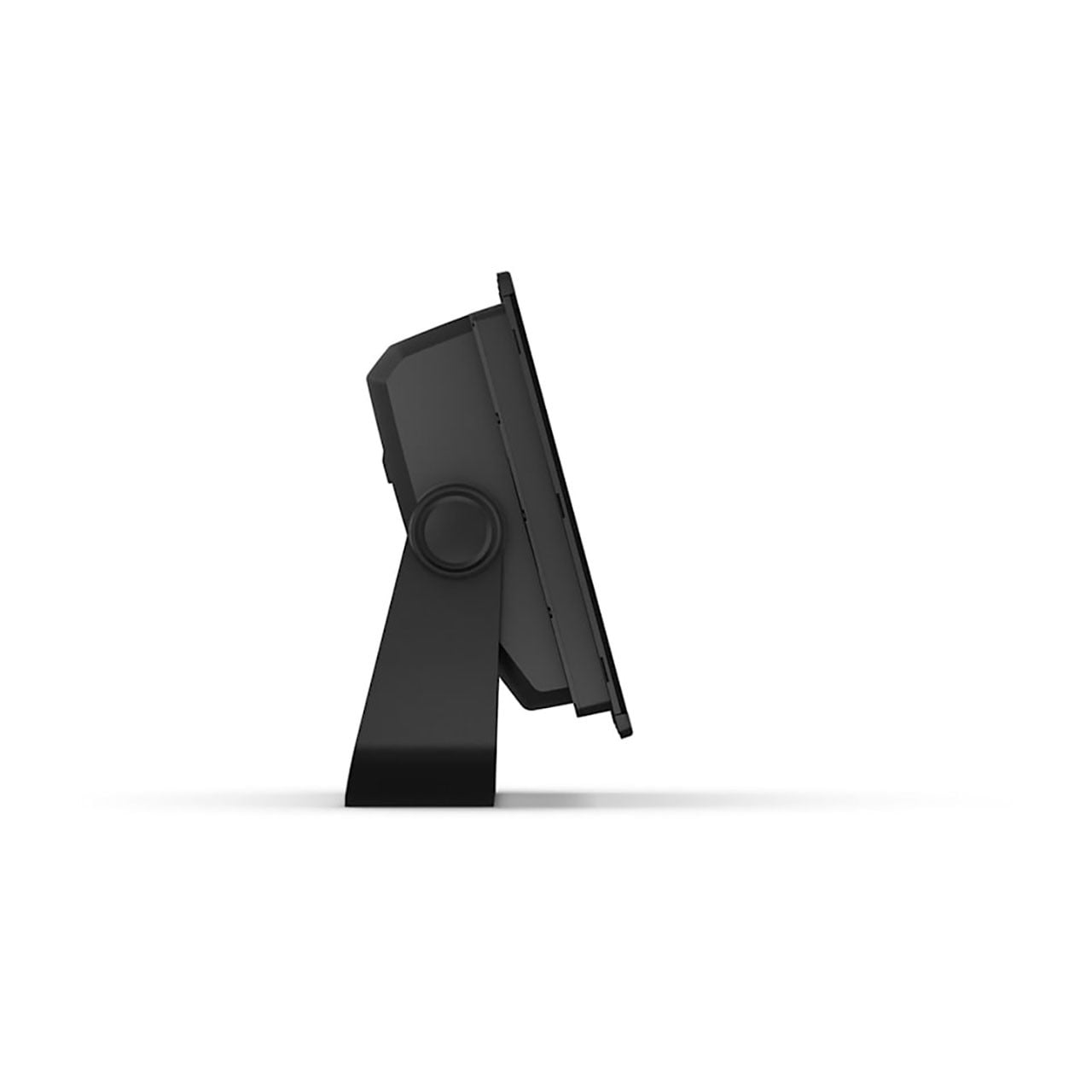

The Garmin GPSMAP 1243xsv Chartplotter gives anglers full control at the helm with a responsive 12-inch display, advanced networking, and integrated sonar tools that help you break down structure for walleye, follow bait schools for striped bass, and track offshore contours for tuna. Preloaded Garmin Navionics+ charts on select models support confident navigation across inland lakes and coastal waters, while built-in sonar capabilities on select models (transducer required) reveal what sits directly below your boat. Advanced network connectivity lets you expand your marine system with radar, autopilot, multiple displays, and more, and engine integration supports a wide range of compatible power systems for consolidated data at the helm. Digital switching and OneHelm integrations connect compatible third-party devices into a unified control interface, and remote access features allow you to manage and monitor your marine experience from nearly anywhere.

• Preloaded Garmin Navionics+ charts on select models for inland and coastal navigation
• Built-in sonar capabilities on select models (transducer required)
• Advanced networking with engine integration, digital switching, and OneHelm support
• Remote connectivity for managing and monitoring systems from nearly anywhere
• Specifications:
  • 12 in. display size
  • Weight: 6.6 lbs
  • 11 1/10 x 8 9/10 x 3 1/5 in.
  • Water rating: IPX7
  • Input: Touchscreen
  • Display type: WXGA
  • Display resolution: 1280 x 800 pixels
  • Display size: 10.3 x 6.4 in.; 12.1 in. diagonal
  • Mounting options: Bail, flat or flush (Garmin does not offer any hardware or accessories for a flat-mount installation; professional tools and knowledge are required.)
• Maps and Memory:
  • Accepts 2 microSD cards (back of unit)
  • 5000 waypoints
  • 50000 track points
  • 50 saved tracks
  • 100 navigation routes
• Sensors:
  • GPS
  • GLONASS
  • Galileo
  • Has built-in 10Hz receiver
  • NMEA 2000 Compatible
  • NMEA 0183 Compatible
  • Supports WAAS
• Built-in maps:
  • Built-in Auto Guidance+
  • Garmin Navionics+ Inland & Coastal
  • Tide Tables
• Optional map support:
  • Garmin Navionics+
  • Garmin Navionics Vision+
  • TOPO 100K
  • Standard Mapping
  • Garmin Quickdraw Contours
  • Raster chart support
• Chartplotter features:
  • Smart Mode compatible
  • AIS
  • DSC
  • Supports Fusion-Link compatible radios
  • GSD Black Box Sonar Support
  • GCV Black Box Sonar Support
  • ActiveCaptain compatible
  • GRID (Garmin Remote Input Device) compatible
  • Wireless Remote compatible
  • Sailing features
  • Spoken audio alerts
  • OneHelm support
• Electrical features:
  • Power input: 10 to 32 Vdc
  • Typical current draw at 12 Vdc: 1.68 A
  • Maximum current draw at 12 Vdc: 3.56 A
  • Maximum power usage at 10 Vdc: 43 W
• Sonar features:
  • Power output: 1 kW
  • Traditional sonar (dual frequency/beam): built-in (single channel CHIRP, 50/70/83/200 kHz, L, M, H CHIRP)
  • SideVü: Built-in 260/455/800/1000/1200 kHz
  • ClearVü: Built-in 260/455/800/1000/1200 kHz
  • Panoptix sonar
  • LiveScope
• Connections:
  • 1 NMEA 2000 ports
  • 1 NMEA 0183 Input (Rx) Ports
  • 1 NMEA 0183 output (Tx) ports
  • Video input ports: 1 (BNC composite)
  • Video output ports: 1 HDMI
  • 1 J1939 ports
  • 2 Garmin Marine Network Ports
  • 1 12-pin transducer ports
  • USB ports
  • Bluetooth pairing
  • ANT (Connectivity)
  • Garmin Wi-Fi network (local connection)
• In the box:
  • GPSMAP 1243xsv chartplotter
  • microSD card preinstalled
  • Power cable
  • NMEA 2000 drop cable (2 meters)
  • NMEA 2000 T-connector
  • Bail mount with knobs
  • Flush mount kit with gasket
  • Protective cover
  • Trim piece snap covers
  • Documentation
• Manufacturer's one-year warranty
