The Accuphy PingLive Mini Live Sonar Transducer gives anglers multiple ways to track fish, structure, and activity beneath and ahead of the boat or through the ice. Combo View displays Forward View and Down View at the same time, helping you watch fish ahead while monitoring activity directly below. Down View covers a 39-degree area beneath the boat and works well for monitoring fish below an ice hole, while Forward View helps scan water ahead when searching for suspended crappie, roaming walleye, bass, and other active fish.

Traditional View provides a familiar colored 2D sonar display with fish arches and bottom-hardness detail, while Down View Scan produces a more image-like look at vegetation, structure, and fish below. The system operates on 11–18 VDC and supports wired connectivity plus optional wireless use through the Accuphy WiFi Router. Compatible iOS and Android devices can control and display live sonar through the Accuphy Sonar app.

• Combo View displays Forward and Down sonar together
• 39-degree Down View monitors fish and activity directly below
• Forward View helps locate fish ahead of the boat or presentation
• Traditional 2D sonar shows fish arches and bottom composition
• Down Scan provides detailed views of cover, vegetation, and fish
• Wired and optional WiFi operation supports mobile app viewing
• Electrical specifications:
  • Power input: 11-18 VDC
  • Power usage: 12W typical, 25W max
  • Frequency: 450 - 1,100kHz
  • Transmitting power: 500W
  • Maximum range: 230 ft. (Freshwater)
  • Wireless: Accuphy Wi-Fi Router
• Transducer specifications:
  • Dimensions: 5 x 3.9 x 0.9 in.
  • Weight: 1 lb. 5 oz.
  • Transducer beamwidth: 39° (Live forward & Live down)
  • Transducer cable length: 20 ft.
  • Transducer number of PINs: 8
  • Temperature range: 32°F to 104°F
• Router specifications:
  • Dimensions: 3.35 x 2.95 x 1.38 in.
  • Weight: 4.2 oz.
  • Temperature Range: -4°F to 104°F
  • Transducer ports: 1
  • Power input: 11-18 VDC
  • Power usage: 3W typical, 6W max
  • Frequency: 2.4/5.8GHz
  • Wi-Fi modes: IEEE802.11A/B/G/N/AC
  • Wi-Fi effective range: 70 ft.

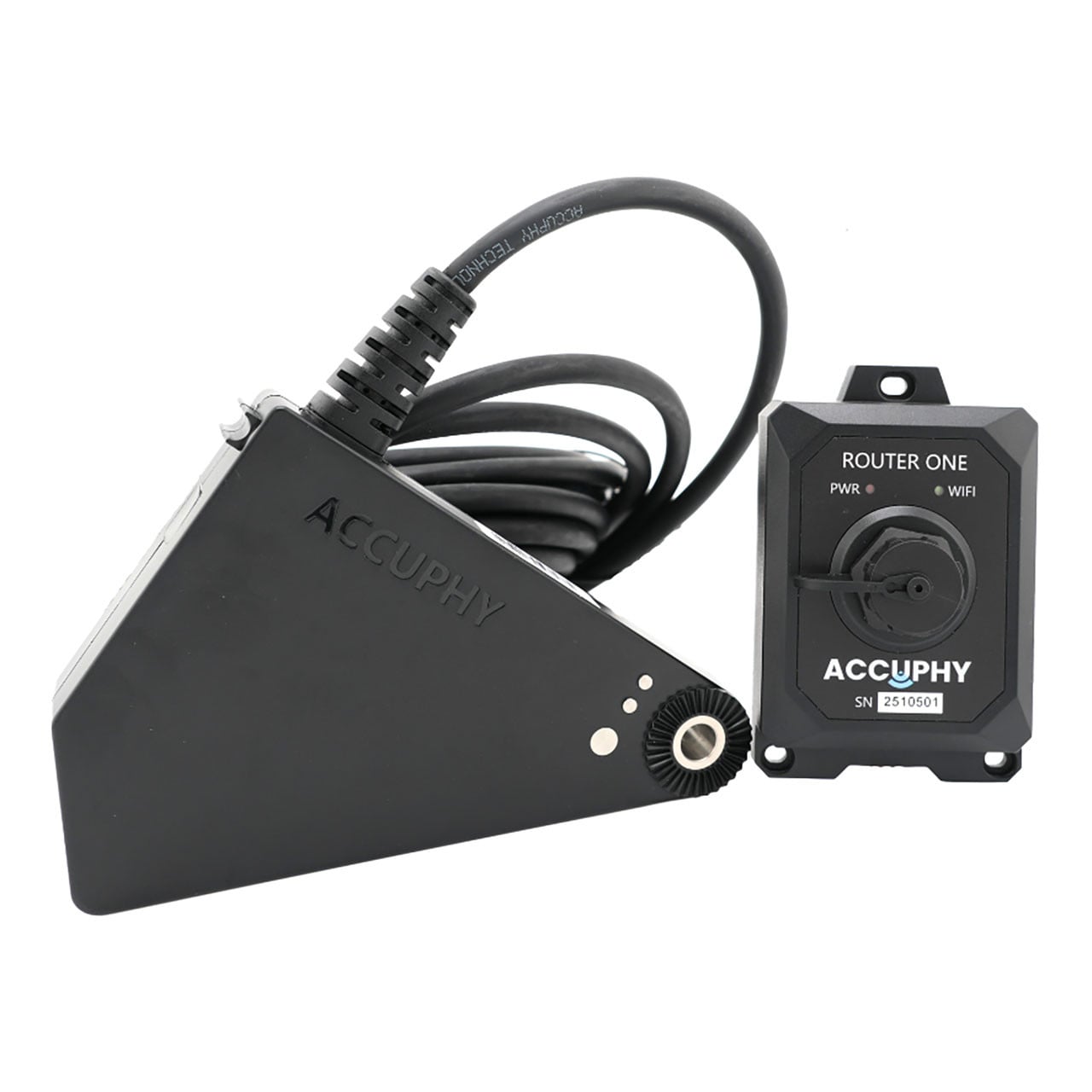

• Includes:
  • PingLive Mini transducer
  • Wi-Fi router
  • Transom mount

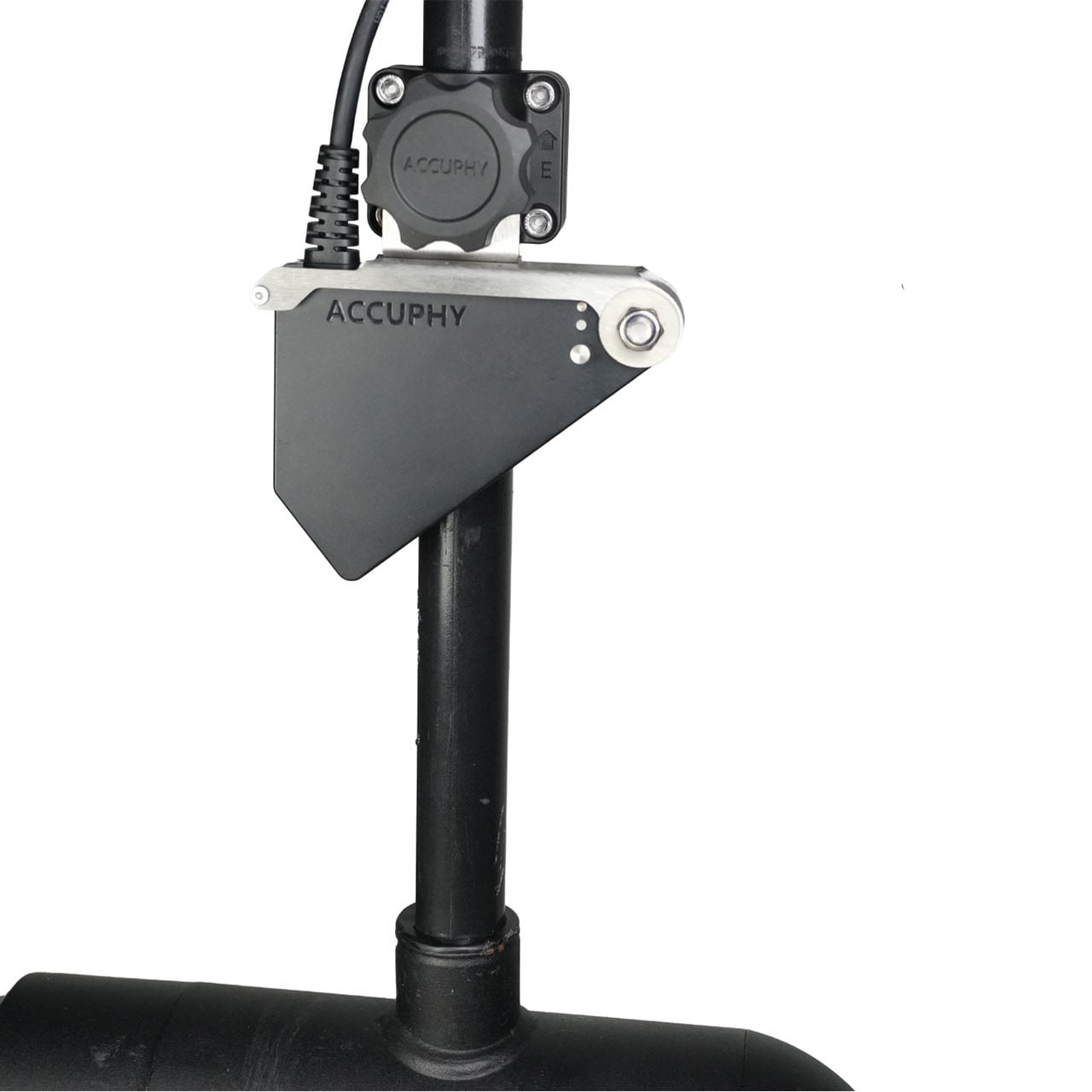

  • Shaft mount
• Manufacturer's two-year limited warranty
