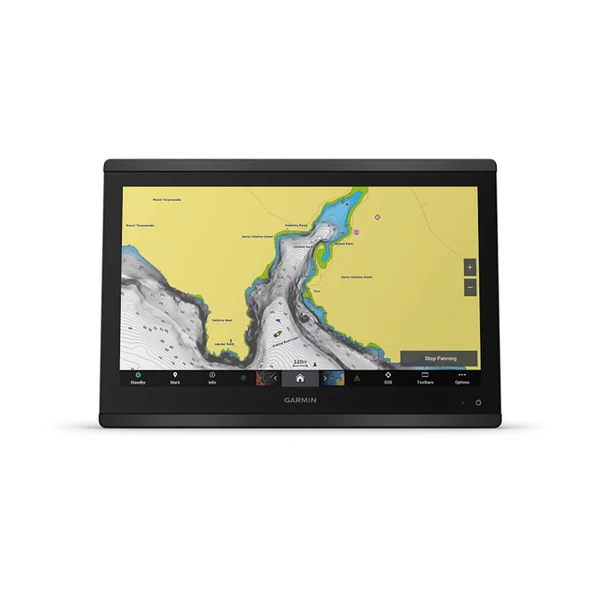

The Garmin GPSMAP 8416xsv Chartplotter anchors your helm with a 16-inch full HD IPS touchscreen that keeps sonar returns, contour shading, and radar overlays sharp from any angle, even under bright sun and polarized lenses. Built-in Garmin Navionics+ inland and coastal mapping lets you follow Erie reef edges for walleye, trace offshore breaks for tuna, or hold a precise course line during a sail race with confidence. Integrated sonar capabilities (transducers sold separately) support CHIRP, ClearVü, and SideVü scanning, helping you see bait schools, rock transitions, and suspended fish below and around your boat. SmartMode station controls put charts, sonar, radar, cameras, and engine data one touch away, while advanced connectivity—ANT technology, Wi-Fi networking, NMEA 2000, and Ethernet—links trolling motors, radar, autopilot, AIS, additional displays, and mobile devices into a fully integrated marine electronics system built for serious anglers, cruisers, sailors, and sail racers.
- 16 in. full HD IPS touchscreen with wide viewing angles and sunlight readability
- Built-in Garmin Navionics+ inland and coastal mapping for detailed navigation
- CHIRP, ClearVü, and SideVü sonar support (transducer required)
- SmartMode controls with ANT, Wi-Fi, NMEA 2000, and Ethernet networking
- Specifications:
- 16 in. display size
- Weight: 9.6 lbs
- 15 1/10 x 10 3/10 x 3 in.
- Water rating: IPX7
- Touchscreen with a full HD in-plane switching (IPS) display
- Display type: FHD, IPS
- Display resolution: 1920 x 1080 pixels
- Mounting options: Flat and flush, bail with optional accessory (Garmin does not offer any hardware or accessories for a flat-mount installation, professional tools and knowledge is required)
- Polarized lens viewability
- Maps and Memory:
- Accepts 2 microSD cards
- 5000 waypoints
- 50000 track points
- 50 saved tracks
- 100 navigation routes
- Sensors:
- GPS
- GLONASS
- Galileo
- Has built-in 10Hz receiver
- NMEA 2000 Compatible
- NMEA 0183 Compatible
- Supports WAAS
- Built-in Tide Tables
- Optional map support:
- BlueChart g3
- BlueChart g3 Vision
- LakeVü g3
- LakeVü g3 Ultra
- Garmin Navionics+
- Garmin Navionics Vision+
- TOPO 100K
- Standard Mapping
- Garmin Quickdraw Contours
- Raster chart support
- Chartplotter features:
- Smart Mode compatible
- AIS
- DSC
- Supports Fusion-Link compatible radios
- GSD Black Box Sonar Support
- GCV Black Box Sonar Support
- ActiveCaptain compatible
- GRID (Garmin Remote Input Device) compatible
- Wireless Remote compatible
- Sailing features
- Spoken audio alerts
- OneHelm support
- Electrical Features:
- Power input: 10 to 32 Vdc
- Typical current draw at 12 Vdc: 1.3 A
- Maximum current draw at 12 Vdc: 6.0 A
- Maximum power usage at 10 Vdc: 52.1W
- Sonar features:
- Traditional sonar (dual frequency/beam): built-in (dual channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
- SideVü: Built-in 260/455/800/1000/1200 kHz
- ClearVü: Built-in 260/455/800/1000/1200 kHz
- Panoptix sonar
- LiveScope
- Connections:
- 1 NMEA 2000 ports
- 1 NMEA 0183 Input (Rx) Ports
- 1 NMEA 0183 output (Tx) ports
- Video input ports: 1 (BNC composite); 1 HDMI (HDCP compliant)
- Video output ports: 1 HDMI
- 1 J1939 ports
- 2 Garmin Marine Network Ports
- 8-pin transducer ports
- 12-pin transducer ports
- USB ports
- Bluetooth pairing
- ANT (Connectivity)
- Garmin Wi-Fi network (local connection)
- In the box:
- GPSMAP 8416xsv
- Power cable
- NMEA 2000 drop cable
- NMEA 2000 T-connector
- Flush mount kit
- Sun cover
- Trim piece snap covers
- Documentation
- Manufacturer's one-year warranty
