Garmin

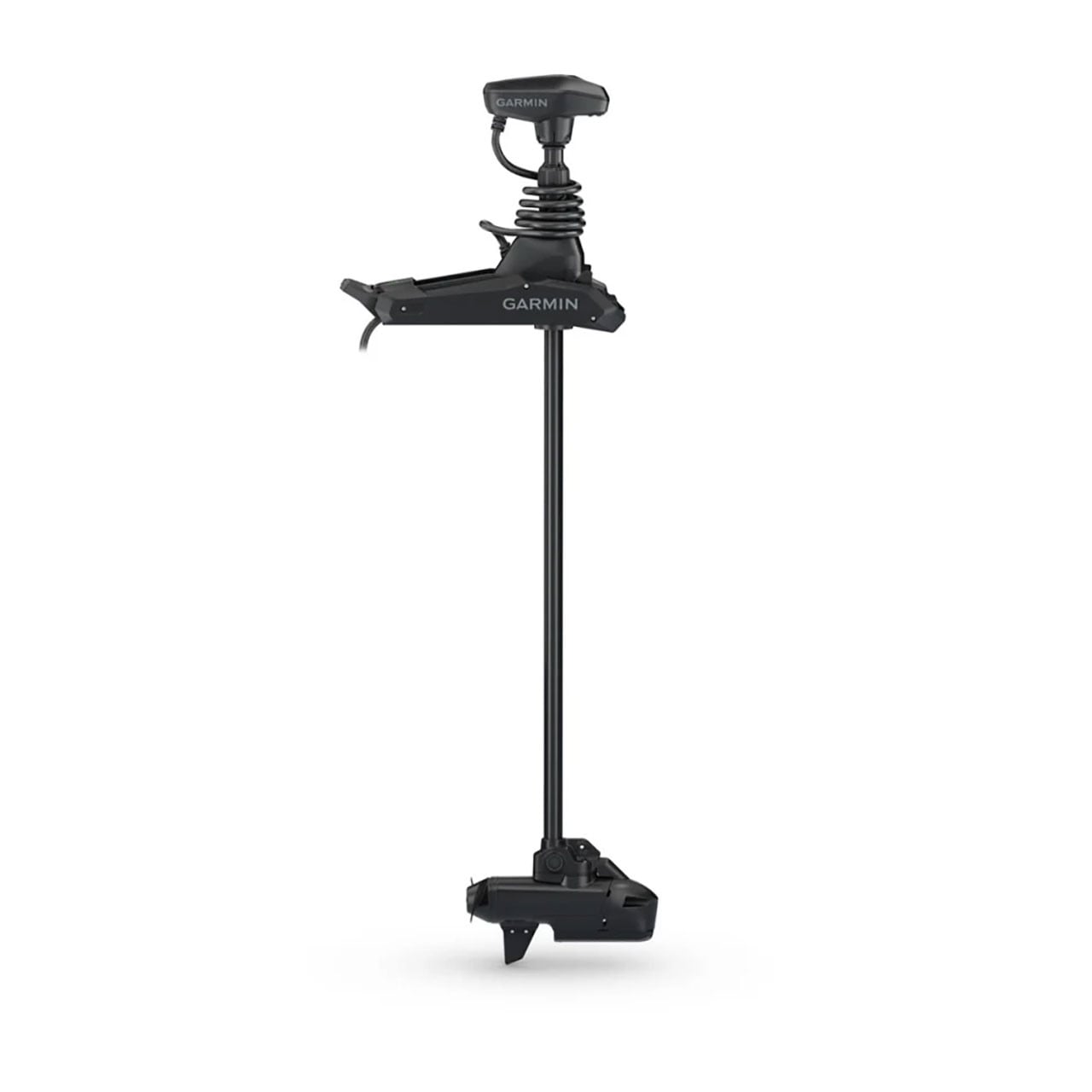

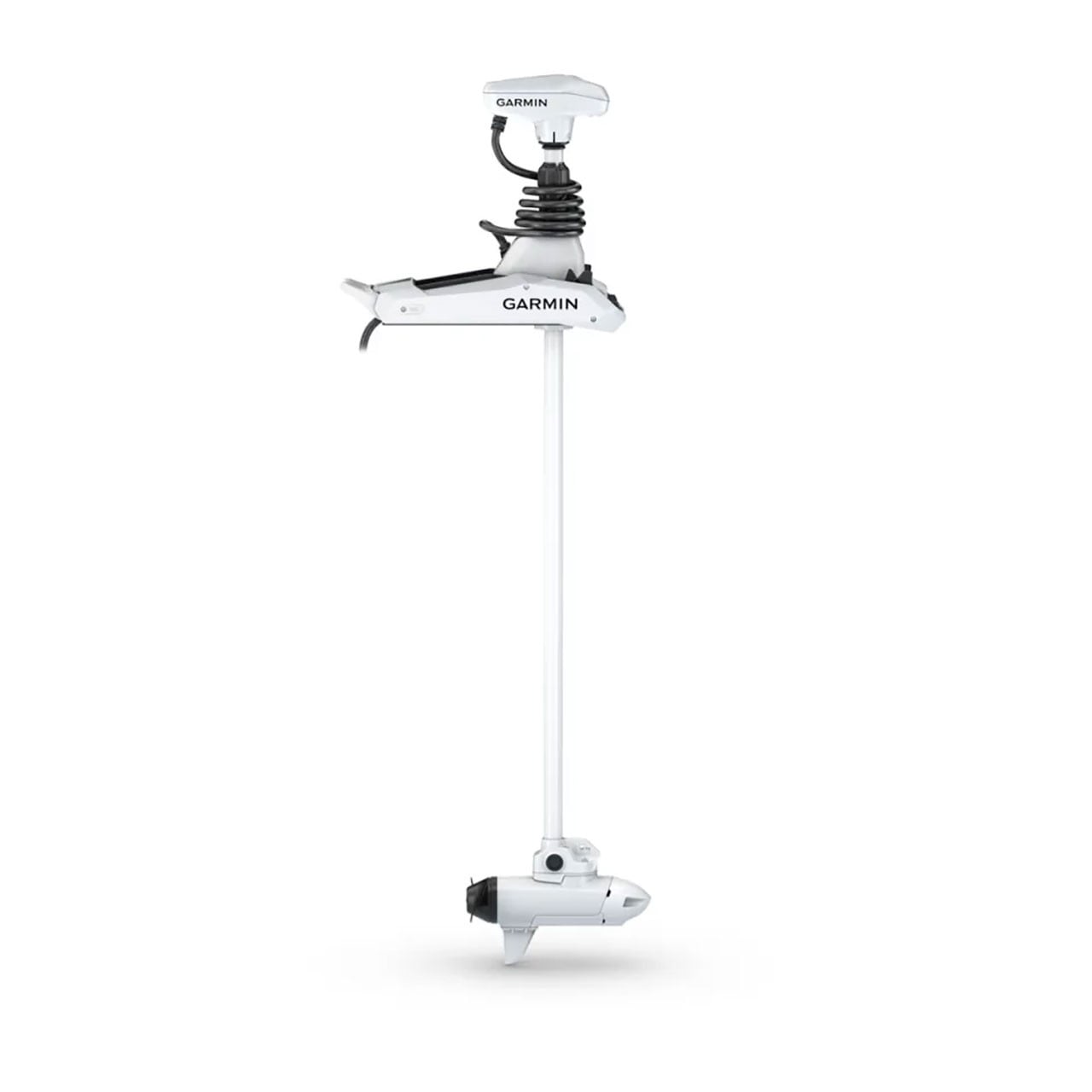

Garmin Force Kraken Trolling Motor

Item#: F22114

Size:

63 in.

110 in.

48 in.

75 in.

90 in.

Color:

Black

White

Product Details

Consider the Garmin Force Kraken Trolling Motor with GT56UHD-TR Transducer. With 100 lbs of thrust, the Force Kraken is the most powerful trolling motor available. It's powerful, reliable, and perfect for boats with high freeboards, and a pivot-style mount for easy installation in vessels where bow space is limited. The 63", 75", and 90" shaft lengths make it a versatile option for many different boat sizes and deck configurations. Plus, the advanced corrosion and saltwater protection ensure the composite shaft can withstand harsh marine environments.

The Garmin Kraken Trolling Motor has a powerful brushless motor that can operate at 24 or 36 volts with longer run times than brushed motors. With its efficient brushless motor design, you can now concentrate on fishing without worrying about running out of battery. Furthermore, the included GT56 transducer (only with models 010-02573-30, 010-02574-00 010-02573-10) delivers clear UHD sonar returns with minimal unwanted noise. Most importantly, the brushless motor operates silently and does not scare away the fish. The anchor lock feature allows for precise boat positioning, and the floating remote makes navigation easy with point-and-go technology. You can also control the Garmin Kraken wirelessly with your compatible chartplotter and Garmin smartwatch, and connect to the Active Captain app to reach a powerful boating community. The Kraken legend is reborn in this Garmin Force Trolling Motor!

Manufacturer's warranty
- 3 year
- Limited lifetime on shaft
Industry's most powerful trolling motor with 100lbs of thrust
Wireless integration with Garmin Chartplotters
Anchor lock and Multi-Band GPS
Pivot-Style mount for easy installation
Seamless cable integration with Livescope Sonar
In the box:
- Force Kraken Trolling Motor
- Remote
- High-efficiency propeller
- Assembly and mounting hardware
- Stabilizer (included with 90" and 110" only)
- GT56UHD-TR transducer (only with models 010-02573-30, 010-02574-00 010-02573-10)
- Documentation
For use in fresh, brackish, and saltwater
Mount style: Pivot-Style mount
Max thrust:
- 100 lbs per ISO 13342 using high-efficiency propeller at 36 V
- 80 lbs per ISO 13342 using high efficiency propeller at 24 V
Voltage: 24 V or 36 V
Electric steering
Built-in heading sensor
Built-in GPS: Yes (dual frequency GPS)
Water rating: IPX7
Mounting location: Bow
Foot pedal compatible
Battery indicator
Variable speed control: Yes (20 steps)
Lighted direction indicator
Quatix remote control supported
Frequencies supported
- Traditional: High-wide CHIRP (150-240 kHz)
- ClearVü/SideVü: 455 kHz, 800 kHz, 1000 kHz
Transmit power
- Traditional: 350 W
- ClearVü/SideVü: 500 W
Maximum depth
- CHIRP sonar: 800 ft freshwater
- ClearVü: 400 ft.; SideVü: 500 ft.
Depth/Speed/Temperature: Depth and Temperature
Number of pins: 12-pin (orange connector)
Livescope cable integration: Yes (LiveScope transducer and Kraken Mounting Bracket purchases required)
Autopilot
- Route following
- Anchor lock
- Anchor lock jog
- Heading hold
- Cruise control
- Gesture features: manual+, heading hold+, jog+
Foot pedal
- Dimensions: 12" L x 9" W x 4 1/2" H
- Wireless communication
- Power installation: 12V/24V/36V wired or battery powered (2 AA)
- AA battery life: 1 full season
- Water rating: IPX7
- Adjustable pedal resistance
Remote
- Display size: 1.2" (30.2 mm) diameter
- Display resolution: 240 x 240 pixels
- Display type: Color, sunlight-visible, transflective memory-in-pixel (MIP)
- Chartplotter User-Programmable Keys
- Autopilot feature control
- Water rating: IPX7
- Battery life: Typical use with backlight at low, 43 weeks
- Floats
